адаптер ОБД ОБД2 Elm327 V2.1 V1.5 bluetooth OBD2 adapter code reader scan tool OBD-II OBDII OBD-2 → Обява 12153221
адаптер ОБД ОБД2 Elm327 V2.1 V1.5 bluetooth OBD2 adapter code reader scan tool OBD-II OBDII OBD-2
Състояние
Ново
Тип мпс
Автомобили и джипове
Aксесоар
Кодочетци

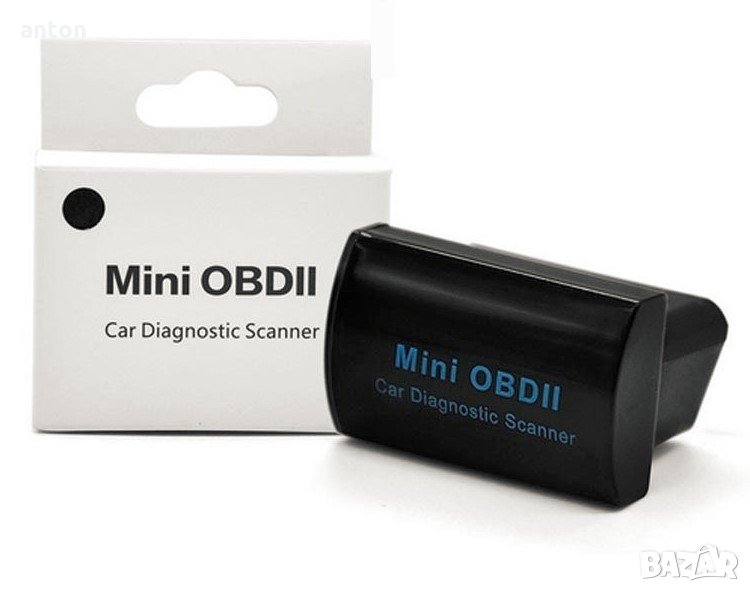

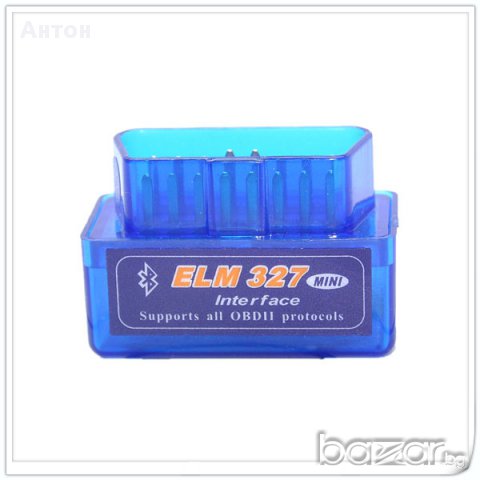

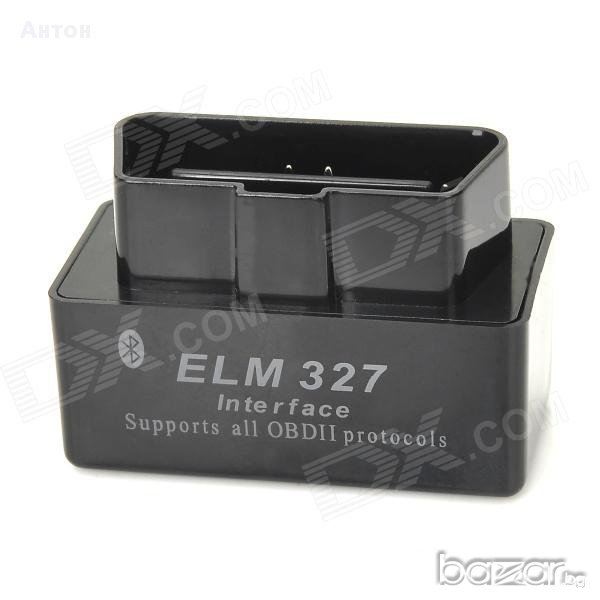

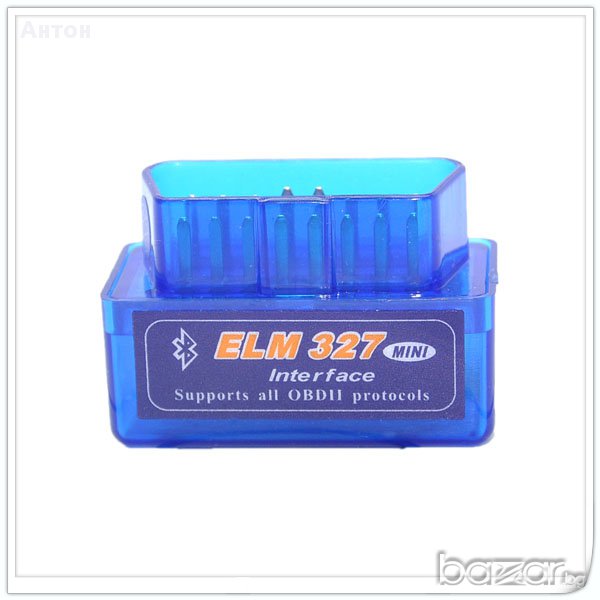

Последен модел V2.1 Obd2 Scanner Elm327 Bluetooth Diagnostic tool Interface Obd-2 блутут диагностика
( Има и от по-старата версия 1.5 )
2017 New Super MINI Bluetooth ELM 327 V2.1 OBD2 / OBDII ELM327 for Android Torque Car Code Scanner
Поддържа OBD-II протокол, wireless, version 2.1
Retrieve fault codes (DTC's) and clear Check Engine Lights.
MULTI-PROTOCOL SUPPORT:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A.SAE J1939 CAN (29bit ID, 250*Kbaud)
B.USER1 CAN (11*bit ID, 125*Kbaud)
C.USER2 CAN (11*bit ID, 50*kbaud)
*default settings (user adjustable)
VEHICLE COVERAGE: Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe) Alfa Romeo/ Ad/ Bentley/ BW/ Cadillac/ Chevrolet/ Chrysl/ Citroen/ Daewoo/ Fiat/ Ford/ GM/ Hod/ Hyundai/ Isuzu/ Jaguar/ Jeep/ Kia/ Land Rover/ Lexus/ Mazda/ Mercury/ Mini/ Nissan/ Mitsubishi/ Opel/ Peugeot/ Posch/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyt/ Vauxhall/ Volvo/ VW For your information: For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. SOFTWARE : Scantool_net113win EasyOBDII V2.2 (Free Version) OBD2Spy Scan Master-ELM wOBDCRAZY Works for Windows98/ME/2000/XP/Vista ">
BLUETOOTH PAIR CODE: 1234
Item Type:
Code Readers & Scan Tools
Brand Name:
OBD 2,ELM 327
Car Maker:
Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden,Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha
Specifications:
Software Update: Yes
Language: English
Model Name: Mini Bluetooth ELM 327 OBDII OBD2
Voltage: 12V
Power: 2~5W
Color: Black, Blue
Item Length: 3.2cm
Item Width: 4.7cm
Item Height: 2.3cm
Item Weight: 21g
Material Type: Plastic embedded with hardware
External Testing Certification: CE
Package:
1 x 2017 New Black MINI Bluetooth ELM327 OBD2/OBDII ELM 327 V2.1 Car Code Scanner
Function:
1. Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure etc.
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Compatible Phones: Android Smartphone
4. Compatible Software: Easy OBD2, ScanMaster ELM, wOBD Crazy and More
5. Processor: ELM327 v2.1
6. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
7. Supported Software Compatible for Windows, OSX, Palm, Pocket-PC, Linux, Android, DOS, and Windows Smartphone
8. Supports OBD2 Protocols (ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2)

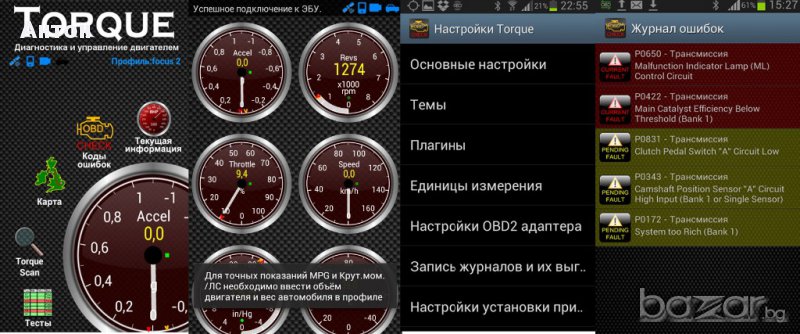

9. Works with Android Torque (Suggested)
10. Works with OBD2 Complaint Vehicles

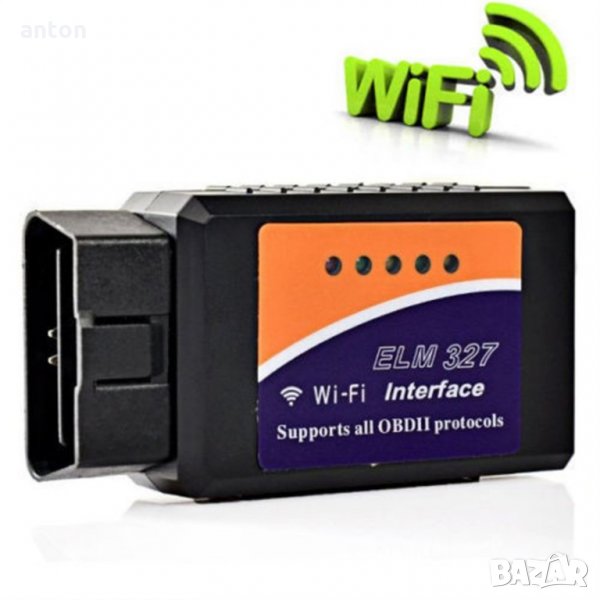

11. WiFi - за iphone ipad - цена 50 лв
Support OBDII Protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
