Продавам дънна платка Intel Server Board S3200SH LC 775 → Обява 21710994

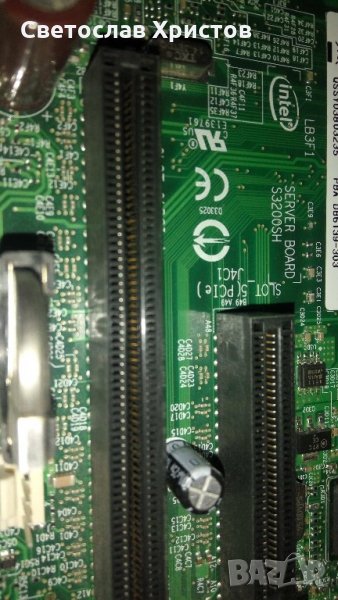

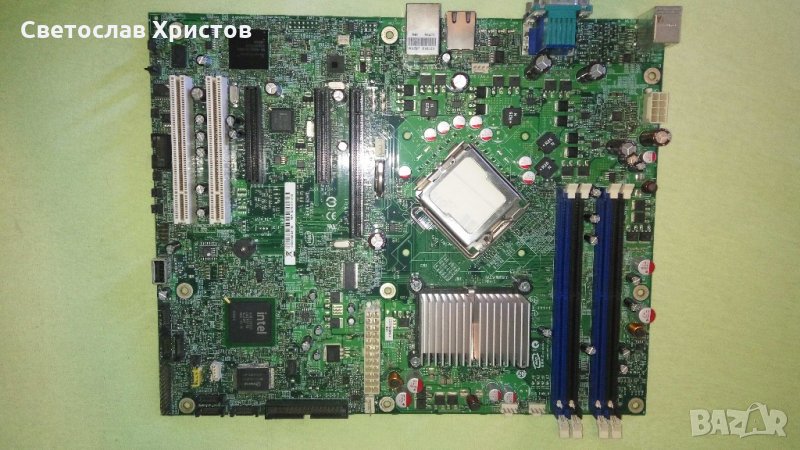

Продавам дънна платка Intel Server Board S3200SH LC 775
Състояние
Използвано
Доставка
Лично предаване; Купувача
Марка
Други
Продавам дънна платка Intel Server Board S3200SH LC
Всяко дъно е с ъпдейтнат до последна версия биос и изрядна батерия.
Цената е крайна и не се коментира.
Договорка на цената само при закупуването на по-гоямо количество артикули.
Бартери не ме интересуват.
При закупуване на допълнителен компонент като: памет/видео карта/хард диск/аудио карта, получавате още 5% отстъпка от общата крайна цена.
www.intel.com/content/dam/support/us/en/documents/motherboards/server/s3200sh/sb/e14960009_s3210sh_tps_r1_8.pdf
Server Board Feature Set
All board SKUs are based on the Intel
3200/3210 Chipset
Supports processors in LGA775 package
800/1066/1333 MHz Front Side Bus (FSB) speed
Four DDR2 667/800MHz unbuffered DIMM memory sockets with or without ECC
Supports the Intel
ICH9R I/O Controller, interfaced with MCH via DMI
LC board SKU supports following I/O slots:
One PCI Express x16 connector to be us
ed as a x16 link from chipset (If a VGA
adapter is inserted into this slot, the VGA card only works at PCI Express x1
speed; this is a chipset limitation.)
One PCI Express x8 connector to be us
ed as a PCI Express x8 link from the
chipset
One PCI Express x8 connector routed to PCI Express x4 bus from the ICH9R
Two PCI 5 V, 32-bit, 33 MHz connectors
On-board ServerEngines LLC Pilot II controller (Integrated BMC) supports the following
functions:
Integrated 2-D video controller on PCI Express x1
Super I/O on LPC
Baseboard Management Controller (BMC) based on ARM946E-S
Winbond PC8374L super I/O chip interfaced to the Intel
ICH9R through LPC supports
the following:
PS/2keyboard/mouse
Floppy disk drive (FDD)
Six SATA II connectors
Five USB 2.0 ports: two ports on USB/LAN combo connectors at the rear of the server
board, two ports via on-board headers, and one port on an internal vertical connector
Two Gigabit (Gbit) Ethernet devices interfaced to the Intel
ICH9R to support two rear
panel RJ-45 connectors with integrated magnetics; one is through PCI Express x1, the
other one is through PCI32
ACPI
System monitoring (temperature, voltage, and fans)
VRD11 for processor
The server board supports the following feature set:
Processor and FSB support
SupportsIntel Xeon processor 3000/3100/3200/3300 series.
3200/3210 Memory Controller Hub (MCH)
Intel ICH9R I/O Controller
Intel 6702 PXH-V PCI-X Hub (LX board SKU only)
MemorySystem
Four DIMM sockets supporting DDR2 667/800MHz DIMMs
Support for up to two DDR2 channels for a total of four DIMMs
up to 8 GB max memory
I/OSubsystem
ServerEngines Integrated BMC
External 32 MB (or greater) DDR2 533 MHz memory
VGA Video external connector
Peripheral Interface (PCI Express and PCI)
One PCI Express
x16 and one PCI Express x8 slot,
connected to the PCI Express ports of the MCH;
one PCI Express x8
slot, connected to PCI Express x4 interface of the ICH
HDD Interface
Six SATA II ports, 300 MB/s
USB
Two USB 2.0 ports connected to the server rear panel
Two USB 2.0 ports connected to headers on the server board
One USB 2.0 port connected to an internal vertical connector
LAN
One Gigabit Ethernet device (82541PI, MAC + PHY) connect to PCI interfaces
on the Intel
ICH9R
One Gigabit Ethernet PHY (82566DM) connected to the Intel
ICH9R through
GLC/LCI interface (not in V board SKU)
Two 10/100/1000 Base-TX interfaces through RJ-45 connectors with integrated
magnetics
Link and speed LEDs on the RJ-45 connector
PowerSupply
SSI EEB (Server System Infrastructure Electronic Bay) Power Connectors
On-board Power generation
VRD 11 processor core voltage
1.2 V regulator for FSB VTT
1.25 V regulator for MCH core and I/Osf
1.05 V regulator for ICH9R core
1.5 V regulator for the ICH9R I/O
1.8 V for DDR2 and 0.9 V for DDR2 termination
3.3 V SB voltage regulator
1.8 V AUX, 1.2 V AUX, and 0.9 V AUX for Integrated BMC and the DDR2
memory supporting it
SystemManagement
Processor on die temperature monitoring through PECI (Platform Environment
Control Interface)
Board temperature measurement
Fan speed monitoring and control
Voltagemonitoring
IPMI-based (Intelligent Platform
Management Interface) server management
LegacyInterfaces
Serial
Floppy
PS/2keyboard
PS/2mouse
PowerManagement
Six-layerPCB
FormFactor
ATX 2.0, 12-inches x 9.6-inches, 1U thermally optimized, and SSI TEB Rev 2.11 compatible.
