Продавам 5.1 канална аудио карта на PCI - C-Media Cmi 8738/pci-6ch-mx → Обява 24288447

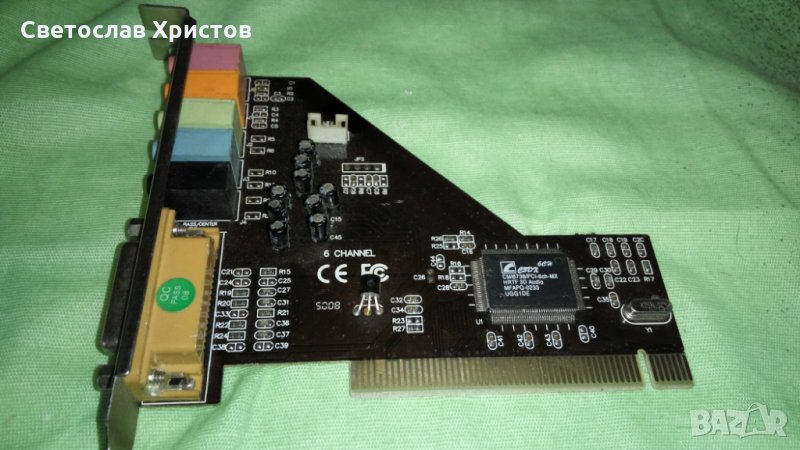

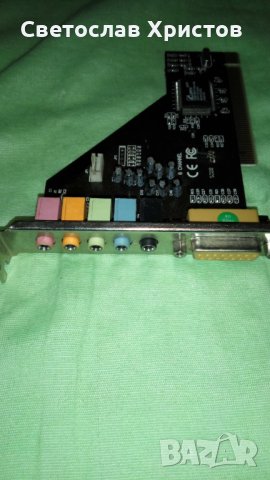

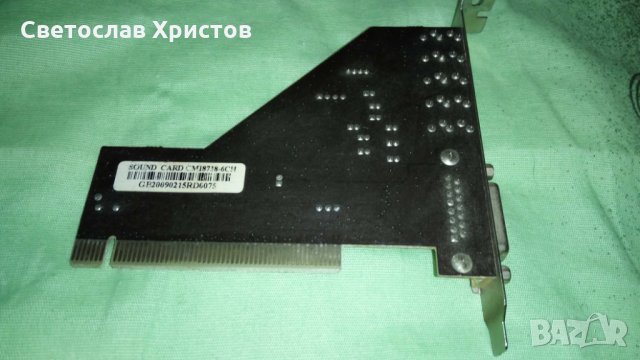

Продавам 5.1 канална аудио карта на PCI - C-Media Cmi 8738/pci-6ch-mx
Състояние
Използвано
Доставка
Лично предаване; Купувача
Марка
Други
Продавам 5.1 канална аудио карта на PCI
C-Media Cmi 8738/pci-6ch-mx
NTRODUCTION
With high-speed PCI V2.1 bus controller and built-in codec, CMI8738 is a highly-integrated world-only single audio chip designed for PC add-in sound cards and motherboard audio. CMI8738 series chips have been the most widely adopted cost-effective PCI audio chips in the world.
CMI-8738 supports the legacy audio – SBPRO, FM emulator, MIDI MPU-401 port. 8738-SX supports 4-channel 16-bit DACs to provide surround audio. 8738-LX or MX supports 6-channel DACs for 5.1 home theater environments and meet PC99 audio performance requirements. CMI8738-MX also provides S/PDIF digital audio interface I/O for 44.1KHz and 48KHz LPCM audio.
On the software side, CMI-8738 supports Cmedia Xear Living and Cmedia Xear Voice with Windows Drivers. Linux driver is also available in most Linux OS versions. .
Being outstanding for its full audio functions and comprehensive driver support, CMI-8738 series are the best choices for people seeking for optimum cost-effective entry-level solutions of the PC audio.
PRODUCT FEATURES
World only single chip solution with embedded codec saving customer total BOM cost
32-bit PCI 2.1 compatible bus master.
8738-LX/MX supports 6CH DAC 5.1 surround output for movies and 3D games.
8738-MX provides additional digital interface S/PDIF IN/OUT (44.1K and 48KHz).
Built-in 32ohm earphone buffer.
Built-in 2CH 16bit ADC.
Supports full-duplex 44.1K/48KHz sample rate playback and recording at 16bit.
Supports analog mixer for Line-in, Mic-in, Aux, CD inputs.
Built-in Microphone pre-amplifier (+20dB).
MIDI MPU-401 port/ game port.
Built-in ZV port.
Legacy audio SBPRO compatible.
External E2PROM interface for custom Sub-VID/PID.
Digital power +3.3V, analog power +5V.
Industrial 128-pin QFP package
