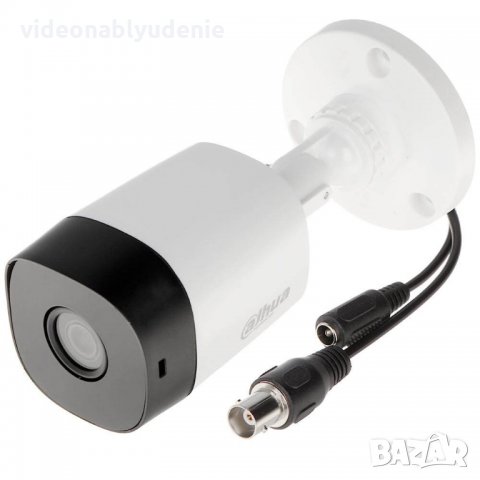

DAHUA HAC-B2A21-0360 Метална Водоустойчива 2MP 4в1 HDCVI, AHD, HDTVI, CVBS, 960Н IP67 -40°С до +60°С
2 мегапикселова 4 в 1 водоустойчива камера, превключване: HDCVI, AHD, HDTVI или аналогов режим, Day&Night 1/2.7” CMOS сензор, 1920×1080 ефективни пиксела, 25 кад/сек некомпресиран сигнал, обектив 3.6мм, хоризонтален ъгъл на видимост 93°, интелигентно инфрачервено осветление до 20м, механичен IR филтър, 0.04 Lux в цветен режим, 0 Lux (IR on), 2D-DNR, HLC, BLC, DWDR, екранно меню, метален корпус, за външен монтаж, IP67 oт -40°С до +60°С, 12VDC, 2.7W.

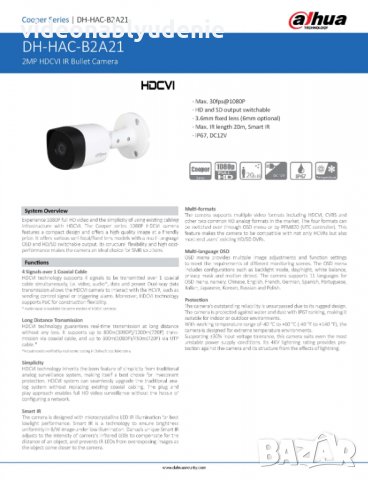

DAHUA DH-HAC-B2A21 2MPx DWDR AGC 4 in 1 HDCVI, AHD, HDTVI, CVBS Aluminium Construction Casing IP67 Waterproof & Vandal Resistance 4KV Lightning & Ingress Protection -40°С~+60°С
Protection: The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

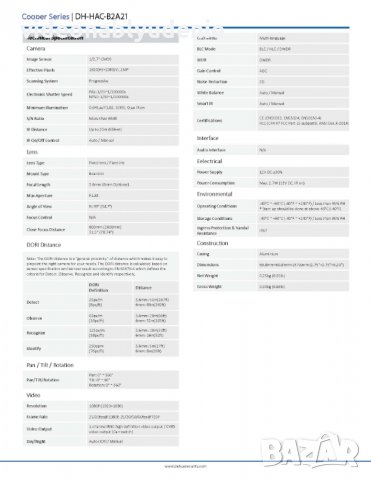

Camera Image Sensor: 1/2.7" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed; PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 20 meter (66feet)
IR On/Off Control: Auto / Manual
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Max Aperture: F1.85
Angle of View: H: 93°
Close Focus Distance: 800mm
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output (Can switch)
Day/Night :Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Elelectrical Power Supply: 12V DC ±30%
Power Consumption: Max. 2.7W (12V DC, IR on)
Environmental Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance: IP67
Construction Casing: Aluminium

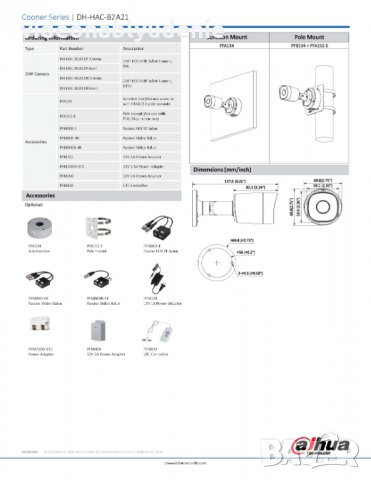

Dimensions: 69.8mm×69.8mm×157.6mm (2.75"×2.75"×6.20")
Net Weight: 0.25kg (0.55lb)
Gross Weight: 0.30kg (0.66lb)
