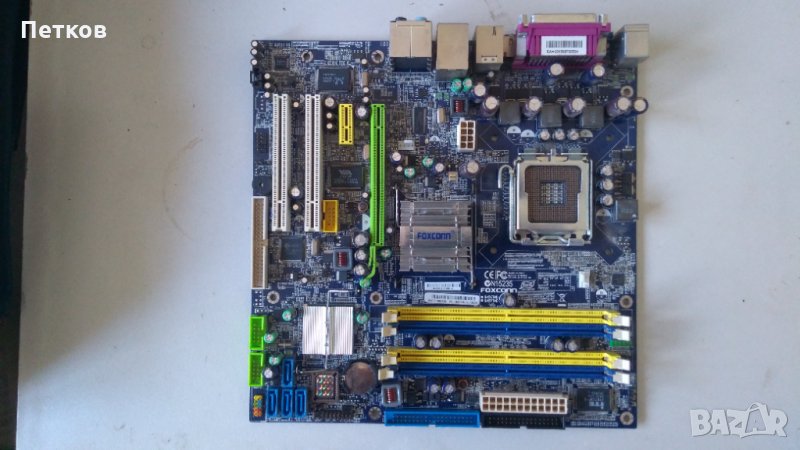

*дънна платка Foxconn 2A8C DDR3 1333Hz /с задна планка/ с процесор Intel pentium Intel® Pentium® P → Обява 30869590

дънна платка Foxconn 2A8C DDR3 1333Hz /има задна планка/ с процесор Intel pentium Intel® Pentium® Processor E5800 dual core 3.2Ghz

Изпращам по Еконт с преглед и тест.

CPU Processor
Support Socket LGA775. (95Watt Max). Intel Core 2 Quad, Core 2 Duo, Pentium Dual Core, Celeron Dual Core, Celeron.

Pntium Dual-Core E5300, E5400, E5700, E6300, E6500

FSB 1333/1066/800 MHz

Socket Type LGA 775

Chipset * North Bridge – G41

* South Bridge – ICH7

Integrated Graphics Intel GMA x4500

Memory 2 * 240-pin DDR3 DIMM slots Supports Dual Channel DDR3

1333/1066 MHz non-ECC , un-buffered memory (Max 4GB) – (Max of 2GB per slot)

Expansion Slots 1 * PCI Express Mini (half height)

2 * PCI Express x1

1 * PCI Express x16

1 * PCI

Storage 4 * SATAII 3Gb/s connectors

Supports HDDs, Internal Solid State
Drive (SSD)

Audio Realtek ALC662 – High Definition

Ethernet Realtek RTL8103EL – 10/100Mb/s

Super I/O Fintek F71882FG

Rear Panel 1 * Audio I/O

1 * VGA Port

1 * RJ45 LAN Port

4 * USB 2.0 ports

Internal 1 * 4-pin CPU Fan connector

1 * 3-pin SYS Rear Fan connector

1 * 4-pin ATX 12V Power connector

1 * 24-pin ATX Power connector

1 * Front Audio header

1 * Front Panel header

2 * USB 2.0 headers

BIOS

Dimension Micro-ATX: (9.6 x 9.6 inches)

Foxconn N15235 Support: Win7, Vista/Xp

Specifications:

Manufacturer: Foxconn, Model: N 15235

Processor: Intel Core2 Quad, Core2

Duo, Pentium Dual-Core, Celeron Dual-core, Celeron Processors, Socket T
(LGA775) Supports Intel 45nm Multi-Core Processors

Chipset: Intel G31 + ICH7

Front Side Bus:

1600(OC**)/1333/1066/800/533(**)MHz (FSB)

Memory: Dual Channel DDR2

800/667/533 x 2 DIMMs, Max. 4GB

Graphics: Integrated

Expansion Slots: 1 x PCIe x16, 1 x

PCIe x1, 2 x PCI

IDE: ATA 100 x 1

Serial ATA (SATA)/RAID: SATAII x 3

Audio: 5.1 channel Audio, Realtek

ALC662

LAN: 10/100M LAN, Realtek RTL8101E

Back Panel I/O Ports:

1x PS/2 Keyboard Port

1x PS/2 Mouse Port

1x Parallel Port

1x Serial Port

1x VGA Port

4x USB 2.0 Ports

1x 10/100M LAN Port

3x 5.1 Channel Audio Jacks

Internal I/O Connectors:

1x ATX 24-Pin Power Connector

1x 4-Pin ATX 12V Power Connector

2x 4-Pin CPU/System Fan Connectors

1x CD-in Connector

1x Front Audio Header

1x ATA100 Connector

1x Floppy Connector

1x CIR Header

1x Front Panel Connector

2x USB 2.0 Connectors Support

Additional 4 Ports

3x SATAII Connectors

1x TPM Header

1x S/PDIF Out Header

1x Speaker Header

1x Intrusion Alarm Header

BIOS Features: 8Mb flash EEPROM w/

LAN boot PnP, ACPI, WfM, DMI

Form Factor: Micro ATX (9.6” x 8.0”)
