ANIMABG 4K full HD HDMI видео рекордер → Обява 31982409

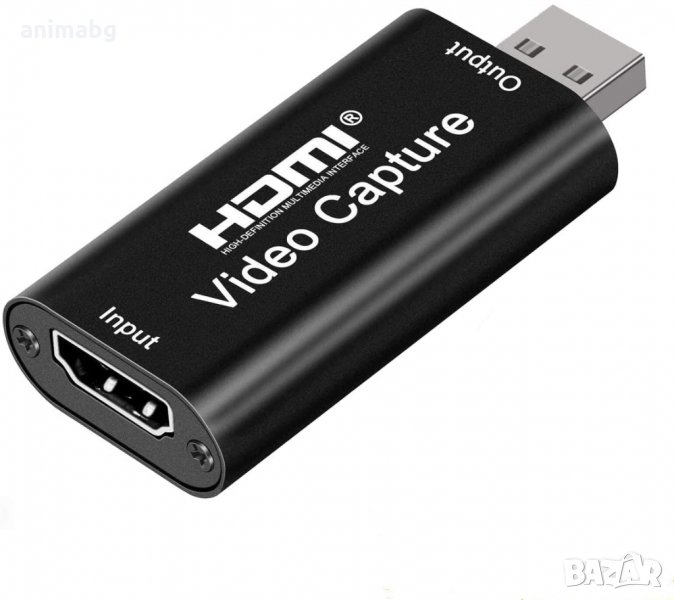

ANIMABG 4K full HD HDMI видео рекордер
гр. Шумен Наблюдавай

Публикувана/обновена на 23 август в 14:35 ч.

Състояние
Ново
Доставка
Купувача
ЗА ПОВЕЧЕ ИНФОРМАЦИЯ И ОЩЕ ИНТЕРЕСНИ СТОКИ МОЛЯ ПОСЕТЕТЕ НАШИЯ САЙТ

Всички цени са с включено ДДС.
При нужда издаваме данъчни фактури.
Разполагаме с голяма стокова наличност.

Description:

Video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smartphones for preview and storage. Suitable for high definition acquisition, educational recording, medical imagery, etc.

Feature:

* Maximum support input resolution 3840 × 2160 30Hz;

* Support maximum output resolution 1920 × 1080 30Hz;

* Support 8/10 / 12bit deep color;

* Support for standard HDMI AWG26 cable: input up to 15 meters, (1080P resolution and lower);

* Supports most acquisition software, such as VLC, OBS, Amcap, etc.

* Support for Windows, Android and MacOS;

* Compliant with USB video and UVC standard;

* Compliant with USB audio for UAC standard;

* Without external, compact and portable power supply.

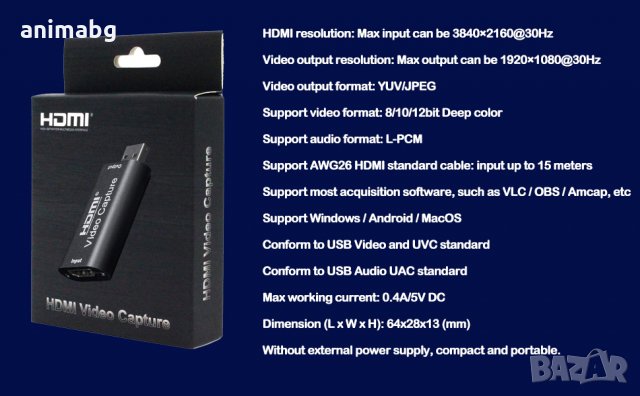

Specifications:

Specifications:

HDMI resolution: maximum input can be 3840 × 2160 30Hz

Support video format: 8/10 / 12bit deep color

Video output format: YUV, JPEG

Video output resolution: maximum output can be 1920 × 1080 30Hz

Audio format support: L-PCM

Input cable distance: ≤ 15m, standard AWG26 HDMI cable

Maximum working current: 0.4A / 5VDC

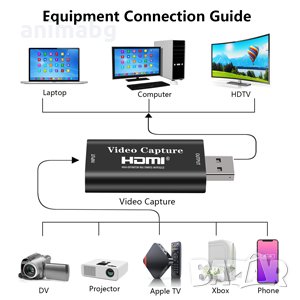

Connection and Operation

1: connect the UHD signal source to the HDMI input of the video capture with

An HDMI cable.

2: connect the computer to the usb port of the video capture with a usb cable.

3: operating steps for USB video capture (OBS): open the software & rarr; Choose the sources of

"Video capture device" & rarr; Set image size & rarr; Choose "Studio Mode" (double window)

& Rarr; Choose "start recording".

Operation Example as below

1. Add new sources, choose "Nsendato Video Capture device"

Package Included:

1 * capture card

Notes:

Computer hardware system requirements

CPU: PC i5-3400 or higher; NB i7-3537U 2.0GHZ or more

Graphics card: NVIDIA GT630 PC or higher; NC NVIDIA GT735M or higher

Execution memory: RAM 4G
