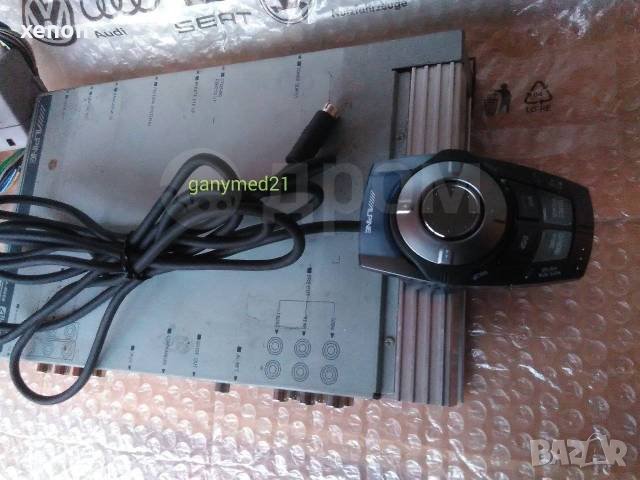

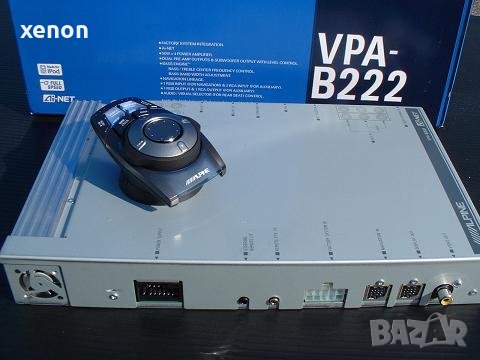

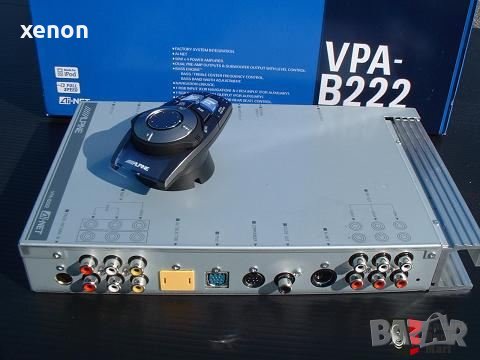

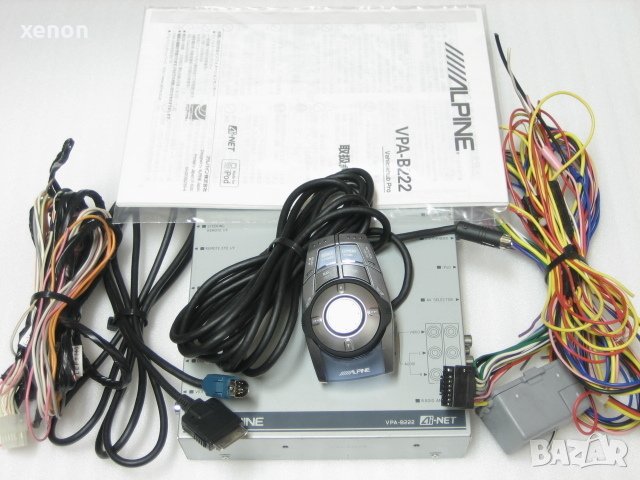

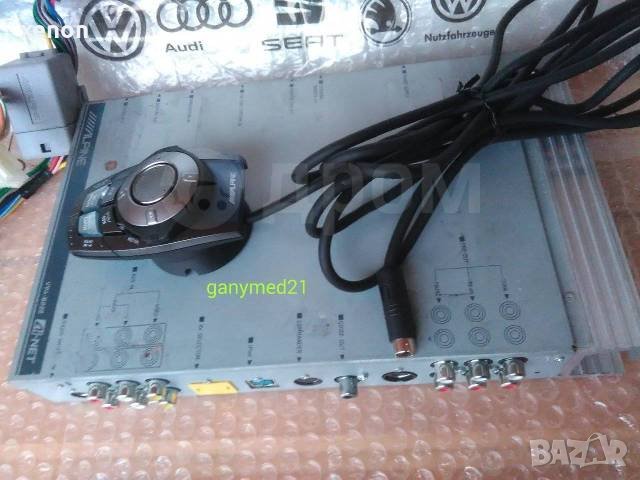

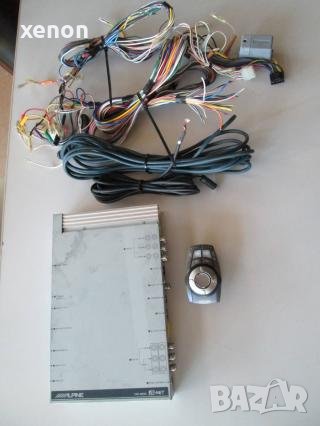

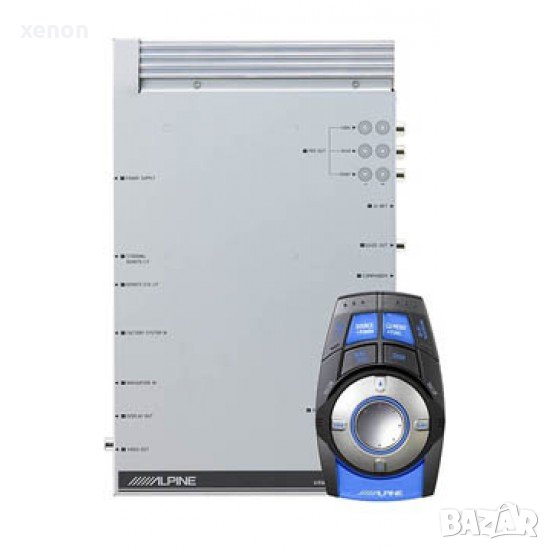

Alpine VPA-B222 Vehicle Hub Pro AV Switch/Tuner/Selector/Crossover → Обява 34548896

Key Features:

AM/FM Radio Tuner Features:

• HD Radio Ready

• Preset Stations (FM:12/AM:6)

• Auto Memory

• Local/DX Selection

• Preset Address Indicator

• Up/Down Seek

• FM Tuner Specifications:

  • Tuning Range: 87.7-107.9 MHz

  • Mono Usable Sensitivity: 9.3dBf (0.8 JV/75 ohms)

  • 50dB Quieting Sensitivity: 13.5dBf (1.3 JV/75 ohms)

  • Alternate Channel Selectivity: 80.0 dB

  • Signal-to-Noise (S/N): 80.0 dB

  • Stereo Separation: 45.0 dB

  • Capture Ratio: 2.0 dB

• AM Tuner Specifications:

  • Tuning Range: 530-1, 710kHz

  • Usable Sensitivity (IEC Standard): 22.5/27.0 (μV/dBf)


SAT Radio Ready Features:

• Sirius and XM Satellite Radio Compatible

• Preset Memory, 3-Bands (18 Channels)

• QuickSearch Function

• Category Search

• Text Scroll


Full Speed Connection for iPod:

• Dedicated iPod Source Selection

• Direct search function

• Repeat One

• Search Mode Selection (Playlist, Artist, Album, Song Title)

• Shuffle (Albums, All)


CD Changer Control Features:

• Repeat (One/Disc)

• Music Sensor Up/Down

• Forward/Backward

• Disc Play/Pause

• Elapse Time Display

• CD Text Display/Scroll

• MP3 Text Information Display (ID3 Tag)

• Multi-CD Changer Control (with KCA-410C)

• MP3 Changer Ready (CHA-S634)

• M.I.X. One/All (Random Play One or All)


Bass Engine® Sound Tuning:

• Subwoofer Level Adjustment

• Bass Center Frequency Control

• Bass Width Adjustment

• Bass Level Adjustment

• Treble Center Frequency Control

• Treble Level Adjustment

• Bass Engine Sound Tuning Specifications:

  • Subwoofer Level Adjustment Range: -15dB to 0dB (1dB steps)

  • Loudness Control at 100Hz (Max): ±10dB

  • Bass Center Frequency : 60Hz, 80Hz, 100Hz, 120Hz

  • Bass Band Width Adjustment (Q): 4 choices (1 =wide, 4 =narrow)

  • Bass Level Control Range: +20dB to -14dB at 60Hz (2dB Steps)

  • Treble Center Frequency : 7.5kHz, 10.0kHz, 12.5kHz, 15.0kHz

  • Treble Level Control Range: +-14dB at 10.0kHz (2dB Steps)


General Features:

• 2 Aux A/V Inputs and 1Aux V Out (3 AUX A/V Inputs, 2 Aux Out with Optional VPE-V431)

• Full Speed Control

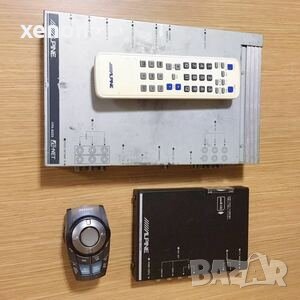

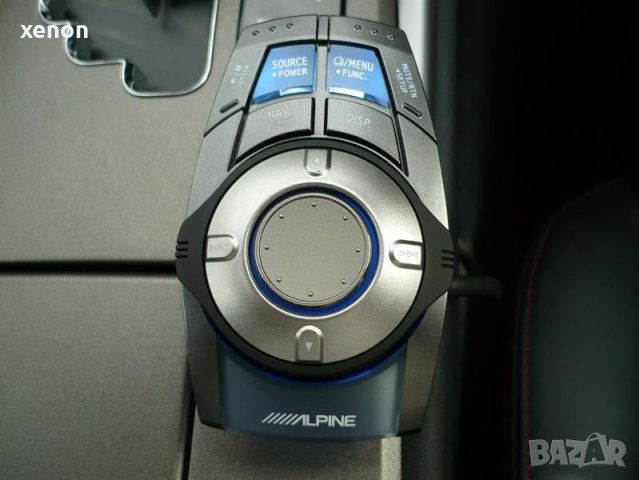

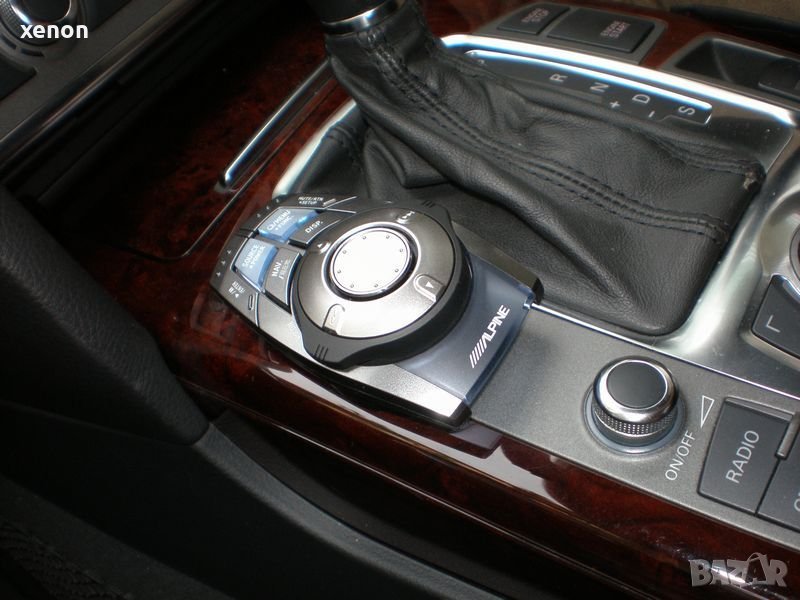

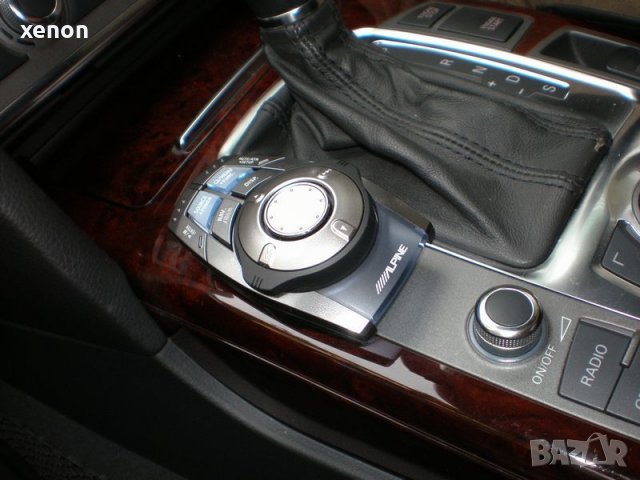

• Remote Control Included

• 50W x 4 High Power Amplifier

• 3 PreOuts (2V)

• 3-Mode Visual Enhancer / Spectrum Analyzer (with Optional VPE-V431)

• Bass Engine

• Subwoofer Level Control

• Bass Center Frequency Control

• Bass Band Width Adjustment

• Treble Center Frequency Control

• OEM Steering Remote Ready

• MM Driver Ready (Hard Disc Drive Ready)

• Separate Bass & Treble Control

• Fader & Balance Controls

• Loudness

• Clock

• Dimmer-on Input

• Dedicated Navigation Input

• Navigation Audio Mix

• Power Antenna Lead

• Remote-on Lead

• Audio Interrupt In

• Demo Function

• Audio Mute

• CD Changer Control Function

• Limited Non-Refundable 30 Days Return Policy

• General Specifications:

  • Chassis Size (W x H x D) mm: 275mm x 40mm x 170mm

  • Power Requirement: 14.4 (11-16)V.DC

  • Max Power Output: 50W x 4

  • CEA-2006 Power Rating ([email protected] V =1% THD+N), S/N 80dBA (Ref: 1W into 4Ohm): 18W x 4

  • Pre Output Voltage (Before Clipping): 2V
