Професионална звукова карта Asus Xonar Essence ST, PCI → Обява 38131235

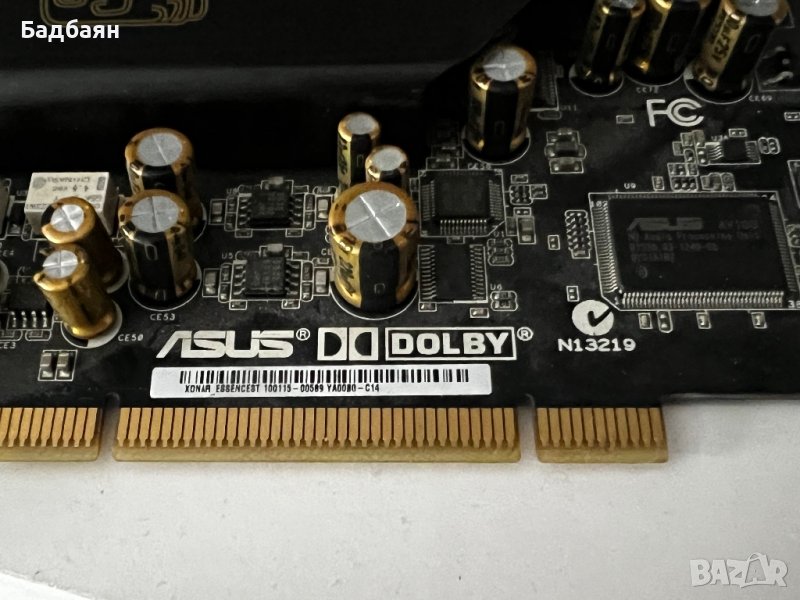

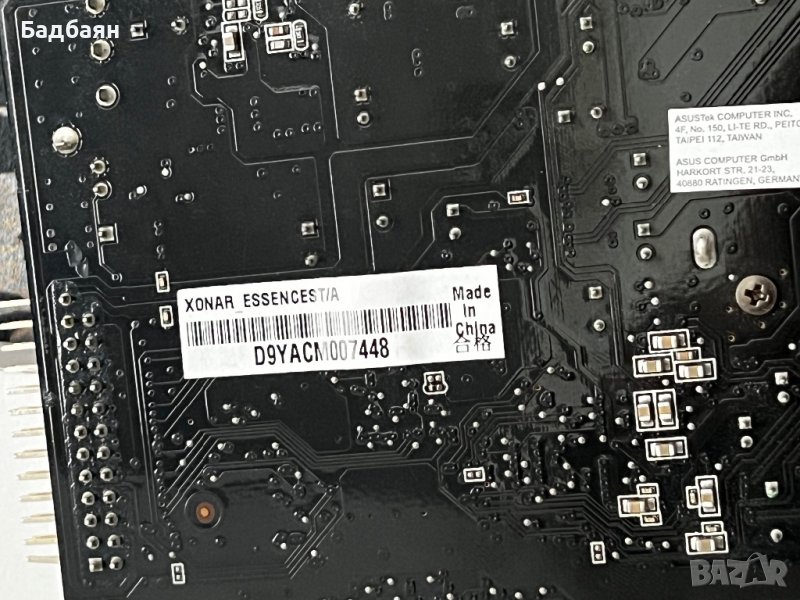

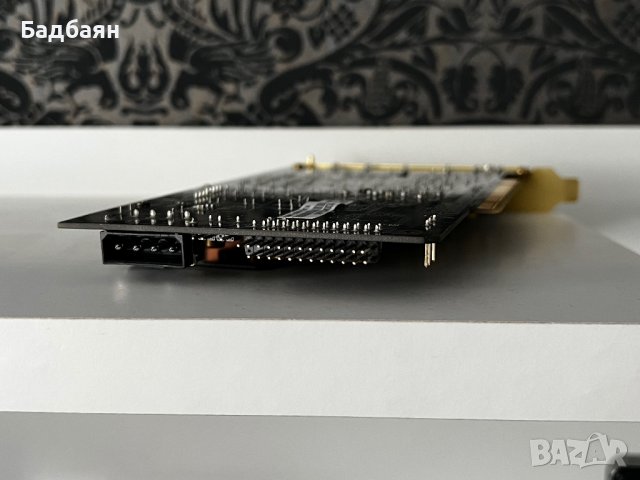

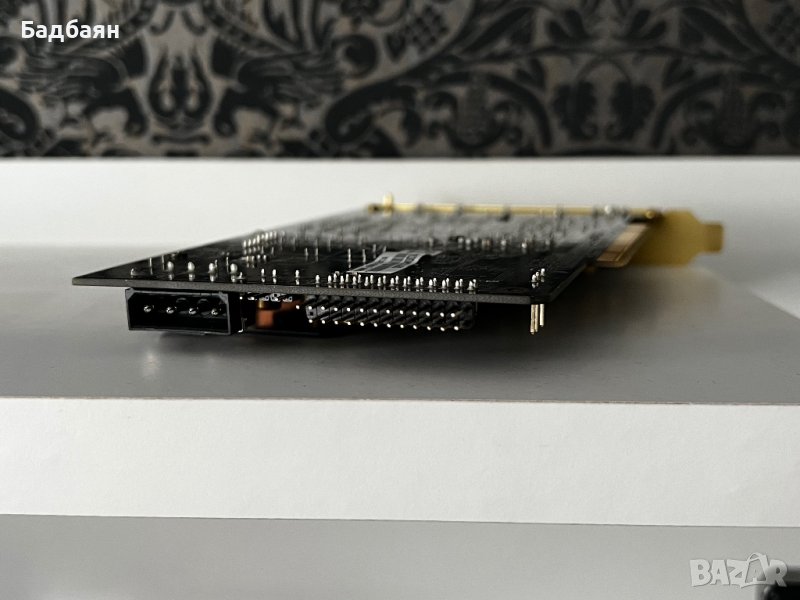

Asus Xonar Essence ST, PCI

Asus Xonar Essence ST PCI звукова карта
Audio Performance Output Signal-to-Noise Ratio (A-Weighted):
124dB for Front-out,117dB for Headphone-out (600ohms) dB
Input Signal-to-Noise Ratio (A-Weighted):
118 dB
Output THD+N at 1kHz:
0.0003% (-110dB) for Front-out, 0.001% (-100dB) for Headphone-out
Input THD+N at 1kHz:
0.0002% (-113dB) for Line-in
Frequency Response (-3dB, 24-bit/192kHz input):
<10Hz to 90KHz
Output/Input Full-Scale Voltage
2 Vrms (5.65 Vp-p)

Bus Compatibility PCI:
PCI v2.2 or above bus compatible

Main Chipset Audio Processor:
ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)
24-bit D-A Converter of Digital Sources:
Texas Instruments PCM1792A*1 for Front-Out (127dB SNR, Max. 192kHz/24bit)
24-bit A-D Converter for Analog Inputs:
Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit)
High Fidelity Headphone Amplifier:
Texas Instruments 6120A2*1 (120dB SNR, 100dB THD+N @ Vcc12V, RL=600?, f=1kHz)
Sample Rate and Resolution Analog Playback Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
Analog Recording Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
S/PDIF Digital Output:
4.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital
ASIO 2.0 Driver Support:
Supports 44.1K/48K/96K/192KHz @16/24bit with very low latency

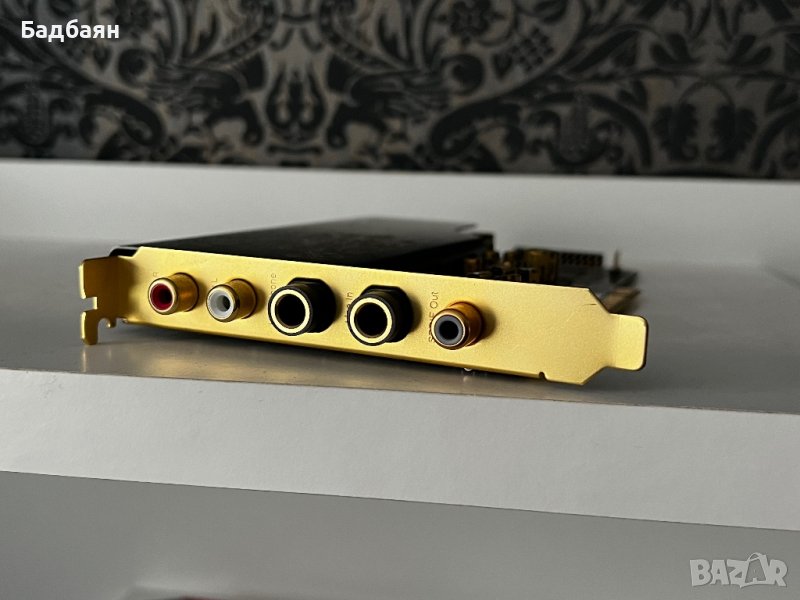

I/O Ports Analog Output Jack:
RCA jack *2 (Front R / Front L), 6.30mm jack*1 (Headphone out)
Analog Input Jack:
6.30mm jack *1 (Shared by Line-In/Mic-In)
Other line-level analog input (for CD-IN/TV Tuner):
ux-In (4-pin header on the card)
Digital S/PDIF Output:
High-bandwidth Coaxial/TOS-Link combo port supports 192KHz/24bit
Front-Panel Header:
Shared by Headphone out / 2 channels out /
Microphone in
S/PDIF Header:
Connects to compatiable graphic cards for HDMI output
Driver Features Operation System:
Windows 7/Vista/XP(32/64bit)/MCE2005
Dolby Technologies:
Dolby Digital Live
Dolby Digital Live encodes any audio signal on PC in real-time to Dolby Digital (AC3) 5.1 surround sounds to your home theater environment through one single S/PDIF connection
Dolby Headphone
Dolby Headphone technology allows users to listen to music, watch movies, or play games with the dramatic 5.1-channel surround or realistic 3D spacious effects through any set of stereo headphones.
Dolby Virtual Speaker
Dolby Virtual Speaker technology simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers.
Dolby Pro-Logic II
Dolby Pro-Logic II is the well-known technology to process any native stereo or 5.1-channel audio into up to 6.1 channel output, creating a seamless, natural surround soundfield.
Smart Volume Normalizer:
Smart Volume Normalizer
Normalizes the volume of all audio sources into a constant level and also enhances your 3D sound listening range and advantages in gaming
Xear 3D Virtual Speaker Shifter:
Virtual 7.1 speaker positioning
Karaoke Functions:
Music Key-Shifting and Microphone Echo effects like professional Karaoke machine
FlexBass:
Professional Bass Management/Enhancement system
3D Sound Engines/APIs:
Vista: DirectSound3D GX 2.5, DirectSound HW, DirectSound SW, A3D1.0, OpenAL generic modes, 128 3D sounds processing capability
XP: DirectSound2.5 SW, A3D1.0, OpenAL generic modes, 128 3D sounds processing capability
VocalFX:
the latest vocal effect technologies for gaming and VoIP, including: -VoiceEX: produces vivid environmental reverberation for your voice in EAX games -ChatEX: emulates different background environment effects when you chat online -Magic Voice: changes your voice pitch to different types (Monster/Cartoon) for disguising your real voice or just for fun in online chatting
Accessories 1 x S/PDIF optical adaptors
