Продавам дънна платка P5QL PRO сокет 775 → Обява 45980220
Продавам дънна платка P5QL PRO сокет 775
Състояние
Използвано
Доставка
Лично предаване; Купувача
Марка
ASUS

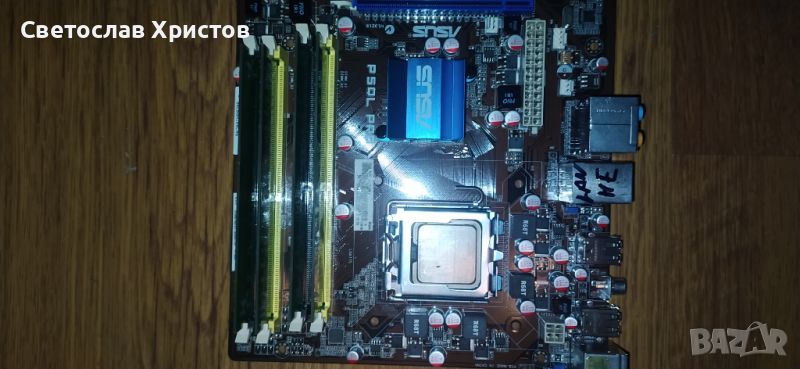

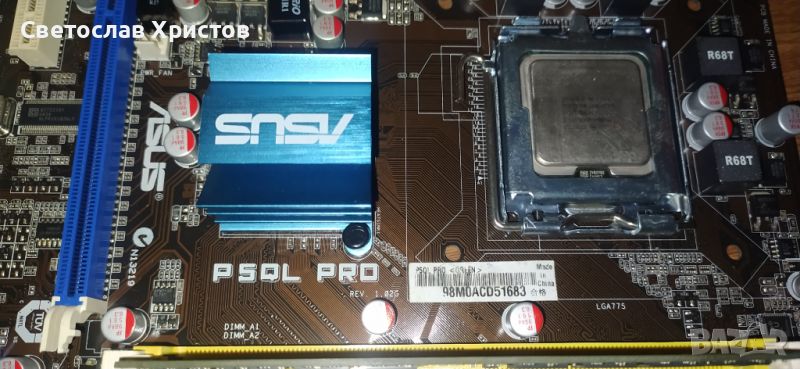

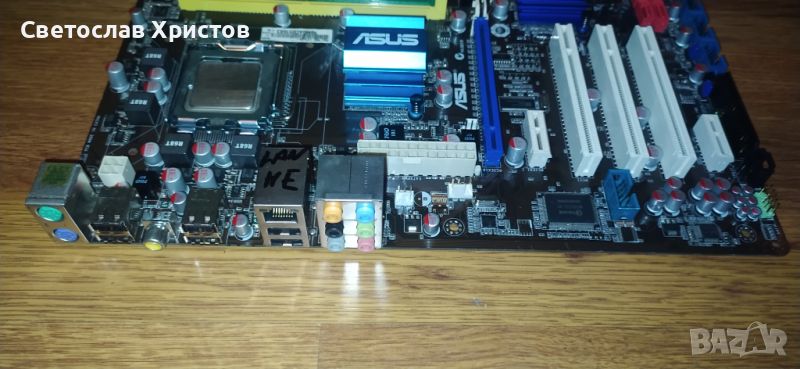

Продавам дънна платка P5QL PRO сокет 775
Дъното е в перфектно състояние но с неработеща вградена LAN карта, поради което с него давам външна такава. Биос ъпдейтнат до последна версия и нова батерия.
Лично предаване за София, за старната пращам с Еконт (преглед и тест).
P5QL PRO
* Intel LGA775 Platform
* Intel® P43 chipset
* ASUS EPU -4 Engine
* ASUS Express Gate
* 100% Japan-made high-quality Conductive Polymer Capacitors
* VRD11.1 CPU support (backward support VRD10.X CPU)
Specifications
CPU
Intel® Socket 775 Intel® Core™2 Extreme/Core™2 Quad/Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm Multi-Core CPU
Chipset
Intel® P43 / ICH10 with Intel® Fast Memory Access Technology
Front Side Bus
1600*/1333/1066/800 MHz *Overclock speed
Memory
4 x DIMM, Max. 16 GB, DDR2 1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to
www.asus.com
or this user manual for the Memory QVL(Qualified Vendors Lidts).
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe x1
3 x PCI
Storage
Southbridge
6 xSATA 3 Gb/s ports
Marvell 88SE6102
1 x UltraDMA 133/100/66 for up to 2 PATA devices
LAN
PCIe Gigabit LAN controller featuring AI NET2
Audio
Realtek ALC1200 8 -Channel High-Definition Audio CODEC
DTS Surround Sensation Ultra PC
- Support Jack Detection and Multi-streaming
- Coaxial S/PDIF out ports at back I/O
- ASUS Noise Filter
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features
ASUS Power Saving Solution:
- ASUS EPU- 4 Engine
- ASUS AI Nap
ASUS AI Life Features:
- ASUS Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS Q-Connector
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
Intelligent overclocking tools:
- ASUS AI Booster utility
Precision Tweaker:
- vCore: Adjustable CPU voltage at 6.25mV increment
- vDIMM: 5-step DRAM voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 667MHz up to 1333MHz for DDR2
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo 2
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Coaxial)
1 x RJ45 port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
