SONY ST-A35L аналогов тунер
→ Обява 48305325
Доставка
Лично предаване; Купувача
работи отлично
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Superhet with RF-stage; ZF/IF 450/10700 kHz
Wave bands
Broadcast, Long Wave and FM or UHF.
Details
Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: FM Stereo / FM-AM Tuner ST-A35L - Sony Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 80 x 345 mm / 16.9 x 3.1 x 13.6 inch
Notes
Shop Ham Radios

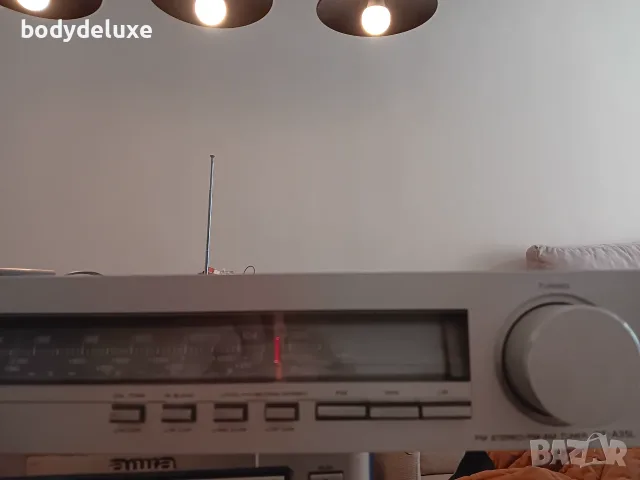

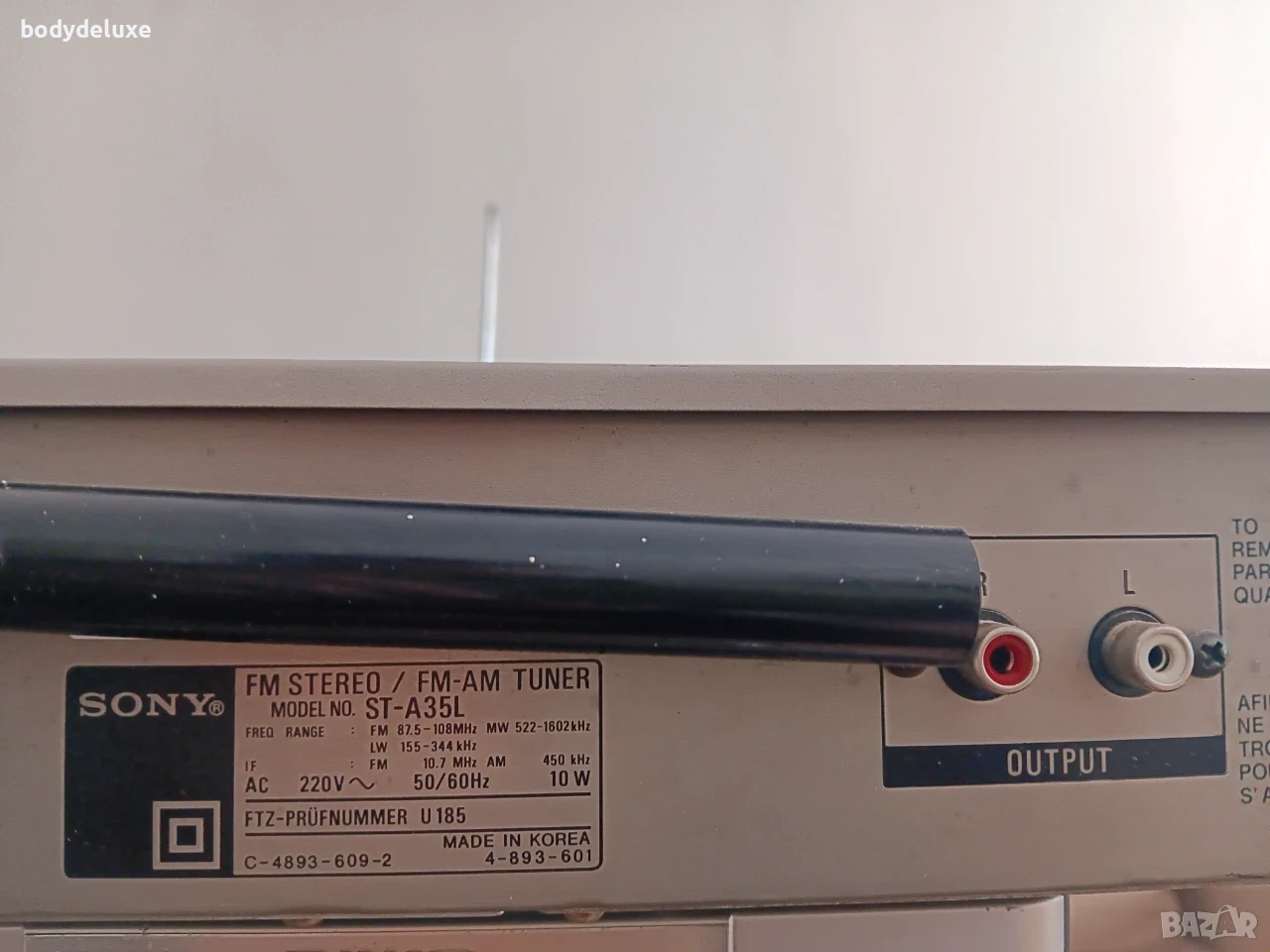

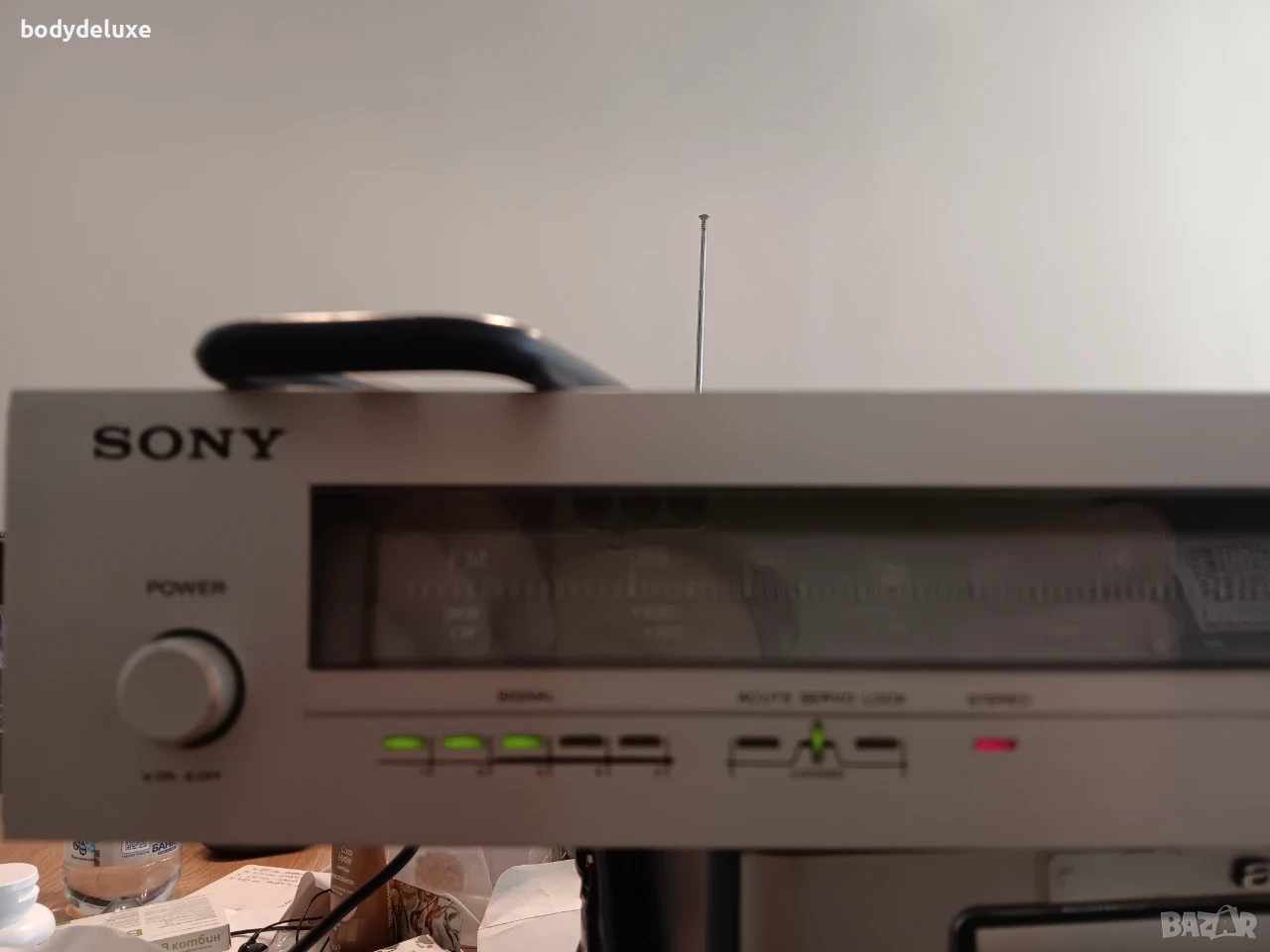

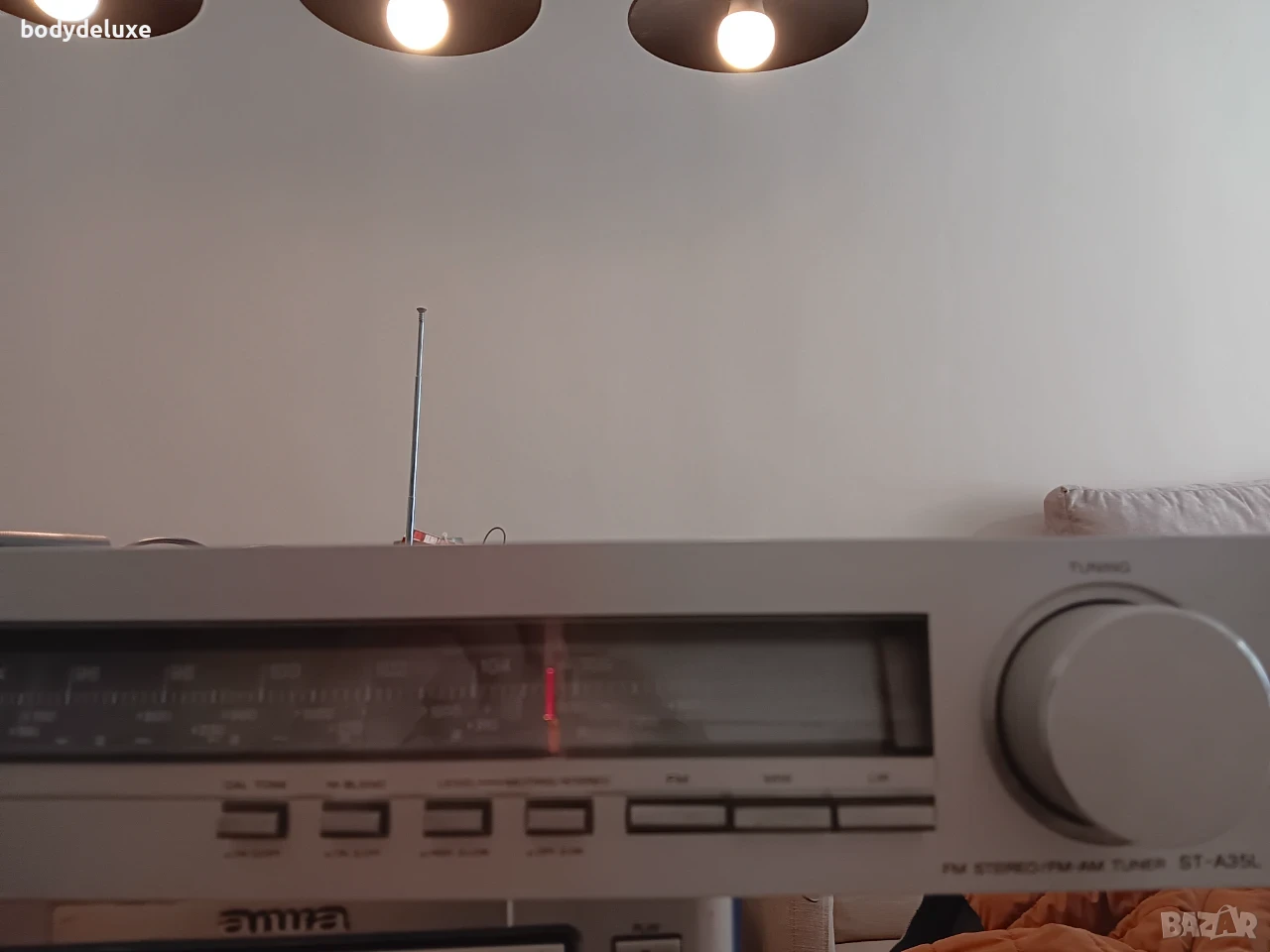

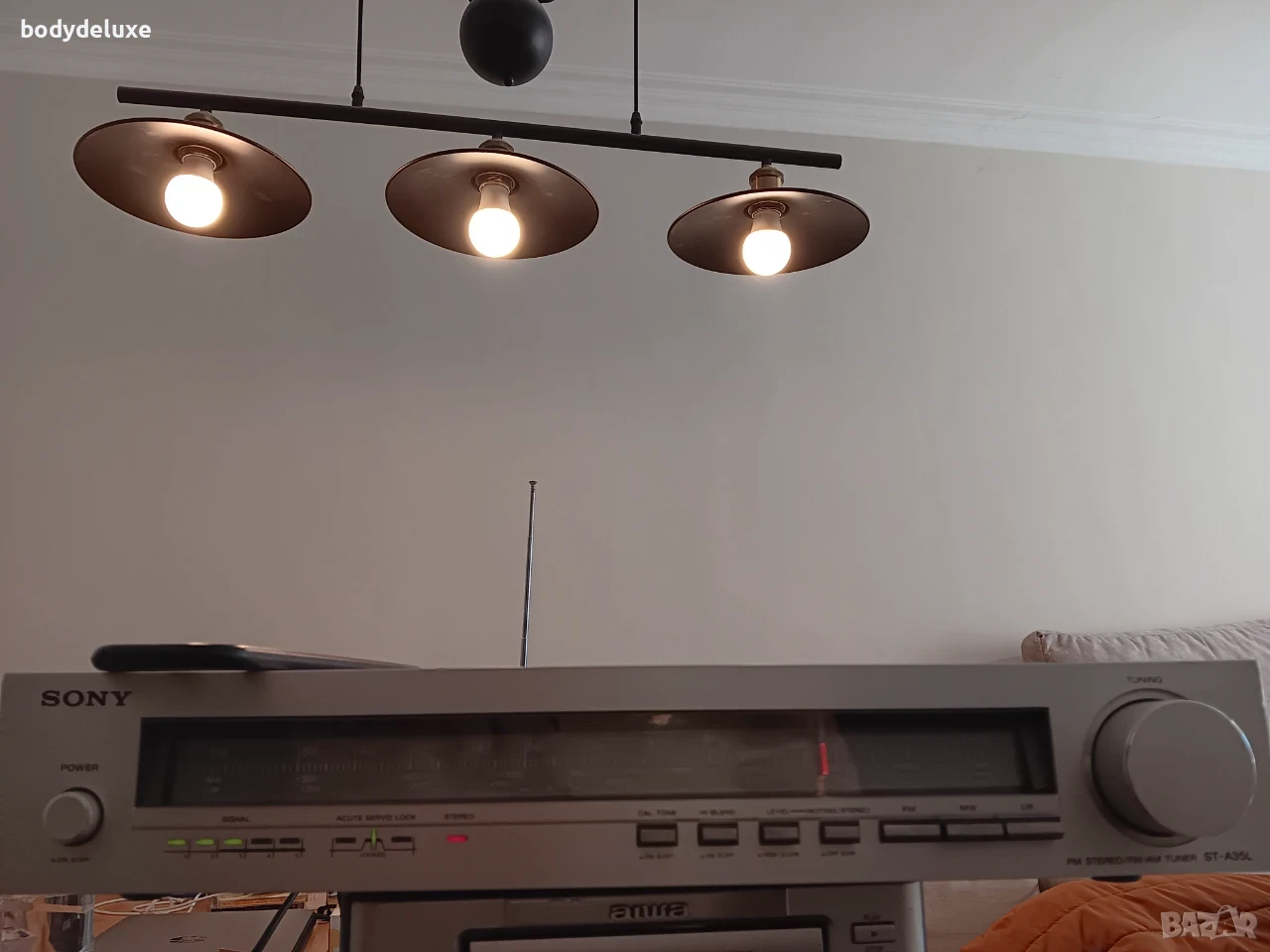

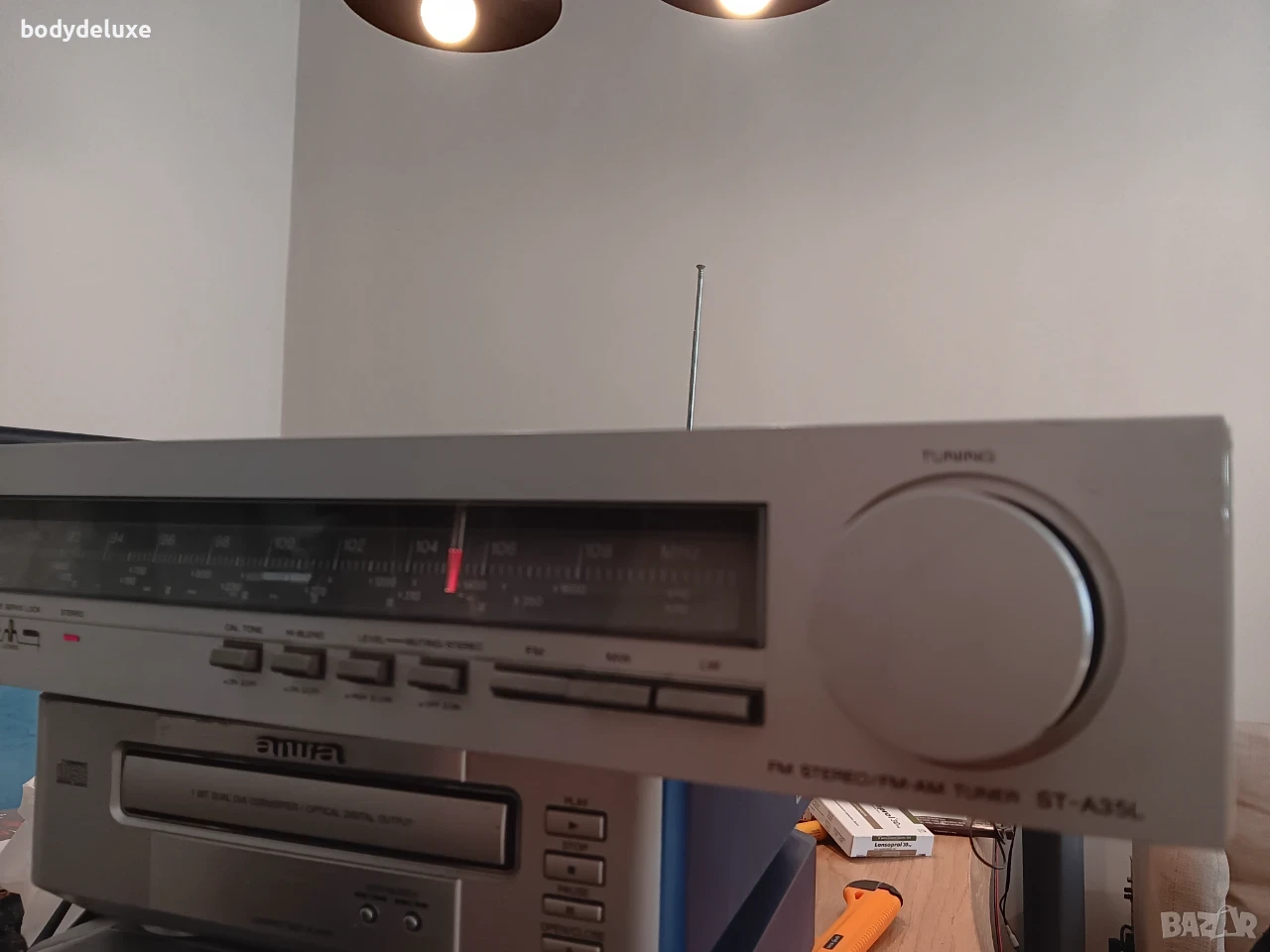

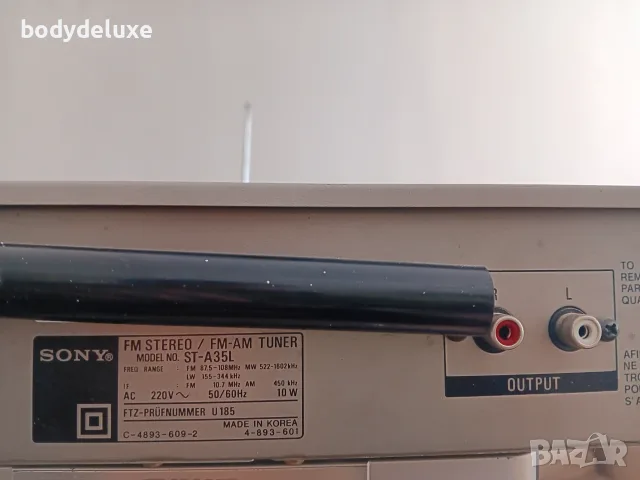

A hi-fi AM/FM stereo tuner with an analogue dial, housed in a silver metal case. Features Acute Servo Lock tuning with three LED tuning indicators, variable capacitor RF front end with four-gang FM and two-gang AM tuning. With rotary tuning control, tuning indicators, five LED signal strength indicators, push button switches for calibration tone, hi blend, high/low level, and muting/stereo. On the back, an adjustable ferrite rod aerial, terminals for AM and FM antennae, and RCA phono line output sockets.
Specification
System
FM stereo, FM/AM superheterodyne tuner
Acute Servo Lock System
FM tuner section
Tuning range
87.5MHz - 108MHz

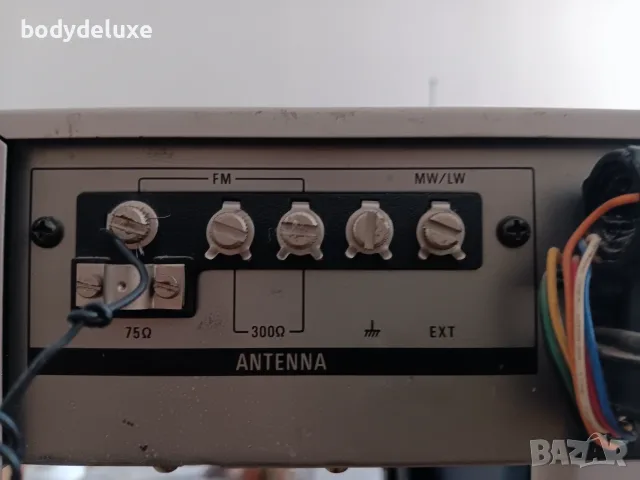

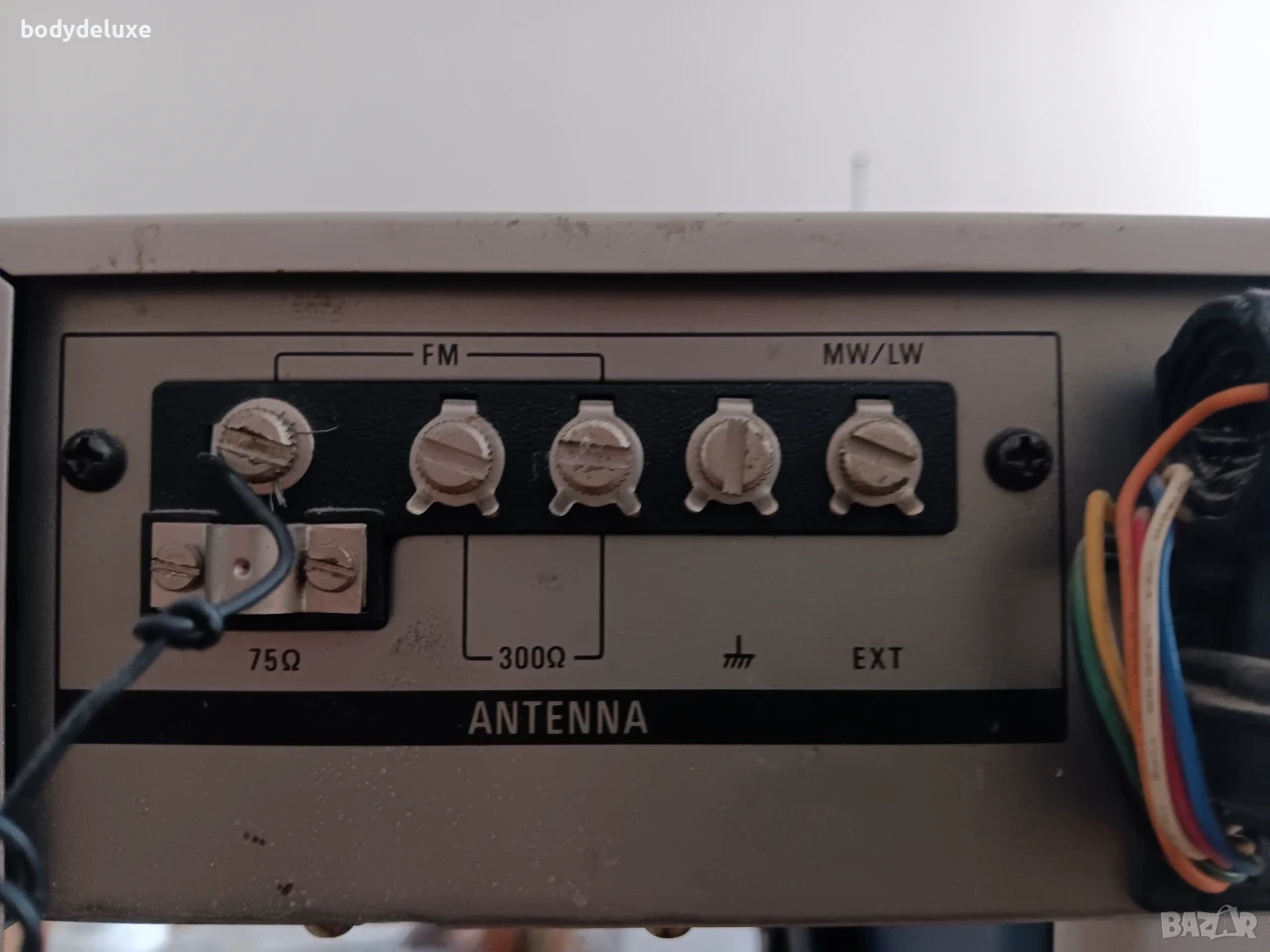

Antenna terminals
300Ω balanced, 75Ω unbalanced
Sensitivity at 46dB quieting
17.3dBf, 4µV (mono)
37.9dBf, 43µV (stereo)
Usable sensitivity
10.8dBf, 1.9µV (IHF)
1.4µV (S/N 26dB)
Signal/noise ratio
77dB (mono), 72dB (stereo)
Harmonic distortion
0.1% (mono), 0.2% (stereo) at 100 Hz
IM distortion
0.1% (mono), 0.2% (stereo)
Separation at 100Hz
45dB
Frequency response
40Hz - 12.5kHz ±0.3dB
30Hz - 15kHz +0.3dB,-2dB
Selectivity
80dB at 300kHz
Capture ratio
1.0dB
AM suppression ratio
60dB
Image response ratio
85dB
IF response ratio
95dB
Spurious response ratio
95dB
Muting threshold
approx. 25.2dBf/10µV (at LOW)
approx. 45.2dBf/100µV (at HIGH)
Output level/impedance
750mV/4.7kΩ (at 75kHz deviation)
Calibration tone 50% modulation
(at 37.5kHz deviation)
400Hz
AM tuner section
Tuning range
MW 522kHz - 1,602kHz
LW 155kHz - 344kHz
Antenna
built-in antenna, external antenna
Usable sensitivity
built-in antenna
MW 200µV/m (at 1,000kHz)
LW 450µV/m (at 250kHz)
external antenna
MW 100µV (at 1,000kHz)
LW 100µV (at 250kHz)
Image response ratio
MW 45dB (at 1,000kHz)
LW 75dB (at 250kHz)
Signal/noise ratio
55dB
Harmonic distortion
0.5%
Selectivity
45dB (9kHz)
Versions/Power requirements
Type 1 : 220V AC 50/60Hz
Type 2 : 240V AC 50/60Hz
Type 3 : 110, 120, 220, 240V AC 50/60Hz adjustable
Read Company News
Power consumption: 10 W
The
Sony ST-A35S FM Stereo / FM-AM Tuner
is similar with SW in place of LW.
Made in Korea
Net weight (2.2 lb = 1 kg)
4.1 kg / 9 lb 0.5 oz (9.031 lb)
