Name: Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD
Brand: GIGABYTE
SKU: 48651991
Price: 319.989990234375 BGN
Availability: InStock

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD → Обява 48651991

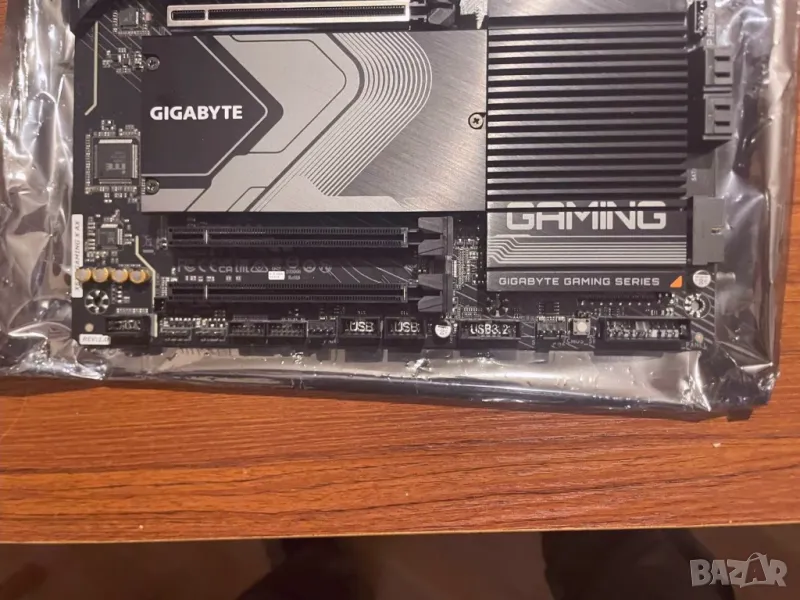

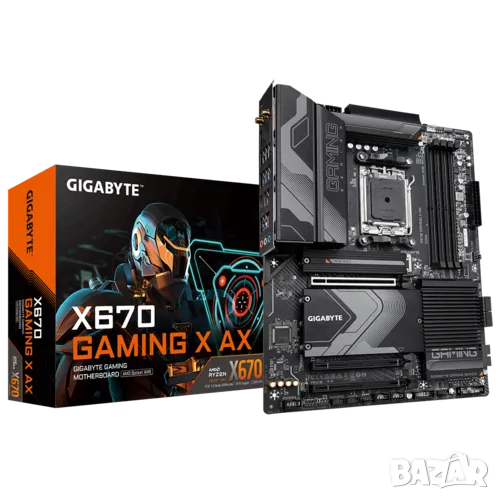

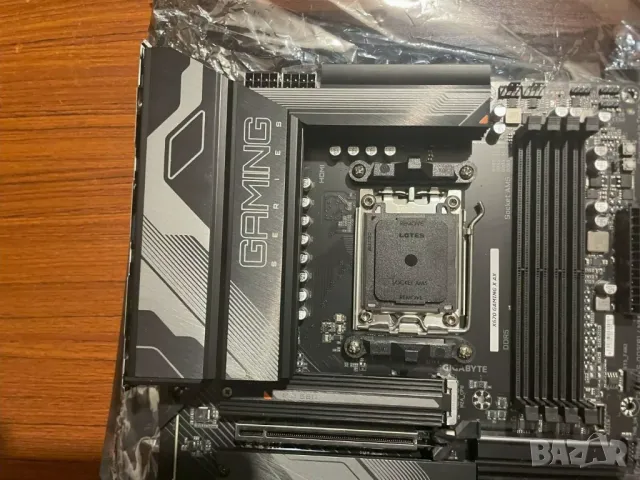

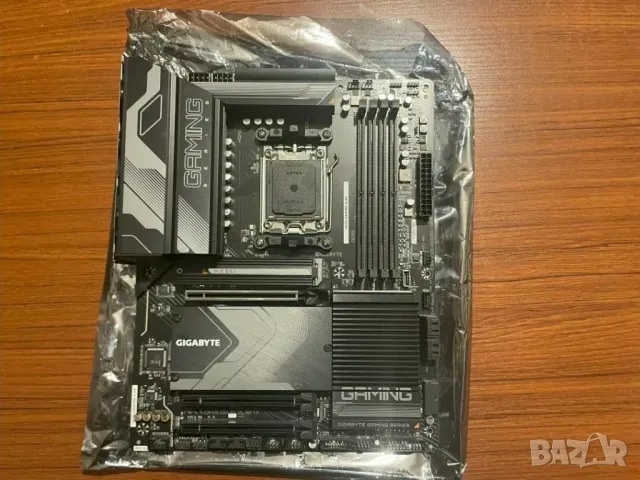

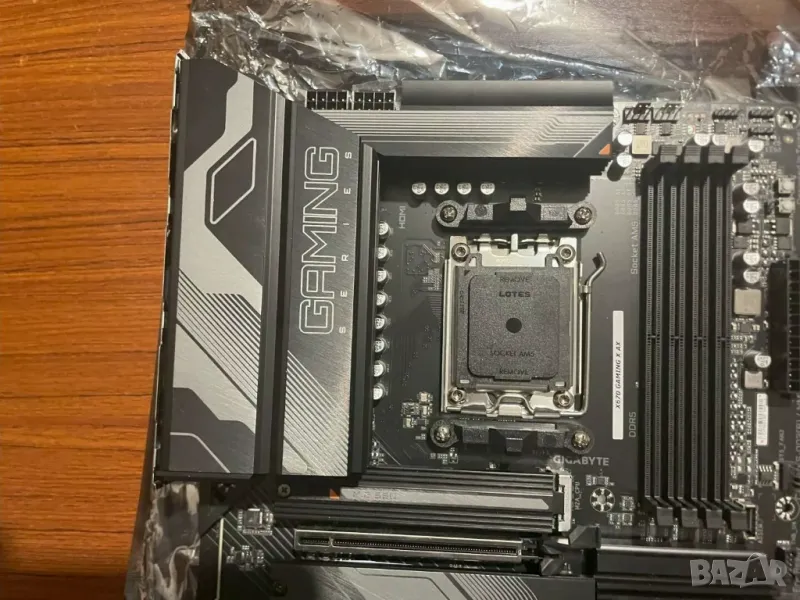

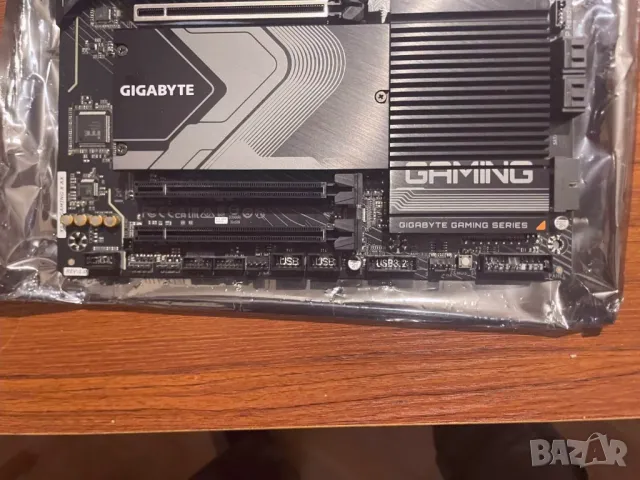

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD, снимка 1 - Дънни платки - 48651991

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD, снимка 2 - Дънни платки - 48651991

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD, снимка 3 - Дънни платки - 48651991

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD, снимка 4 - Дънни платки - 48651991

Дънна платка GIGABYTE X670 GAMING X AX сокет АМ5, DDR5, PCIe 5.0 M.2 SSD

гр. София Наблюдавай

Публикувана/обновена на 12 януари в 15:30 ч.

Състояние

Използвано

Доставка

Лично предаване; Купувача

Марка

GIGABYTE

ДЪННАТА ПЛАТКА А НЕРАЗЛИЧИМА ОТ НОВА.

МОЛЯ НЕ ПРЕДЛАГАЙТЕ ЦЕНА ПОД ОБЯВЕНАТА ИЛИ БАРТЕР.

АКТУАЛИЗИРАХ БИОС ДО ПОСЛЕДНА ВЕРСИЯ ЗА ДА ПРИЕМА RYZEN 9000 ПРОЦЕСОР.

НЯМА ПОВРЕДЕНИ ПИНОВЕ НА СОКЕТА ЗА ПРОЦЕСОРА.

С КУТИЯ И АНТЕНТКИ ЗА WI-FI.

AMD цокъл AM5：Поддържа процесори AMD Ryzen™ серия 7000

Несравнима производителност ：Двойно 16*+2+2 фазово цифрово VRM решение

Двуканална памет DDR5：4 слота SMD DIMM с поддръжка на модули памет AMD EXPO™ & Intel® XMP

Дискове от следващо поколение：1 конектор PCIe 5.0 x4 и 3 конектора PCIe 4.0 x4 M.2

Mega-Heatpipe & M.2 Thermal Guard：за осигуряване на стабилно захранване на VRM & производителност на SSD дискове 25110 PCIe 5.0 M.2

EZ-Latch：слот PCIe x16 & конектори M.2 с бързо освобождаване & безвинтов дизайн

Бързи мрежи : 2.5GbE LAN & Wi-Fi 6E 802.11ax

Разширема свързаност: HDMI, два порта USB-C® 20Gbps и поддръжка на бъдещ GIGABYTE USB4 AIC

Smart Fan 6：разполага с множество температурни датчици, хибридни вентилаторни конектори с функция FAN STOP

Q-Flash Plus： обновяване на BIOS без да се инсталира процесор, памет и графична карта

* 8+8 фазова паралелна захранваща схема

Процесор

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer "CPU Support List" for more information.)

Чипсет

AMD X670

Поддържана памет

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Вградена видеокарта

Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Аудио

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Модул за безжична комуникация

AMD Wi-Fi 6E RZ616 (MT7922A22M)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Слотове за периферни компоненти

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Интерфейс за данни

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

2 x USB 3.2 Gen 1 ports on the back panel

CPU + USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 2.0/1.1 ports available through the internal USB headers

Вътрешни входно-изходни портове

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x THB_U4 add-in card connector

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x Clear CMOS button

1 x reset jumper

1 x Clear CMOS jumper

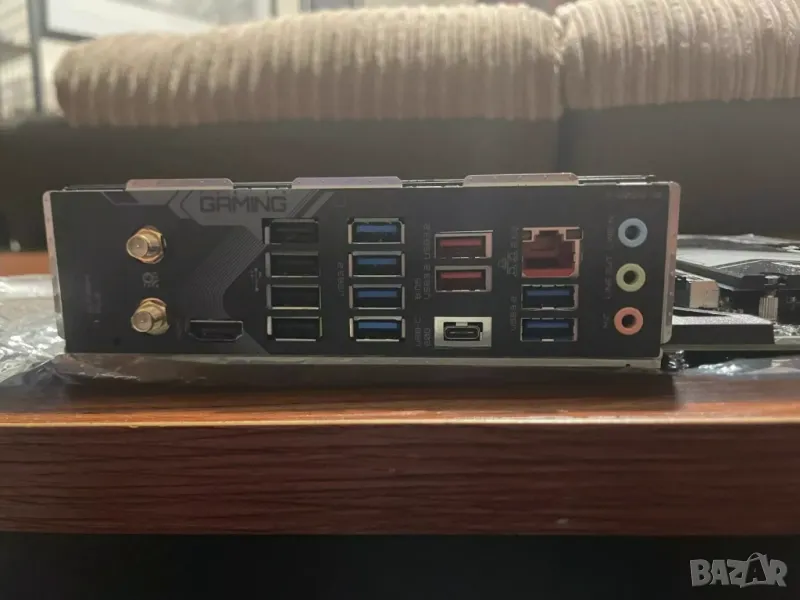

Входове / изходи на задния панел

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x HDMI port

6 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x RJ-45 port

3 x audio jacks

I/O контролер

iTE® I/O Controller Chip

Хардуерен мониторинг

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Уникални характеристики

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Пакетиран софтуер

Norton® Internet Security (OEM version)

LAN bandwidth management software

Операционна система

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Форм фактор

ATX Form Factor; 30.5cm x 24.4cm
