Дънна платка DataExpert EXP8661 Socket 7 (PGA321) → Обява 48997285

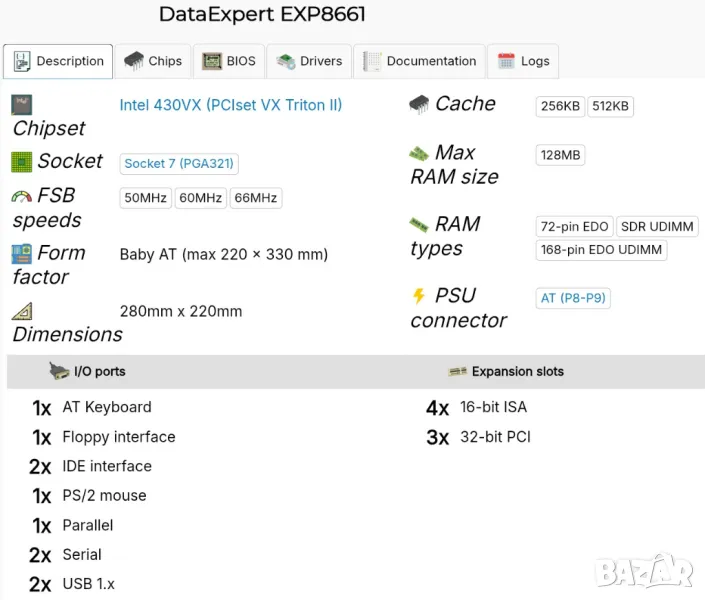

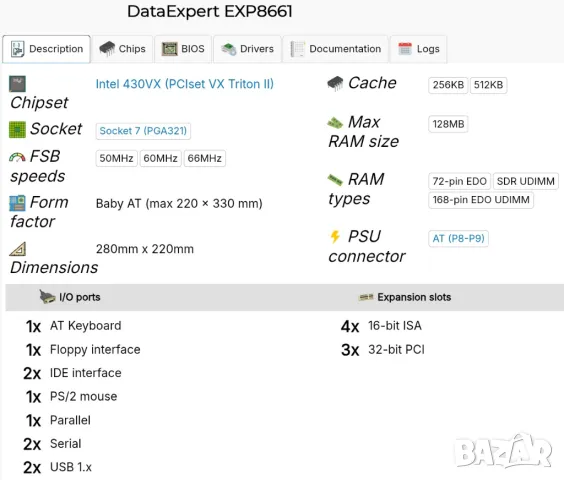

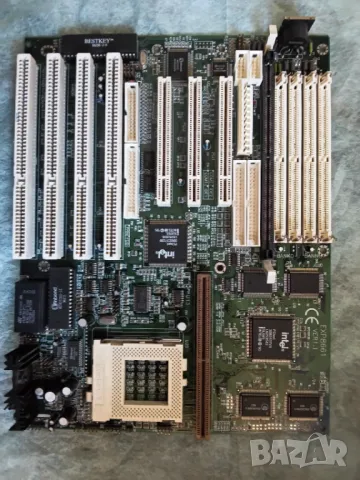

Дънна платка DataExpert EXP8661 Socket 7 (PGA321)
Състояние
Използвано
Доставка
Купувача
Марка
Други
Продавам дънна платка със захранване и др. , DataExpert EXP8661 Intel 430VX P54c/P55c PCI 2.1 Motherboard
2x16550 Serial Port,1 ECP/EPP Parallel Port,2x Bus Master EIDE Port & FDC Port Windows 95 Plug&Play Compliance with Flash BIOS, DRAM/EDO/SYNC DRAM SIMMs support,MESI Protocol for L2 Pipeline Burst Cache support.
Features
EXP8661 is a Intel 75/90/100/133/150/166/180/200 Mhz P54C/P55C & Cyrix 6x86 P120,P150. P166 Mhz 256K Pipeline Burst Cache upgradeable to 512k Cache with Cache Module SIMM socket.
Support 3.3V/2.9V/2.5V selectable for Intel P55C 200Mhz & Intel OverDrives upgradeable.
Design based on P54C Intel 430VX(371/437/438) with Bus Master IDE Controller integrated.
Supports MESI Protocol (Modified Exclusive Shared Invaid) to maintain the data coherence for L2 Cache to optimize CPU bus utilization.
Supports 4MB-128MB-[256MB] DRAM/EDO Memory utilizing 4 x 72 pin SIMMs socket.
Supports 1 x 168-pin DIMM socket for 3.3V/5V Synchronous Asymmetrical Single/Double DRAM Module.
Integrated Programmable 2 serials (16550) / 1 Parallel (ECP/EPP) /FDC controller (Winbond 787/768)/ps2 Mouse Port and Mini-din PS2 Keyboard option.
Support 2 x PCI Bus Master IDE ports to reduce the work load of the Host Processor or CPU.
Support Flash AMI BIOS for Plug & Play/DMI Features to provides an ease-of-use feature of installation for configuration of add-on cards for users. NCR PCI SCSI firmware integrated in System BIOS.
Support Universal Serial BUs POrt for USB Device Expansion & Infrared IR (1152Kbps/Sec) option.
Ако имате вие въпроси пишете!
Преглеждания: 12
Другите търсят също
Цена:
100 лв
