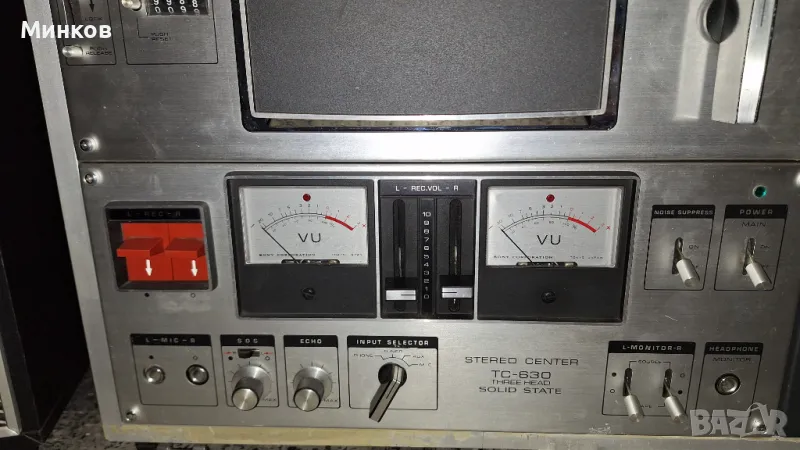

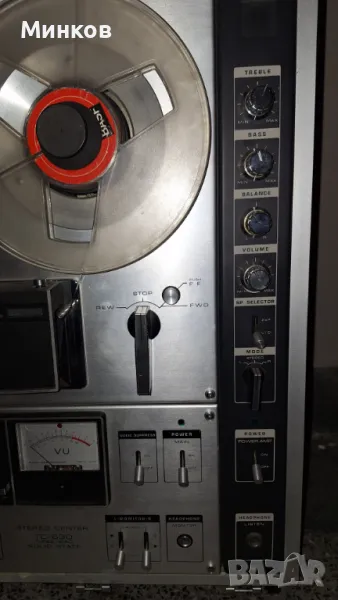

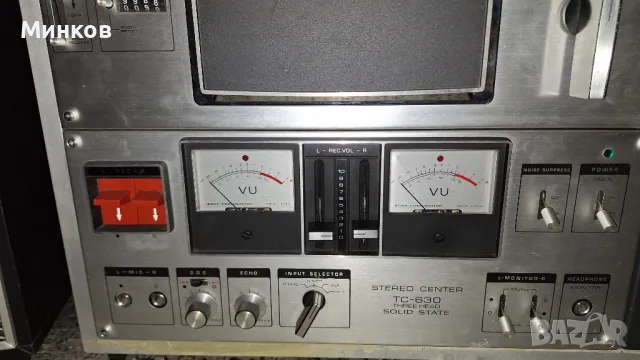

Магнетофон, 3 глави, 3 скорости, 18 см ролки, с 2 отделящи се колони, които са капак. Всичко работи, много добър вънщен вид.
Tape speeds
7½ , 3¾ & 1 7/8 ips
Frequency response (3 dB)
7½ ips: 30Hz – 22kHz
3¾ ips: 30Hz – 13kHz
1 ips: 30Hz – 10kHz
Wow & flutter
0.09% at 7½ ips, 0.12% at 3¾ ips and 0.16% at 1 7/8 ips
Signal to noise ratio
50dB
Total harmonic distortion
1.2%
Semi-conductors
40 silicon transistors, 7 diodes (TC-630)
Bias frequency
160kHz
Audio output power
20 watts per channel (dynamic), 15 watts RMS per channel (TC-630)

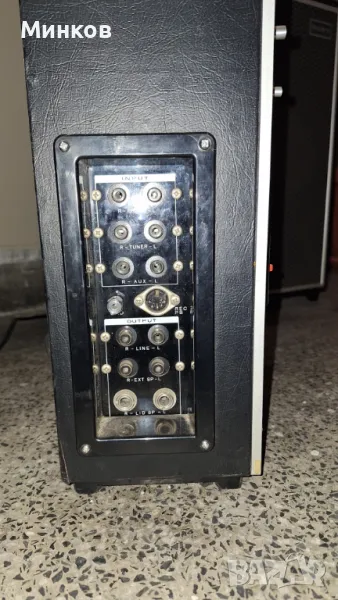

Inputs
mic: 0.2mV/ 250 ohms, aux: 60mV/ 560 kohms,
tuner: 60mV/100 kohms, phono: 2mV
Outputs
line 0.775v at 0 VU; speakers: 16 ohm (lid) 8 ohm (ext); headphones
Speaker(s)

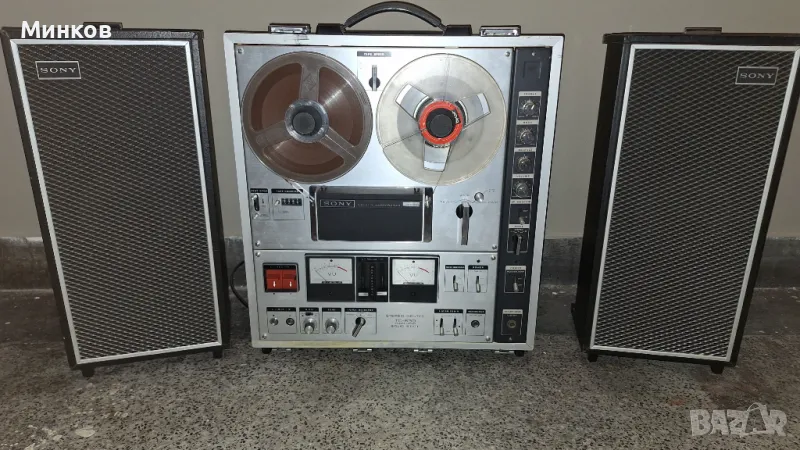

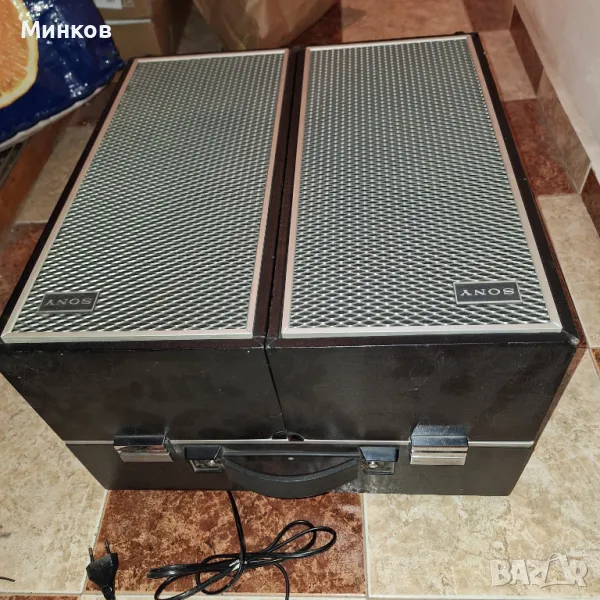

Two wide-range units detachable comprising lid for transportation
Dimensions
18 x 20 x 11½ ” (454 x 508 x 296 mm)
Weight
46.2 lbs (21 kg)
