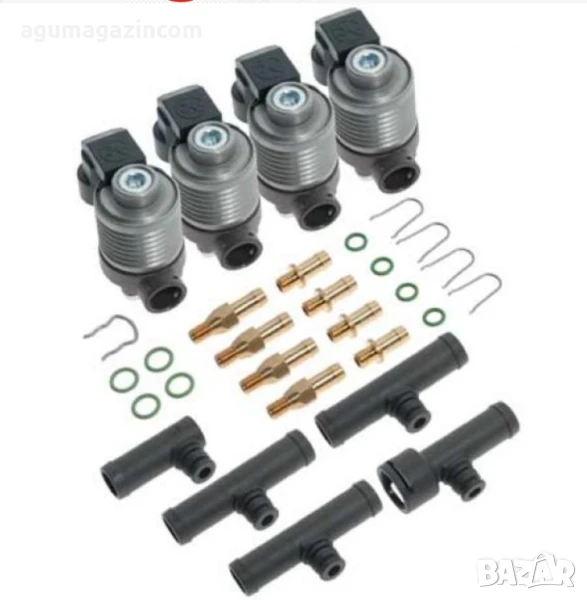

Инжектори AC W031 STD - 4 ц. с колена 1.9 Ω - комплект
→ Обява 51120467
Тип мпс
Автомобили и джипове
Категория части
Газови и метанови уредби
Резервни части
Газови инжекциони
Technical specification AC W031 STD
Working pressure [bar] - 0,95 ÷ 1,5
Maximum working pressure [bar] - 4,5
Working temperature [˚C]. - -20 ÷ +120
Opening time at pressure 1,2 bar [ms] - 2
Closing time at 1,2 bar [ms] - 1
Weight with nozzles [g] - 74
Resistance of coil [Ω] - 1,9
Supply voltage [V] - 12 ÷ 16
Maximum flow with pressure of 1,2 bar [l/min] - 125
Capacity range [HP/cylinder] (regulated by nozzles) - 13,6 ÷ 45,8
Capacity range [kW/cylinder] (regulated by nozzles) - 10 ÷ 33,8
Gas input - stub [mm] - Ø 6 / Ø 12
Gas outlet - stub pipe [mm] - Ø 6
Life [km]
- urban cycle - 100 thous.
- extra-urban cycle - 200 thous.
Overall dimensions with spigot [mm] -
- length x width x height
48 x 60 x 26
