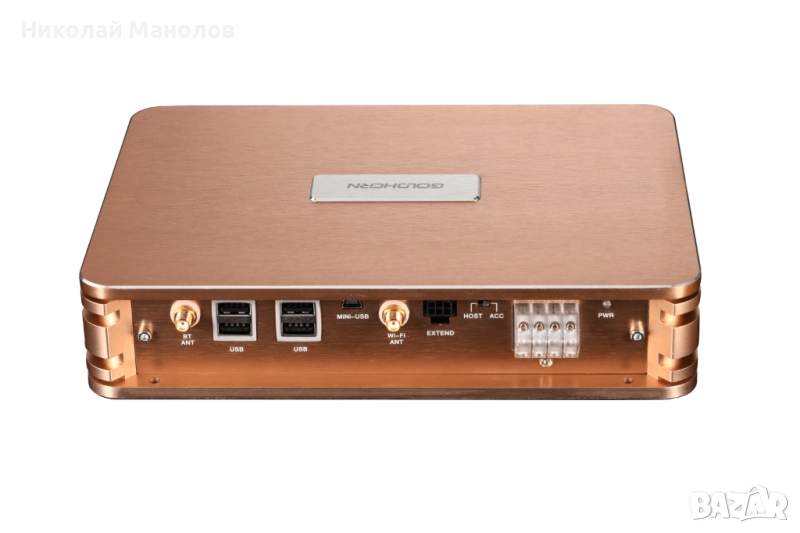

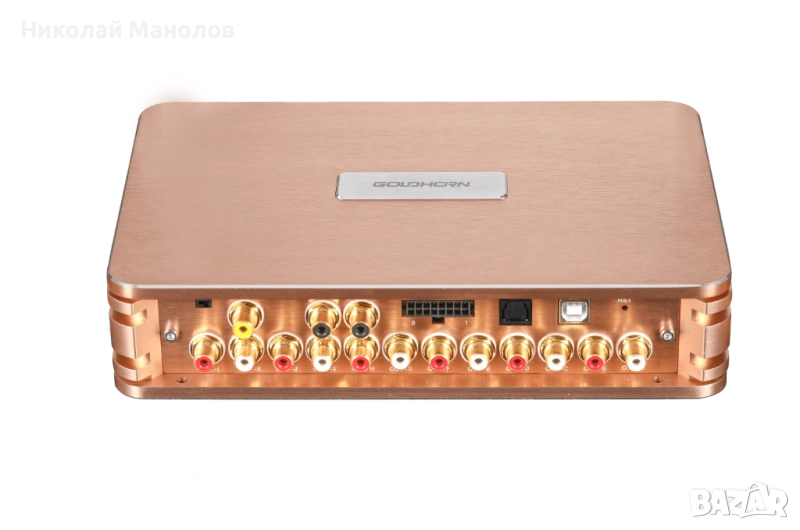

DSP процесор с плеър Goldhorn P2 DSP PRO → Обява 51629520

Характеристики:

DSP chip: ADAU1463 Analog Devices™
32 bit, 295 Mhz, 48KHz Sampling Rate
1.2 Billion MAC Operations per Second

DAC Chip: 6 x ESS 9038Q2M

ADC Chip: 2 x ES9840Q

Opamp: NJM4580 & OPA2604

Capacitors: High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps

Start-Stop ready: Yes

Controller: Optional

Power off Delay: Yes Variable

Navigation Mode: Yes

Wi-Fi Mobile App control: Yes

BT Wireless Player Remote: Yes

Steering wheel controller terminal: Yes

Password Available: Yes

Color: Gold

Finish: Gold Anodized Aluminum

Audio Input Features:

Equalizer Filter Type: PE/LS/HS/AP

5-Band Para metrical Equalizer: ±15 dB, 0.1 dB Steps

Q: 0.5-15 0.1

Time Alignment Delay: 0-1O ms/0.02 ms Steps

Audio Output Features:

Equalizer Filter Type: PE/LS/HS/AP

Crossover Frequency: 1 Hz step @ 20 Hz – 20 KHz

Master Gain: 0-60 dB

Channel Gain: -20-+5 dB

Phase Shift: Positive phase/Inverted phase

Input Mixer, Subwoofer Control

Q: 0.5-15 0.1

Variable Phase Rotation: from o· to 360° (step : 1 °)

31-Band Parametrical Equalizer: ±15 dB, 0. 1 dB Steps

Time Alignment Delay: 0-20 ms/0.02 ms Steps

Crossover Filter Type and Slope:
Bessel / Butterworth @ -6/-12/-18/-24/-30/-36/-42/-48 dB
Linkwitz @ -12/-24/-36/-48 dB

Frequency Response: 20Hz-40KHz

USB: 1 x USB Type B for PC Software / USB 2.0 Host x 4 / mini USB x 1

Remote Control: 1 x Remote input

Bluetooth® Receiver: APTXHD/APTX/AAC/SBC

Error Protection System

8 Presets for Sound Setups

Dimensions (L x W x H): 241 x 180 x 50 mm

Voltage: 11V – 16V

Fuse Rating: 10A

Turn-On: ACC/high level inputs

High Level Inputs: 8 x High Level Inputs

High Level Inputs Sensitivity: 10-16V Max

RCA Inputs: 2 x RCA inputs

Low Level Inputs Sensitiviti: 3V Max

Input Impedance: 6 Ω

RCA Outputs: 12 x RCA Outputs 11Vp-p(4Vrms)/47KO

RCA Outputs Voltage: 4V

Optical lnput: 1 x Optical lnput

THD:
Analog Input <0.003%
Digital Input <0.003%

Signal-to-Noise Ratio (A-weighted):
Analog input ⧁ 106dB S/N
Digital Input: 111 dB S/N

Video output: 1 x CVBS video output (NTSC)

Steering wheel controller terminal x 1

Wi-Fi: 802.11 b/g/n

Music Formats:
Hi-res: DFF/DSF/DSD (up to 256)
uncompressed: WAV/FLAC/APE/AIFF
compressed: MP3/AAC/OGG/WMA

Sampling Rate:
PCM: 44.1 KHz-768KHz/16-32bit
DSD: DSD64/DSD128/DSD256
