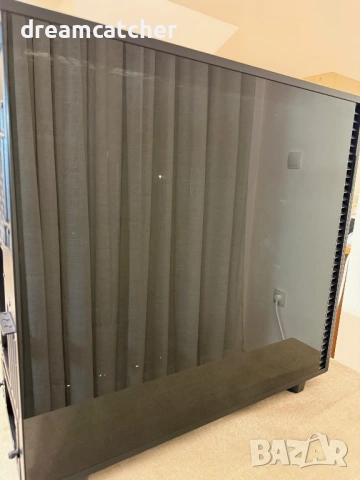

Кутия Fractal Design Define 7 XL Black Dark TG, E-ATX/ATX/mATX/mITX/EE-ATX/SSI-CEB extra Solid Panel → Обява 52289268

Define 7 XL

Re-defining capacity.

The Define 7 XL sets a new standard for what you should expect from a fulltower case in terms of modularity, flexibility and ease of use.With its dual-layout interior, industrial sound damping and massively versatilelayout supporting the largest E-ATX and enterprise boards, multi-GPU setups,outlandish water loops, and almost two dozen storage devices (in Storagelayout), you’ll be hard pressed to find a limit to what you can do with yourbuild in the Define 7 XL

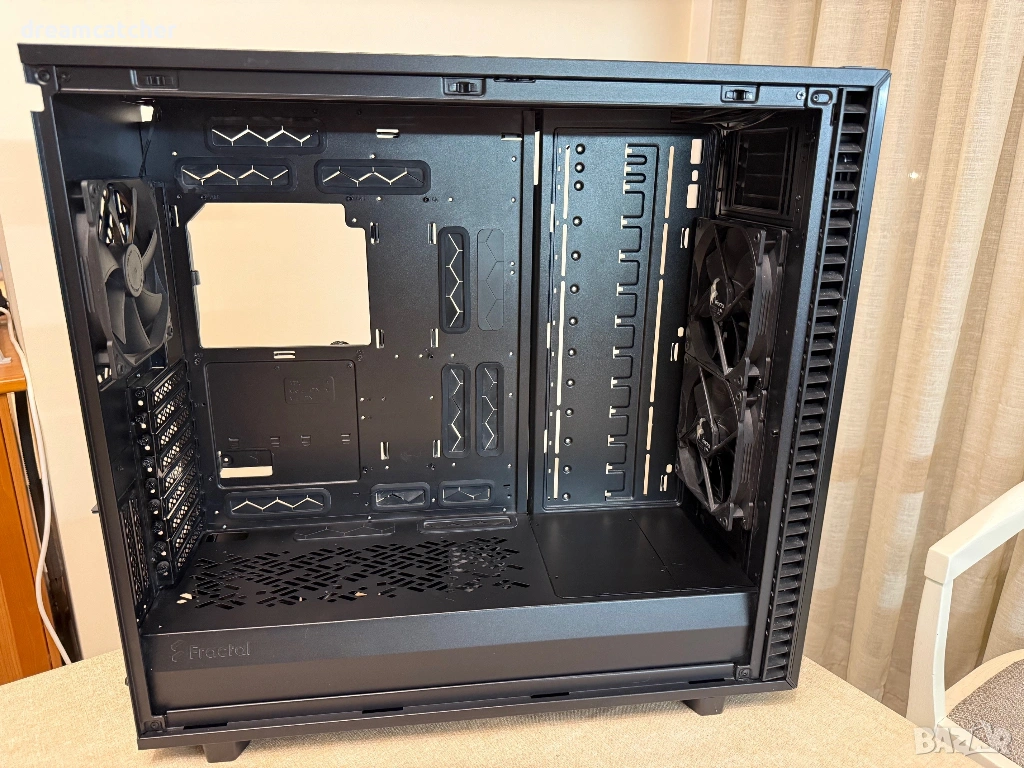

• Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB


• Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets inc


• Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 28


• Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering


• Silence-optimized construction with industrial sound-damped front, top, and side panels

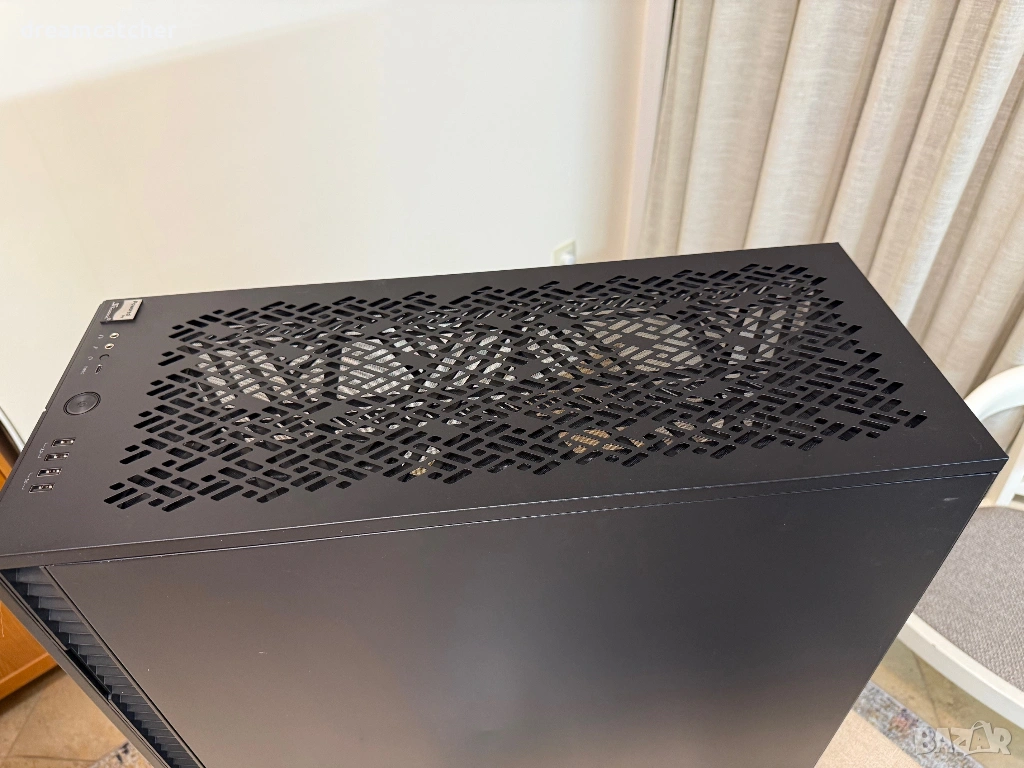

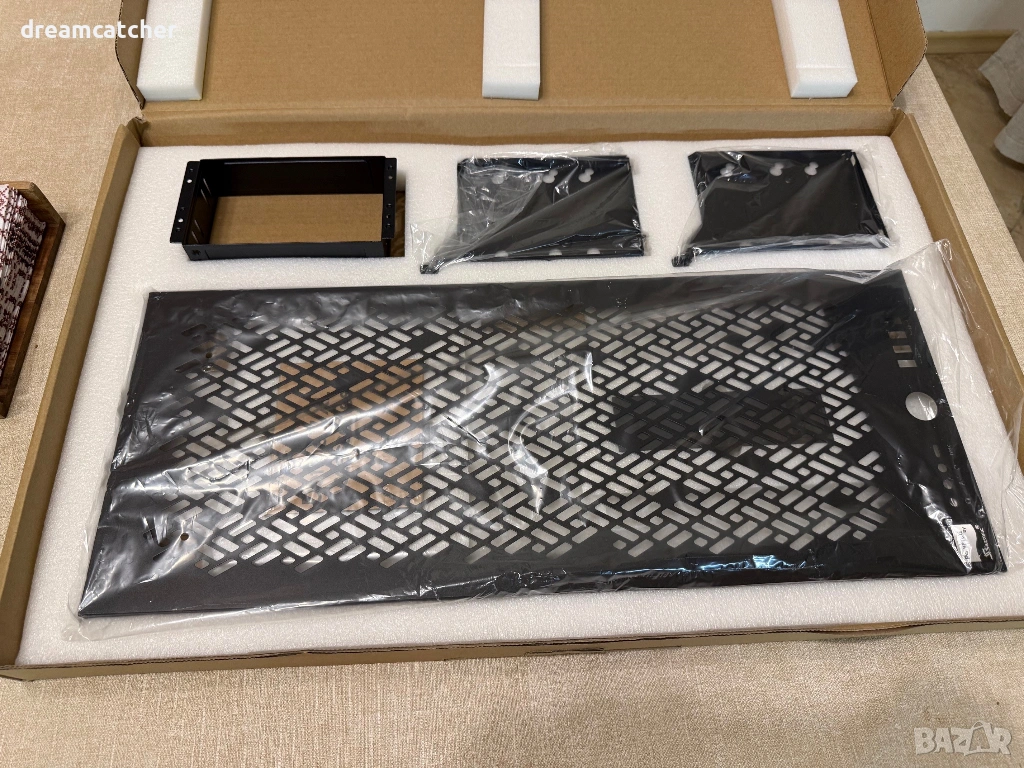

• Top panel effortlessly swaps from sound damped solid steel to filtered ventilation

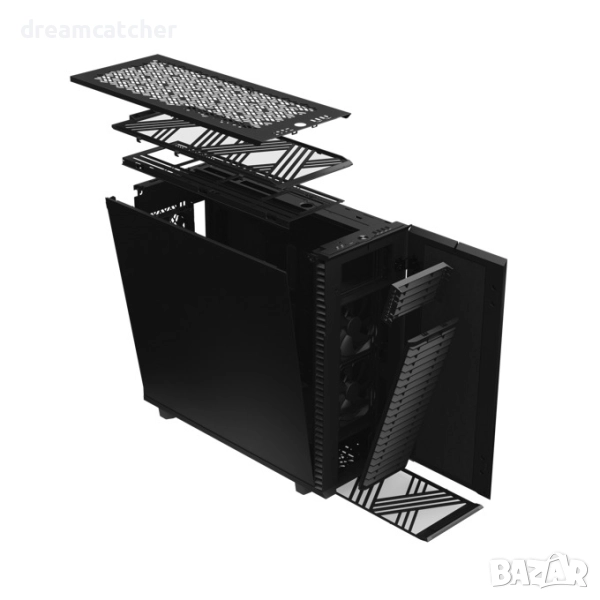

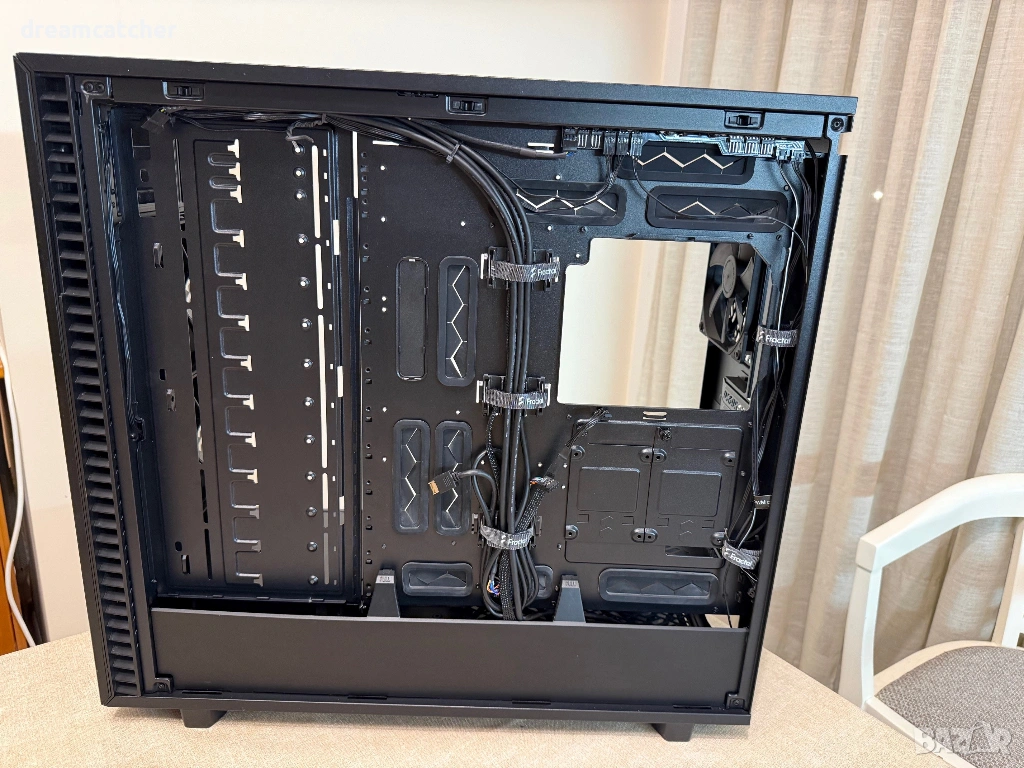

• New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and

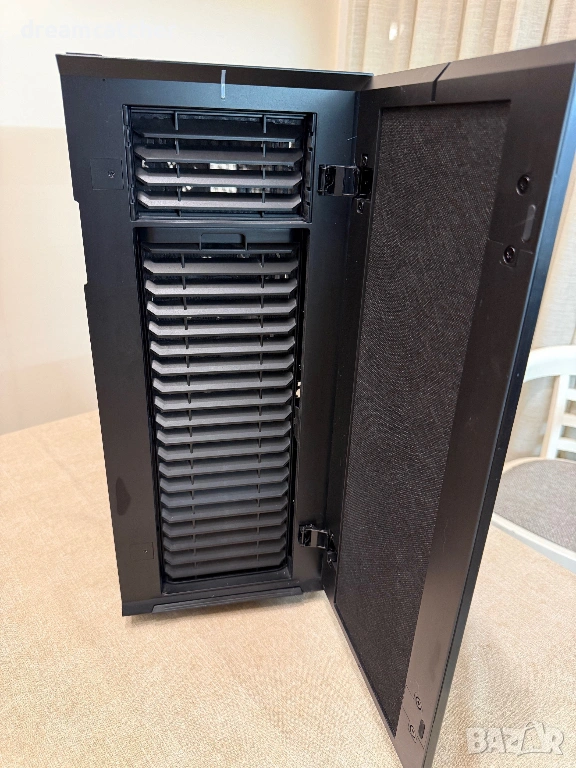

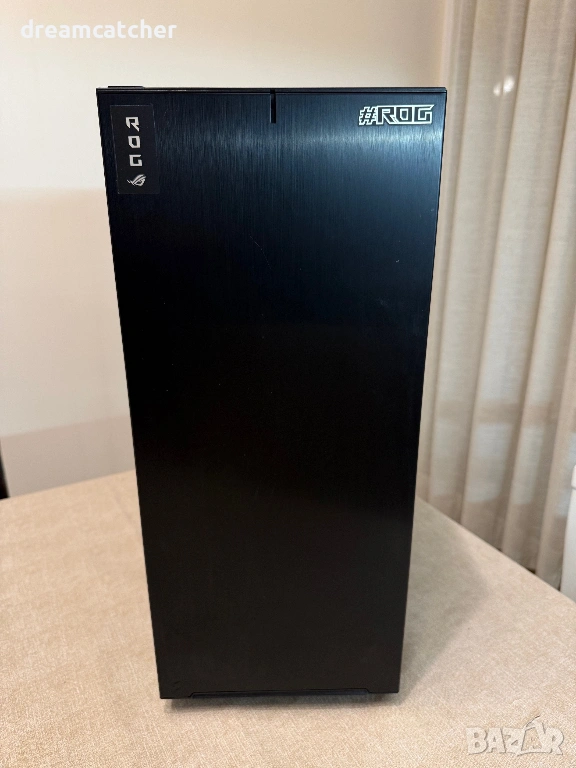

• Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching


• Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 G


• Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount


• Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately


• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps


• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case


• Sturdy new HDD cage design with vibration damped trays


• Tool-less, top-latching panels allow quick access while preventing accidental drops

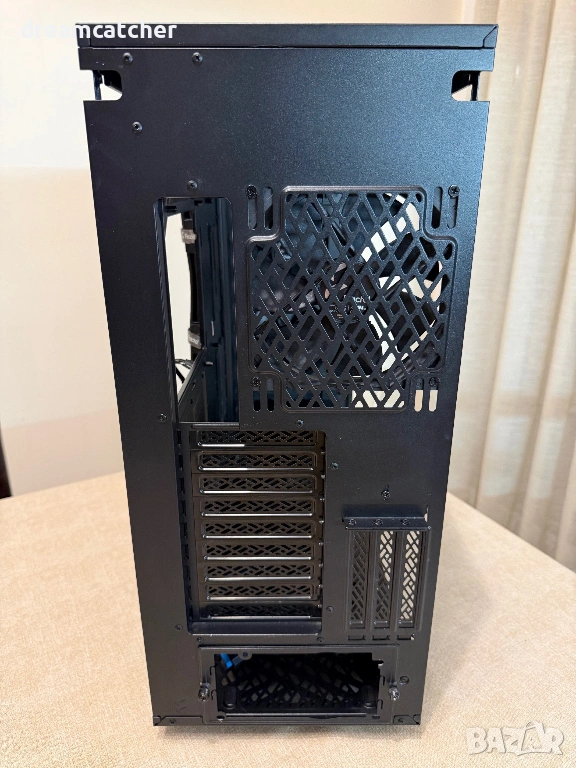

• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup


• Ventilated PSU shroud with two-part removable cover


• Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access


• 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size


• Dachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board


General Specifications

3.5"/2.5" drive mounts: 6 + 2 included, 18 positions total

Dedicated 2.5" drive mounts: 2 trays included, 5 positions total

5.25” drive mounts: 2

Expansion slots: 9 + 3

Motherboard compatibility: E-ATX/ATX/mATX/mITX/EE-ATX/SSI-CEB/SSI-EEB

Power supply type: ATX

Front interface: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0,
Audio I/O, Power button, Reset button

Total fan mounts: 11 x 120 mm or 9 x 140 mm

Front fan: 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)

Top fan: 4 x 120 mm or 3 x 140 mm

Rear fan: 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)

Bottom fan: 2 x 120/140 mm

Dust filters: Top, 2 x Front, Bottom + PSU

Front radiator: Up to 480/420 mm

Top radiator: Up to 480/420 mm

Rear radiator: 120 mm

Bottom radiator: Up to 240/280 mm

PSU max length: 250 mm (both HDD cages installed)

GPU max length: Storage layout: 359 mm

CPU cooler max height: 185 mm

Cable routing space: 30 mm

Cable routing grommets: Yes

Fixed velcro straps: Yes

Tool-less push-to-lock: Both side panels and top

Captive thumbscrews: HDD brackets, SSD brackets, PSU bracket

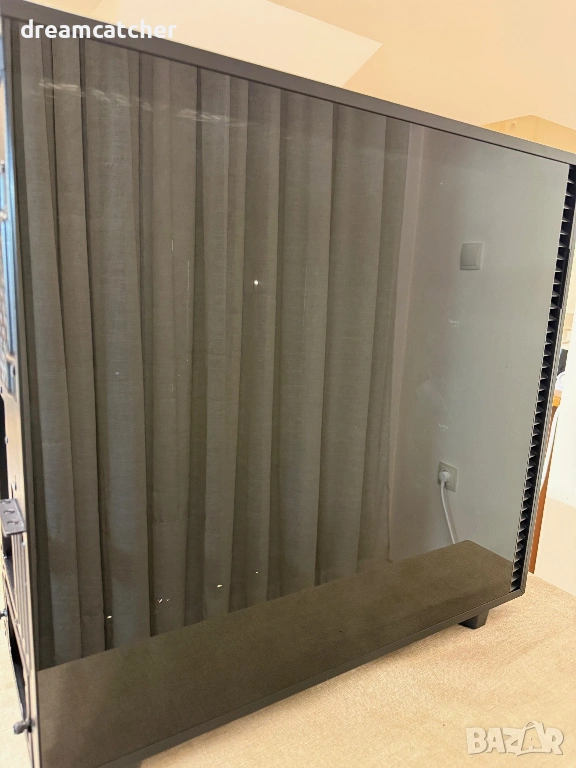

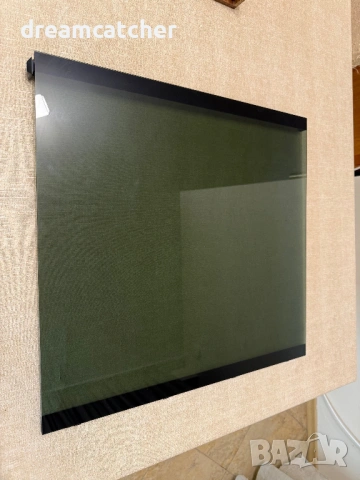

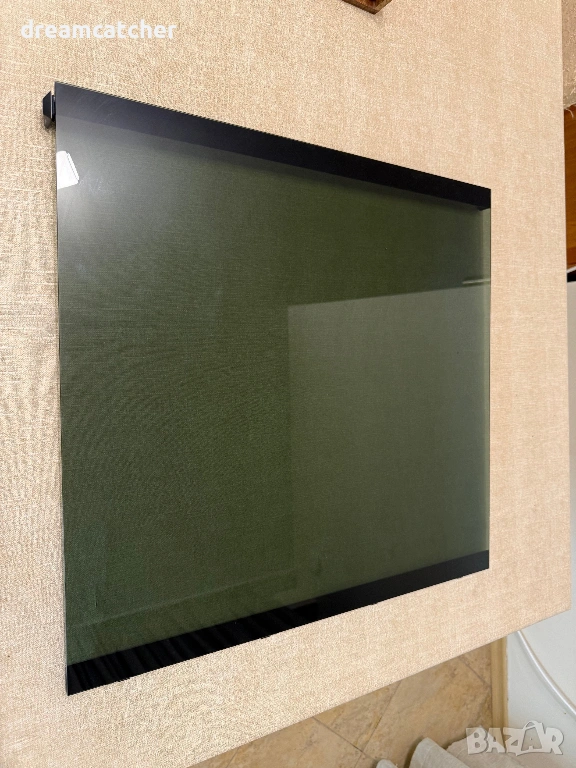

Left side panel: Industrial sound-damped steel or Tempered glass

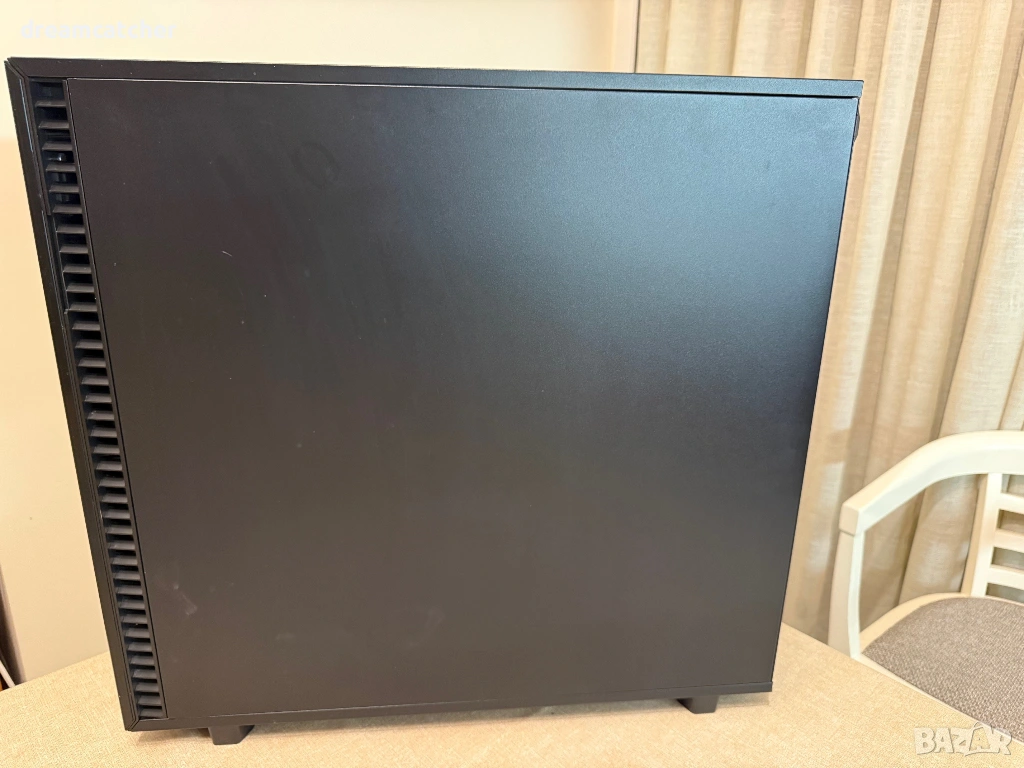

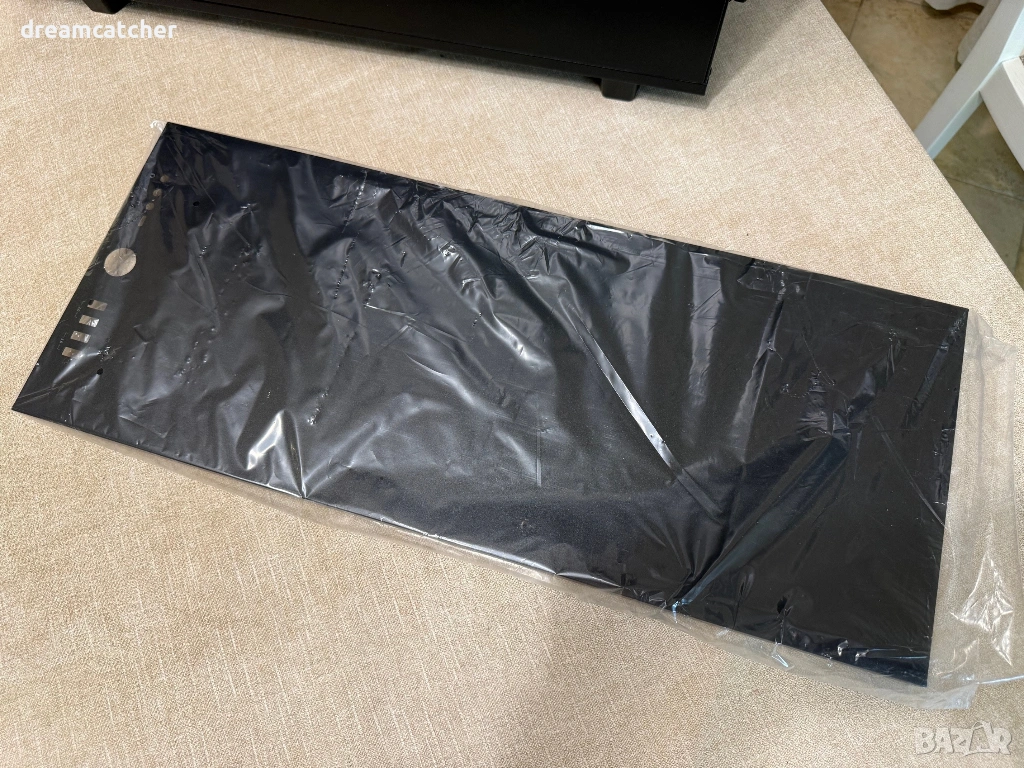

Right side panel: Industrial sound-damped steel

Case dimensions (LxWxH): 604 x 240 x 566 mm

Case dimensions w/o feet/protrusions/screws: 590 x 240 x 548 mm

Net weight: TG: 16.64 kg/Solid: 16.53 kg

Package dimensions (LxWxH): 646 x 357 x 708 mm

Gross weight: TG: 18.84 kg/Solid: 18.73 k
