Vintage receiver SABA 9240 S → Обява 52357221

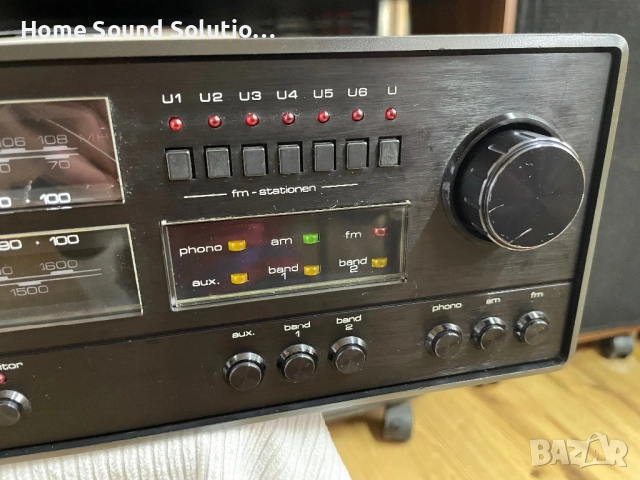

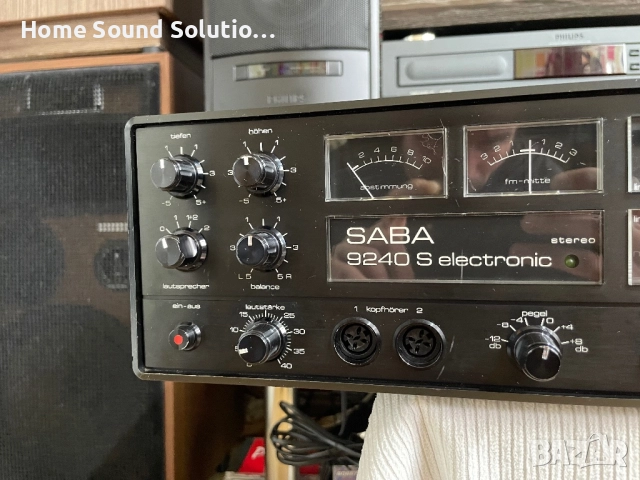

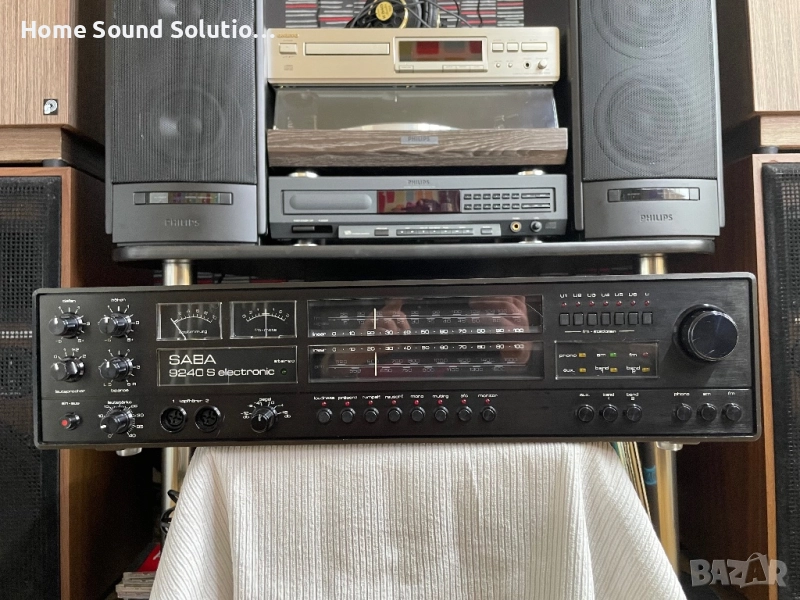

Vintage receiver SABA 9240 S
Състояние
Използвано
Доставка
Лично предаване; Купувача
Прекрасен винтидж ресивър в безупречно техническо и отлично визуално състояние .
Абсолютно всичко работи коректно .
Categorie: Amplificatoare
Brand: SABA
Stare: Produs utilizat
Tip amplificator: Stereo
Constructie: Receiver (tuner integrat)
Tehnologie: Solid state
Manufacturer: SABA
Model: Ultra Hifi professional 9240S electronic
Type: Receiver
Years of manufacture: 1977 - 1979
Made in: Germany
Power consumption: 350 Watt
Dimensions: 540 x 135 x 330 mm (WxHxD)
Weight: 13,5 kg
Original price approx.: 1'248 DM

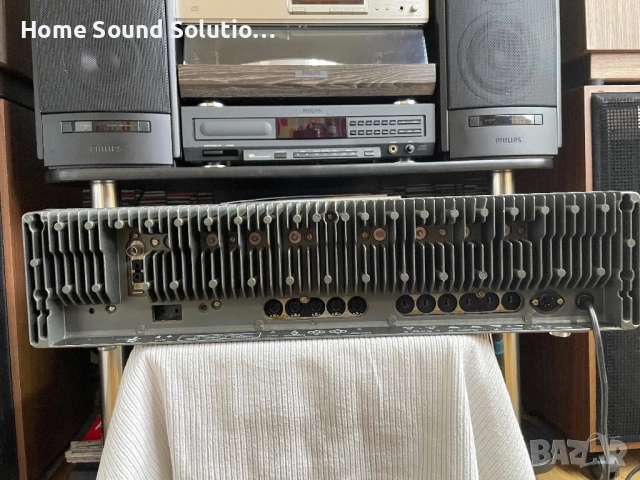

Connections

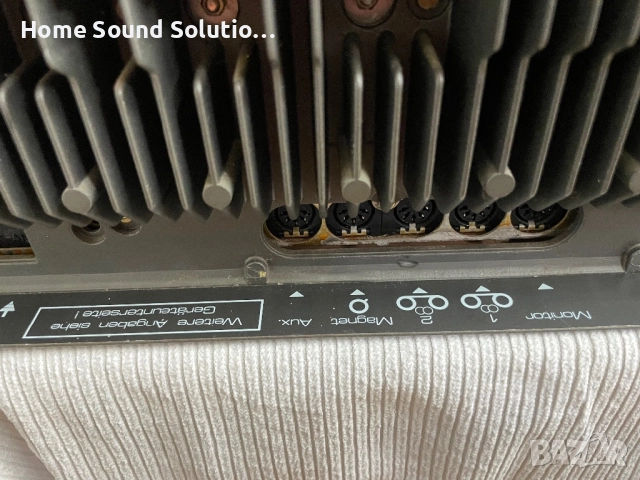

Number of inputs:
Phono MM: 1.5 mV / 47 kOhm
2x tape, aux, monitor: 270 mV / 470 kOhm

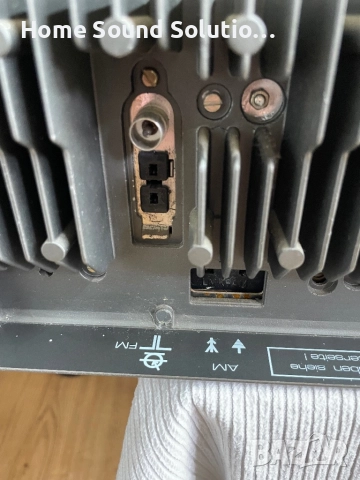

Antenna FM (75/300 Ohm), MW.
Number of outputs:
2x Band
2x headphones

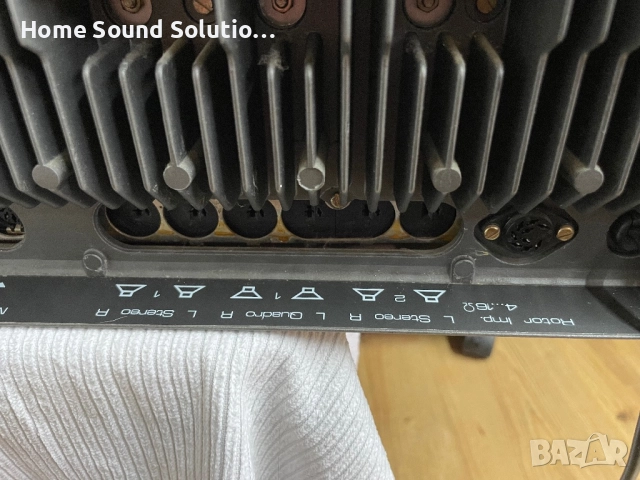

3 speaker pairs
Technical Data
Amplifier
Continuous power (at distortion)
8 Ohm: 2x 57 W
4 Ohm: 2x 70 W
Dynamic power
8 Ohm:
4 Ohm: 2x 120 W
Total harmonic distortion: 0.03% (at nominal power)
Attenuation factor:
Frequency response:
15 - 50,000 Hz (±1.5 dB).
Power bandwidth: 10 - 80,000 Hz (-3 dB)
Signal-to-noise ratio:
Stereo channel separation:
Tone control:
Bass: ±15 dB at 60 Hz
Treble: ±15 dB at 15 kHz
Presence switch: +6 dB 3 kHz
Loudness: yes
High Filter: 8 kHz (12 dB/octave)
Low Filter (Subsonic): 60 Hz (12 dB/octave)
Mute: FM Muting
Direct/Line-Straight: no

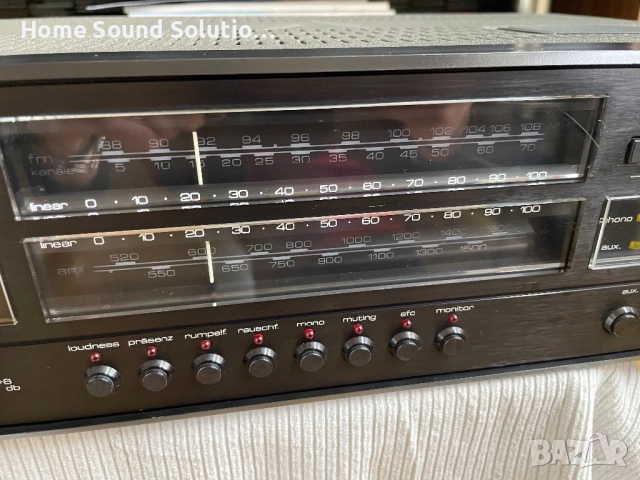

Tuner
Reception: FM, MW
Frequencies:
FM: 87.5 - 104 MHz
MW: 520 - 1,630 kHz
Frequency response:
Input sensitivity:
FM mono: 0.55 µV for 26 dB signal-to-noise ratio
FM stereo: 8 µV for 46 dB signal-to-noise ratio
MW: 4
Distortion factor:
FM: 0.2% / 0.25% (mono/stereo).
Signal-to-noise ratio: (extraneous voltage)
FM: 64 / 62 dB (mono/stereo)
Channel separation:
FM: 40 dB (1 kHz)
Selectivity:
FM: 80 dB
MW: 54 dB
Co-wave selection: 1.0 dB (1 mV, 300 Ohm)
Spurious wave selection:
Image frequency attenuation:
FM: 95 dB
MW: 52 dB
IF attenuation:
AM rejection: 55 dB (1 mV, 300 ohms).

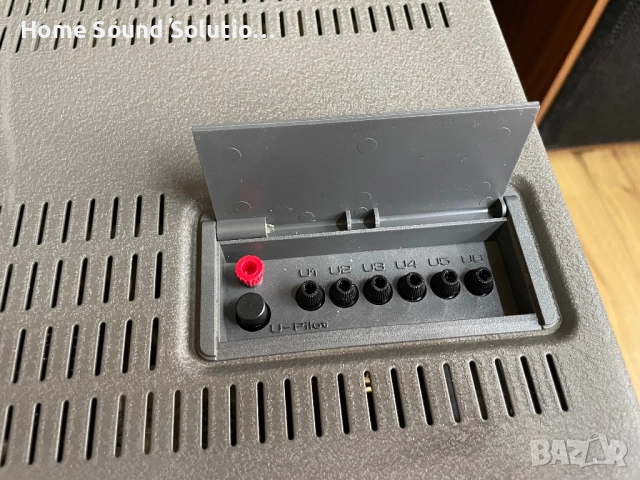

Station memory: no (model "9240 S": six)
Абсолютно всичко работи коректно .
Categorie: Amplificatoare
Brand: SABA
Stare: Produs utilizat
Tip amplificator: Stereo
Constructie: Receiver (tuner integrat)
Tehnologie: Solid state
Manufacturer: SABA
Model: Ultra Hifi professional 9240S electronic
Type: Receiver
Years of manufacture: 1977 - 1979
Made in: Germany
Power consumption: 350 Watt
Dimensions: 540 x 135 x 330 mm (WxHxD)
Weight: 13,5 kg
Original price approx.: 1'248 DM
Connections
Number of inputs:
Phono MM: 1.5 mV / 47 kOhm
2x tape, aux, monitor: 270 mV / 470 kOhm
Antenna FM (75/300 Ohm), MW.
Number of outputs:
2x Band
2x headphones
3 speaker pairs
Technical Data
Amplifier
Continuous power (at distortion)
8 Ohm: 2x 57 W
4 Ohm: 2x 70 W
Dynamic power
8 Ohm:
4 Ohm: 2x 120 W
Total harmonic distortion: 0.03% (at nominal power)
Attenuation factor:
Frequency response:
15 - 50,000 Hz (±1.5 dB).
Power bandwidth: 10 - 80,000 Hz (-3 dB)
Signal-to-noise ratio:
Stereo channel separation:
Tone control:
Bass: ±15 dB at 60 Hz
Treble: ±15 dB at 15 kHz
Presence switch: +6 dB 3 kHz
Loudness: yes
High Filter: 8 kHz (12 dB/octave)
Low Filter (Subsonic): 60 Hz (12 dB/octave)
Mute: FM Muting
Direct/Line-Straight: no
Tuner
Reception: FM, MW
Frequencies:
FM: 87.5 - 104 MHz
MW: 520 - 1,630 kHz
Frequency response:
Input sensitivity:
FM mono: 0.55 µV for 26 dB signal-to-noise ratio
FM stereo: 8 µV for 46 dB signal-to-noise ratio
MW: 4
Distortion factor:
FM: 0.2% / 0.25% (mono/stereo).
Signal-to-noise ratio: (extraneous voltage)
FM: 64 / 62 dB (mono/stereo)
Channel separation:
FM: 40 dB (1 kHz)
Selectivity:
FM: 80 dB
MW: 54 dB
Co-wave selection: 1.0 dB (1 mV, 300 Ohm)
Spurious wave selection:
Image frequency attenuation:
FM: 95 dB
MW: 52 dB
IF attenuation:
AM rejection: 55 dB (1 mV, 300 ohms).
Station memory: no (model "9240 S": six)
