SilverStone LaScala HTPC SST-LC13-B 2005 USB2 FireWire Black → Обява 52364528

• Specs: W430 x D434 x H163 mm, 2 x DVD, 2 x CR, 2 x HDD, standard front I/O ports, 1 x 92mm intake fan, 2 x 60mm exhaust fan

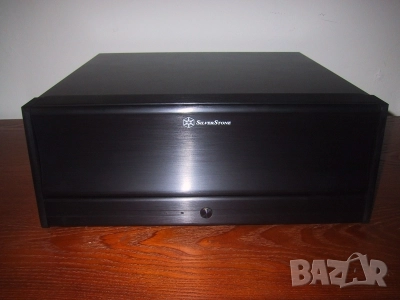

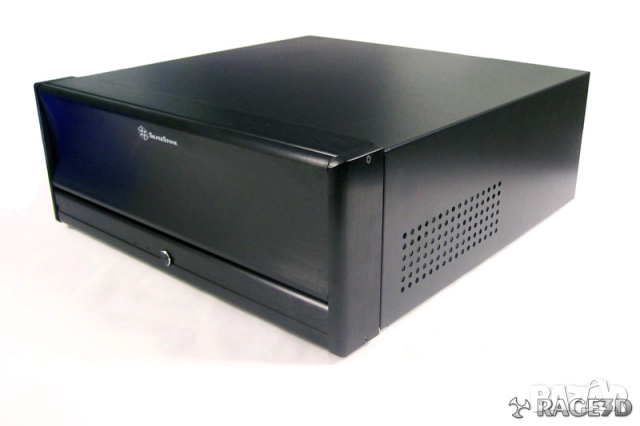

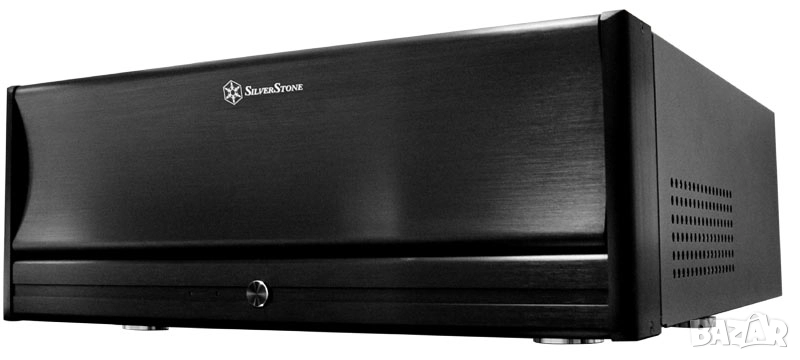

The SilverStone LaScala LC13—sold in black as SST-LC13-B and in silver as LC13-S—was a first-generation, full-size ATX HTPC chassis designed to look like hi-fi AV gear. Introduced in 2005, it paired a brushed-aluminum front with a steel chassis and a flip-down door that hid bays and front I/O. Unlike its later LC13-E refresh, the original LC13 uses two 60 mm rear exhaust fans and a single 92 mm front intake.

• Horizontal “AV-component” styling; matches stereo equipment footprint.


• Full-ATX compatibility in a desktop form factor (mATX and E-ATX supported with caveats).


• Focus on drive flexibility (two 5.25″ + two external 3.5″ + two internal 3.5″).


• Cooling built around 92 mm front intake + dual 60 mm rear exhausts.


• Clean fascia with no reset button, bright status LEDs, and a machined aluminum power switch.

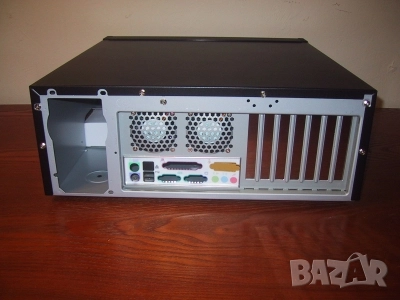

• Rear fans: LC13 = 2×60 mm; LC13-E/LC13B-E = 2×80 mm.


• Height: LC13 ≈ 163 mm; LC13-E ≈ 171.5 mm.


• Side fan mount: Absent on LC13; added on LC13-E.


• Front I/O: LC13 launched with USB 2.0 + IEEE-1394 + audio (later “-E USB3.0” refreshes are not this model).


• Model: SST-LC13-B (black finish)


• Materials: Aluminum front panel; SECC steel body (SilverStone lists 1.0 mm; some reviews cite 0.8 mm)


• Motherboards: ATX, microATX, E-ATX (requires removal of the internal 3.5″ cage; not all E-ATX boards fit)


• Drive bays:


  • External: 5.25″ ×2, 3.5″ ×2


  • Internal: 3.5″ ×2 (one is the “hidden” bay beneath the 5.25″ cage)


• Cooling (stock):


  • Front: 92 mm intake, ~2100 RPM, ~21 dBA (often Everflow F129025SL, ~39 CFM)

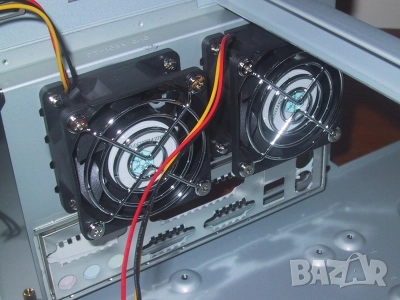

  • Rear: 60 mm ×2 exhaust, ~3000 RPM, ~25 dBA

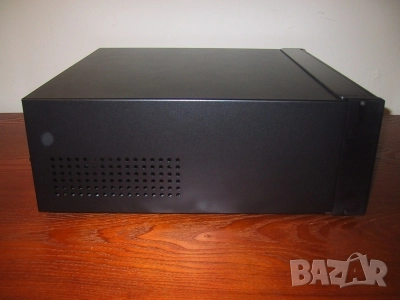

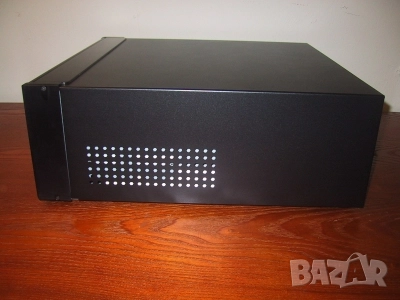

  • Side: passive intake perforations only


• Clearances:


  • CPU cooler: up to 135 mm


  • GPU length: up to 14.2″ (360 mm) without an optical drive; about 8.75″ (222 mm) with a 5.25″ device installed


  • PSU: Standard ATX (PS/2); no stated length limit; rotated to pull warm air from the CPU area


• Expansion slots: 7

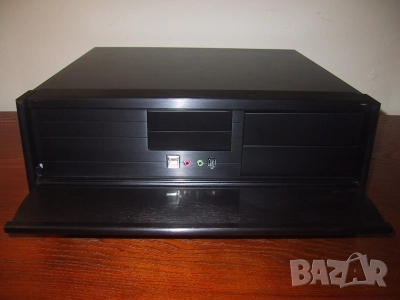

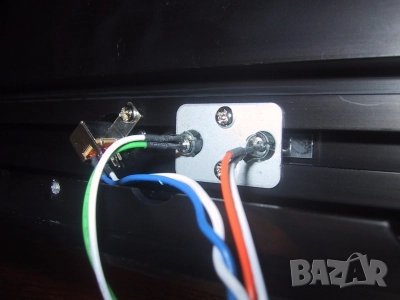

• Front I/O (behind door): USB 2.0 ×2, IEEE-1394 ×1, 3.5 mm headphone ×1, mic ×1


• Dimensions: 430 (W) × 163 (H) × 430 (D) mm (some retail sheets list 434 mm depth) — ~30.1 L


• Weight: ~9–9.5 kg (varies by sheet/revision)


• Colors: Black (SST-LC13-B), Silver (LC13-S)

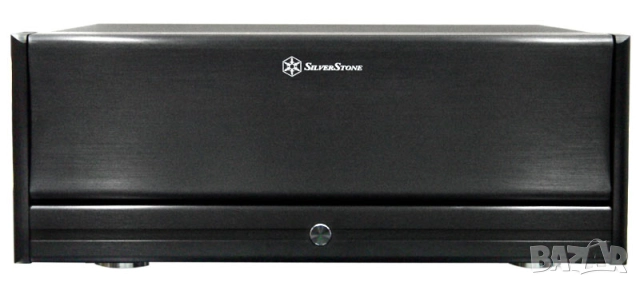

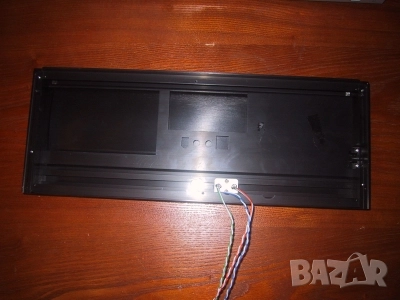

• Front door: Brushed aluminum, magnet-retained; geared hinges give a damped “glide.”


• Power/LEDs: Machined aluminum switch with bright power/HDD LEDs (often considered too bright for dark rooms).

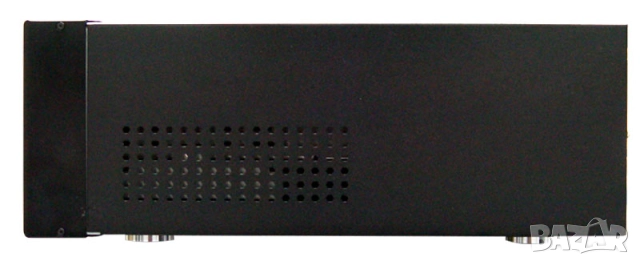

• Feet: Flat metal “hi-fi”-style feet.


• Air intake path: The 92 mm fan pulls air through a slot on the underside of the fascia; avoid placing the case on carpet that can block this slot.

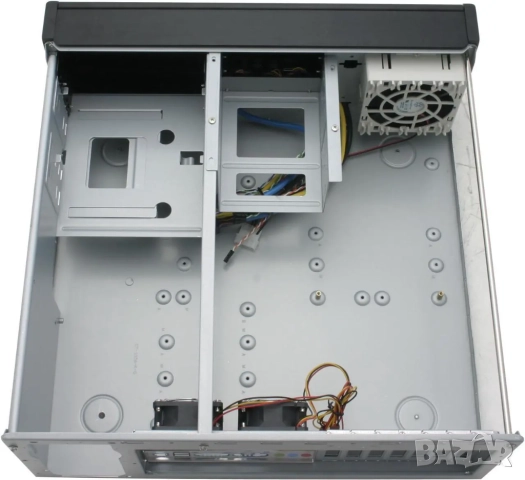

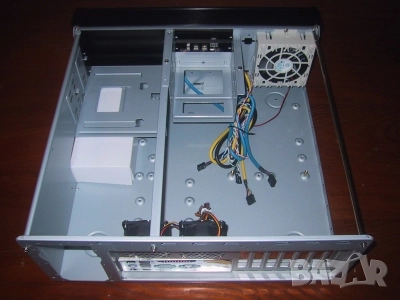

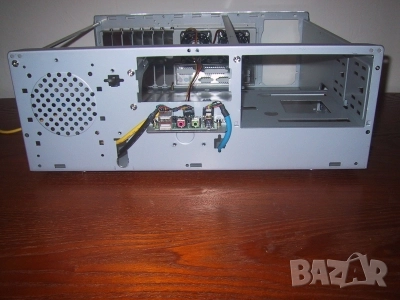

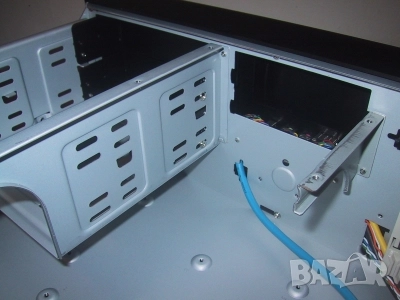

• Open main chamber for easy motherboard installation; top cover removes via four screws.


• Removable cages:


  • Right-side internal 3.5″ cage (comes out to fit some E-ATX boards).


  • A slide-out hidden 3.5″ bay beneath the 5.25″ cage for convenient HDD access.


• Cable management: Room behind/under the drive cages to route PSU and data cabling.

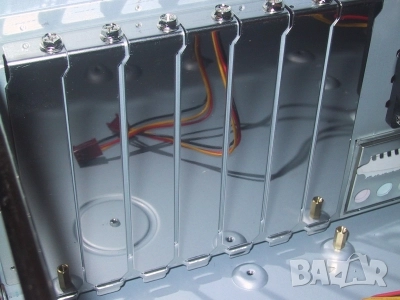

• Finish details: Full set of seven expansion slots; many units shipped with polished slot covers.


• Air path is front-to-back with side perforations aiding intake.


• Stock 60 mm exhausts and the stock 92 mm intake are effective but audible at default RPMs; many owners swap them for quieter models or voltage-control them.


• The PSU turned sideways helps extract CPU heat directly out the rear.


Commonly reported contents (may vary slightly by region/batch):

• Chassis with pre-installed 92 mm intake and 2×60 mm exhaust fans


• Screws & motherboard standoffs (assorted)


• 3-pin to 4-pin fan adapter


• Small accessories seen across packages: EMI/ferrite ring, zip ties; some retail boxes included a mains power cord

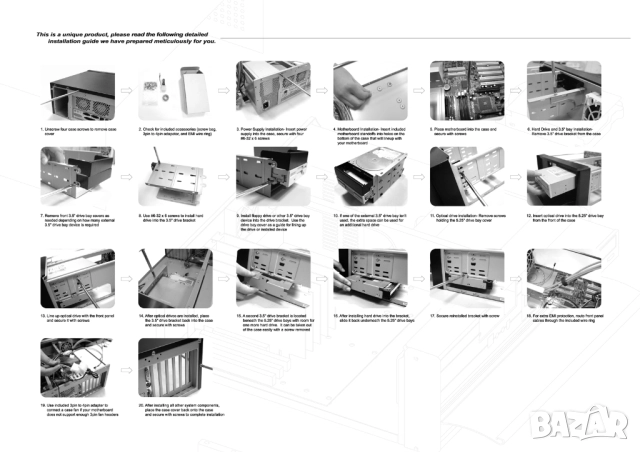

• Fold-out installation manual


• No reset button. Reboots require a full power cycle.


• Bright LEDs. Many users disconnect or diffuse them for theatre rooms.


• Rear fans are 60 mm. Limited to small form-factor exhausts unless you modify the panel.


• Top-right motherboard corner can sit under the 5.25″ cage—watch tall components/headers there.


• Front door magnet is gentle; an ejecting optical tray can nudge the door open (by design, to avoid tray stress).


• Replace the 92 mm and 60 mm fans with low-noise models or undervolt them.


• Add dust filtering to the underside intake slot and side perforations.


• Strengthen the door closure by adding discreet magnets behind the fascia.


• Use short/angled SATA and power cables to minimize clutter beneath the 5.25″ cage.


• LC13 / LC13-B (this model): 92 mm front + 2×60 mm rear; 163 mm high; USB 2.0 era; 2005–2006 availability.


• LC13-E / LC13B-E: Taller/deeper revision with 2×80 mm rear, optional side fan mount, and later USB 3.0 front-I/O refreshes.


• Contemporary siblings included other LaScala models (LC17/LC20) sharing the AV-component aesthetic but different internals.


• Model: SilverStone SST-LC13-B


• Size/Volume: 430×163×430 mm, ~30 L


• Weight: ~9–9.5 kg


• Motherboards: ATX / mATX / E-ATX*


• Bays: 5.25″×2 (ext), 3.5″×2 (ext), 3.5″×2 (int)


• Cooling: 92 mm front (intake) + 2×60 mm rear (exhaust); side perforations


• Clearances: CPU 135 mm; GPU 14.2″ (no ODD) or 8.75″ (with ODD)


• PSU: Standard ATX (PS/2), sideways mount


• Front I/O: USB 2.0×2, IEEE-1394×1, Audio/Mic


• Finish: Brushed aluminum door; black or silver


• Notable: No reset button; bright LEDs; door with magnet + gear hinge


• *E-ATX note: Requires removing the internal 3.5″ cage; not all E-ATX boards fit.
