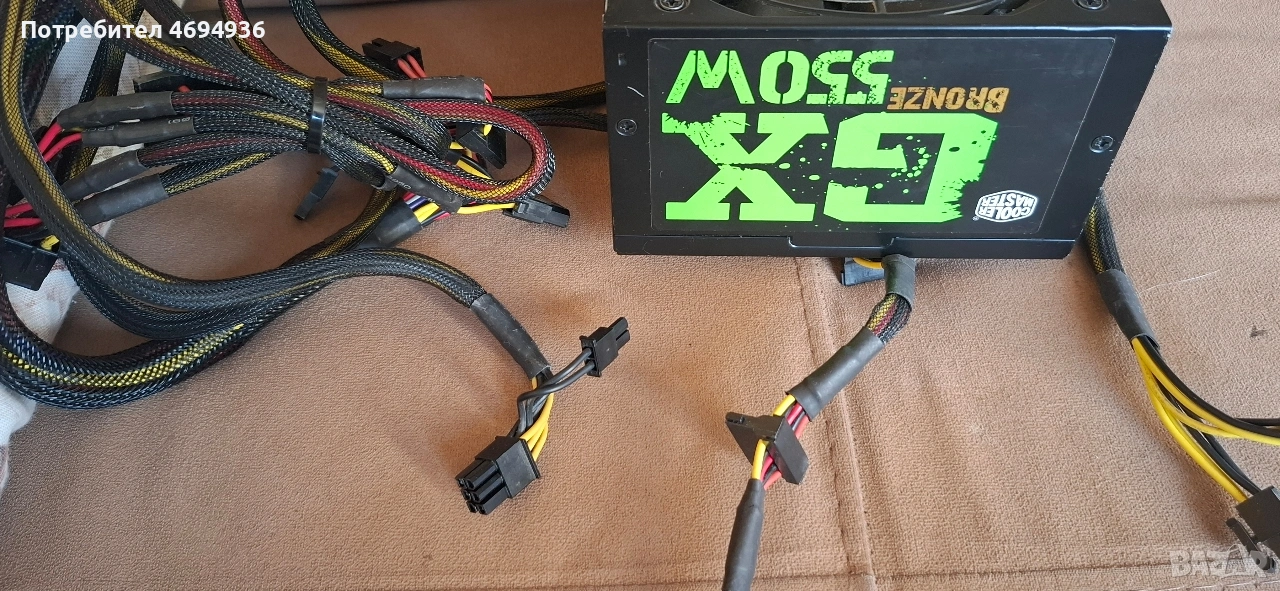

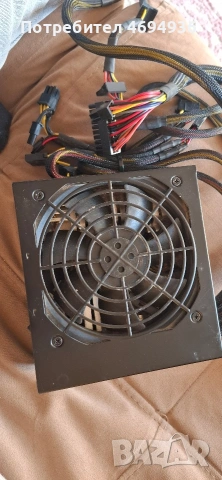

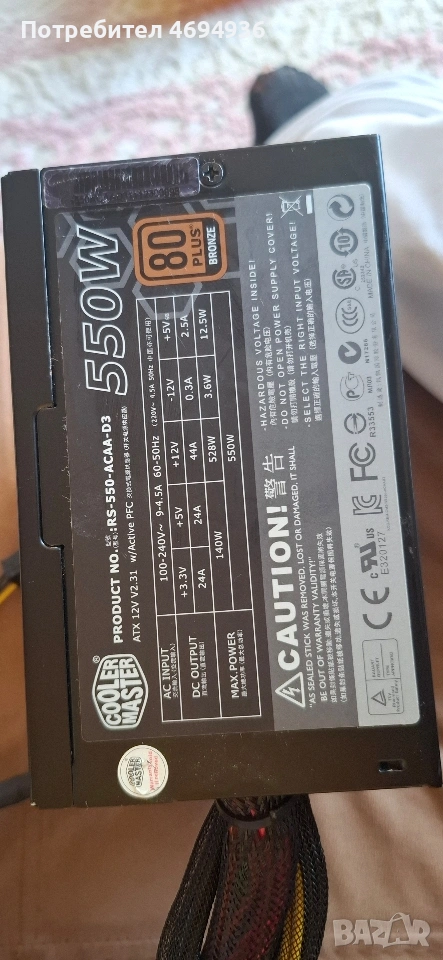

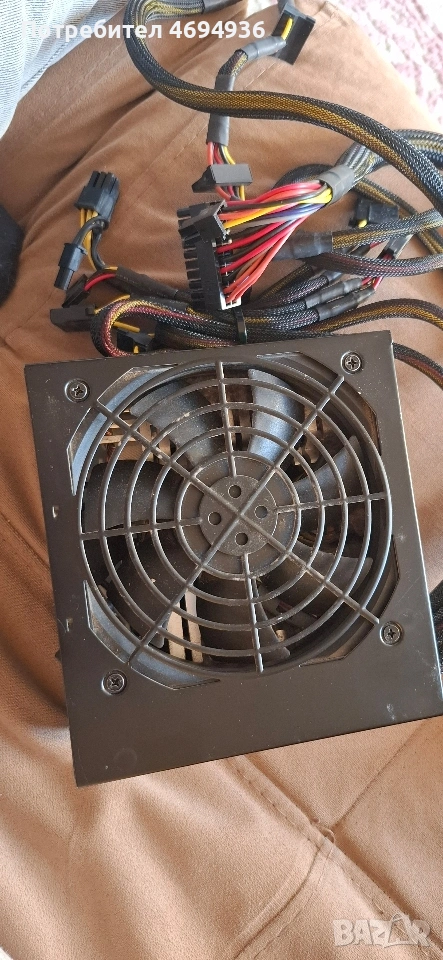

Model RS-550-ACAA-E3 Type Intel Form Factor
ATX 12V V2.31 Dimension (W / H / D) 150 x 140 x 86 mm 5.9 x 5.5 x 3.4 inch Input Voltage 90-264Vac (Auto Range) Input Current 7A@115Vac, 5@230Vac Input Frequency Range 47-63Hz PFC Active PFC (>0.9) Power Good Signal 100~500ms Hold Up Time >17ms Efficiency 85% typical MTBF >100,000 hours Protection OVP / UVP / OPP / OTP / SCP Output Capacity 550W Max. Output Capacity 660W Operation Temperature 0~40°C (Nominal Input Voltage) Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / CCC / KCC Fan 120mm Certifications 80 PLUS Connector 20+4 Pin MB x 1 4+4 Pin CPU 12V x 1 6+2 Pin PCI x 2 SATA x 6 4 Pin Peripherial x 3 4 Pin Floppy x 1
