Technical data
Tape heads:
- Recording/Playback: High-B Permalloy Type
- Eraser head: Ferrite core
- Motors: 1 electronically controlled DC motor
- Wow and flutter: 0.1% DIN, 0.07% Wrms
- Band types: Standard, Chrome, Metal
Frequency response at -20dB output:
- Normal, LH: 30Hz - 14kHz, +/-3dB
- Chrom: 30Hz - 15kHz, +/-3dB
- Metall: 30Hz - 17kHz, +/-3dB
Signal-to-noise ratio: WTD 0dB=580mV Chrome:
- Dolby NR: 64dB
- Dolby off: 55dB
Input sensitivity and impedance:
- Mic: 300µV 10kOhm
- Tape in: 25mV 47kOhm
Output voltage:
- Headphones: 360mV 40 Ohm
- Rewind time C-60: 80s
Tape type switching Bias/Equalizer:
- Normal: 100% 120µs
- Chrom: 150% 70µs
- Metal: 200% 70µs
- Dolby: NR switchable

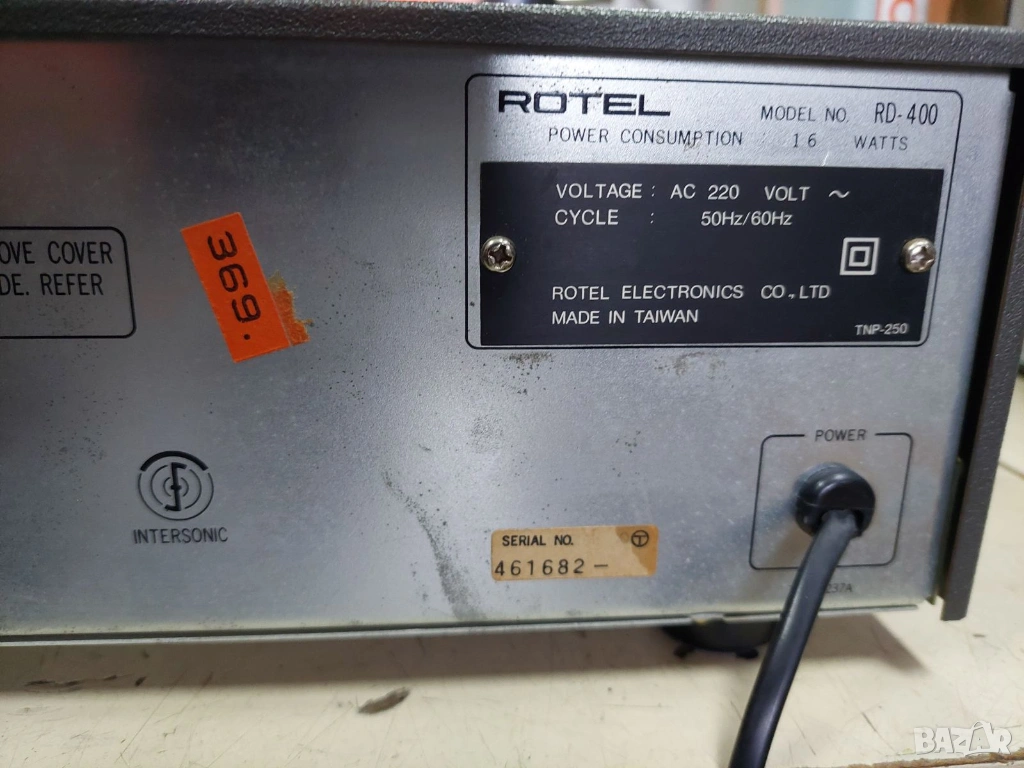

Power consumption: 16W
Dimensions (W x H x D): 430 x 120 x 260 mm
Weight: 4.6 kg
