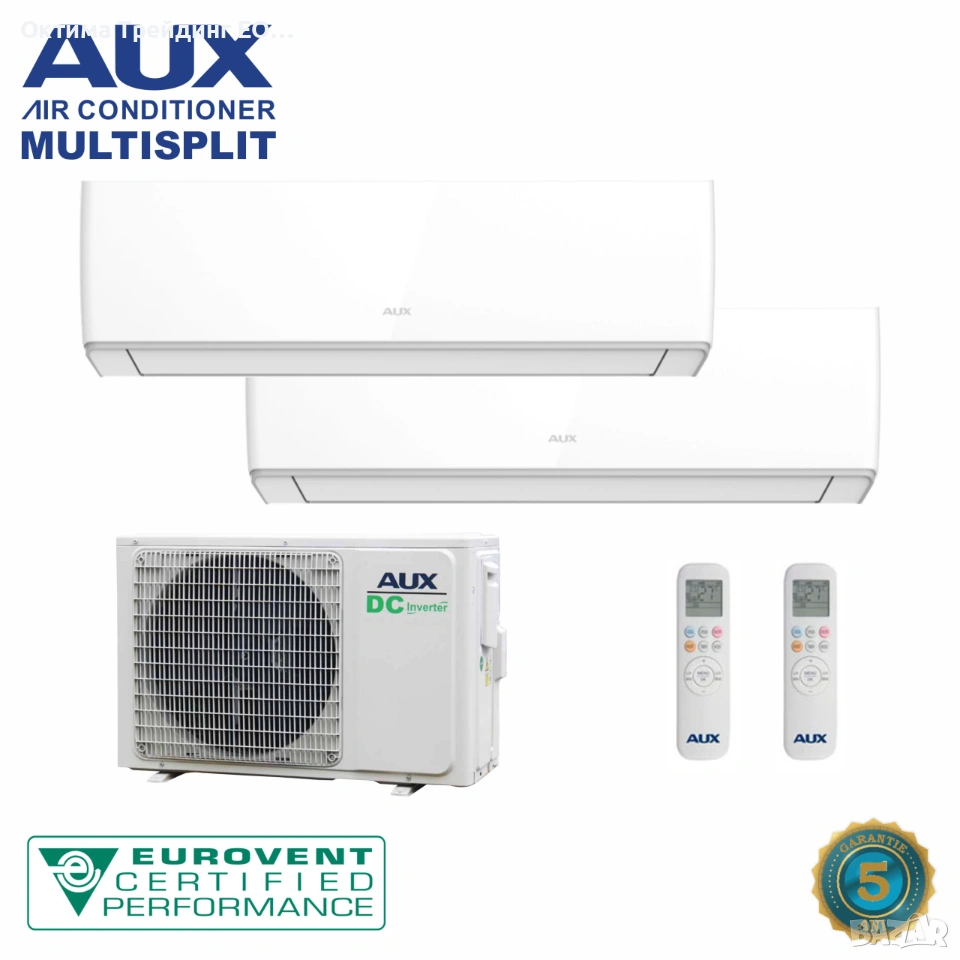

1 x External Unit: AM3-H27/4DR3C – 27,000 BTU
1 x Indoor Unit: AMWM-H12/4R3C(H) – 12,000 BTU
1 x Indoor Unit: AMWM-H18/4R3C(H) – 18,000 BTU
Discover performance and elegance in air conditioning your home with the AUX H Series multisplit indoor unit . Designed for efficiency and comfort, this unit offers optimal cooling and heating capacity, while energy consumption remains low.
Main technical specifications:
Overall capacity: 12,000 BTU
Cooling capacity: 12,000 BTU
Heating capacity: 13,000 BTU
Supply voltage: 220 – 240 V
Nominal cooling capacity: 3.5 (0.8–4.1) kW
Indoor unit air flow: 600 m³/h
Noise level: 62 dB
Dimensions (WxDxH): 788 x 292 x 198 mm
Weight: 9.5 kg
Outstanding features:
Elegant design: Hidden air outlet, Japanese style, with a visual thickness of only 145 mm.
High-density filter: 20% more efficient than standard filters for cleaner air.
Nanometer protective foam: Moisture-resistant, retains heat and increases the durability of the unit.
Easy installation: Switch-type sealing button instead of screws, for quick assembly and maintenance.
Wave-shaped air guide vane: The air flow is uniform and the temperature distribution is optimal.
Integrated circuit board (12K only): Quick replacement and repair by simply accessing the unit panel.
Choose the AUX H Series AMWM-H12/4R3C(H) for a perfect combination of performance, energy efficiency, and modern style in any room.
The AUX AMWM-H18/4R3C(H) – 18,000 BTU indoor unit is the ideal solution for air conditioning medium and large spaces. It offers superior performance, modern design and advanced functionalities for maximum comfort and reduced energy consumption.
Overall capacity: 18,000 BTU
Cooling capacity: 18,000 BTU
Heating capacity: 19,000 BTU
Supply voltage: 220 – 240 V
Air flow: ~850 m³/h
Noise level: 62–65 dB
Dimensions (WxDxH): 970 × 300 × 224 mm
Weight: ~12.5 kg
Elegant design with hidden air outlet – Japanese line, compact, suitable for any interior decor.
High-density filter – captures more impurities and dust, improving air quality.
Nanometric protective foam – moisture resistance and high thermal performance.
Easy installation – switch-type sealing button system, no screws.
Wave-shaped air guide vane – uniform distribution of air flow throughout the room.
Quick access to the electronic board – for simple maintenance and repairs.
Cooling capacity: 27,000 BTU (≈ 7.9 kW)
Heating capacity: 28,000 BTU (≈ 8.2 kW)
System format: 1 external unit → up to 3 internal units
Power supply: 220 – 240 V
Cooling power consumption: ~2.5–3.5 kW
Heating power consumption: ~2.7–3.6 kW
Maximum current: ~18–20 A
SEER: > 6.1
GOAL: > 4.0
Energy class: A++ cooling / A+ heating
Refrigerant: R32 – environmentally friendly (ODP = 0, low GWP)
Operating temperature: -15~52°C cooling / -15~24°C heating
Dimensions (WxDxH): ~950 × 395 × 810 mm
Weight: ~65–70 kg
DC Twin Rotor Inverter compressor – fast cooling and heating, low consumption.
3-speed fan motor – constant air flow and low noise.
Smart standby – reduced consumption to just 0.5 W/hour.
Advanced protection – against overpressure, overcurrent, freezing and voltage variations.
Auto-Restart Function – automatically restarts with previous settings after a power outage.
Wide operating range – works reliably even at extreme temperatures (-15°C to +52°C).
Environmentally friendly refrigerant R32 – high efficiency and low environmental impact.
