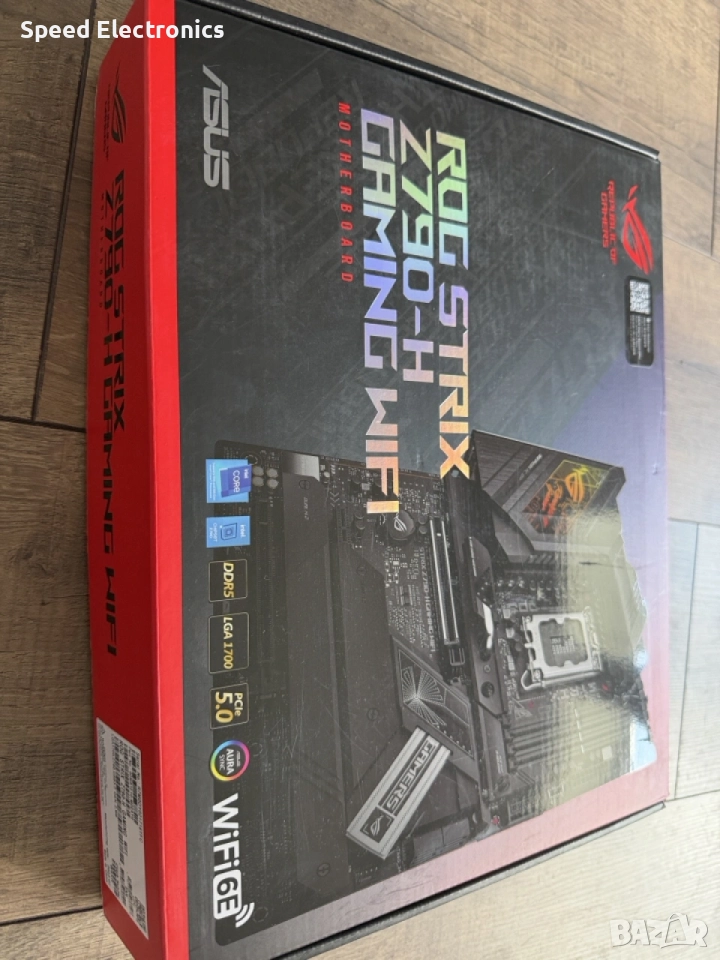

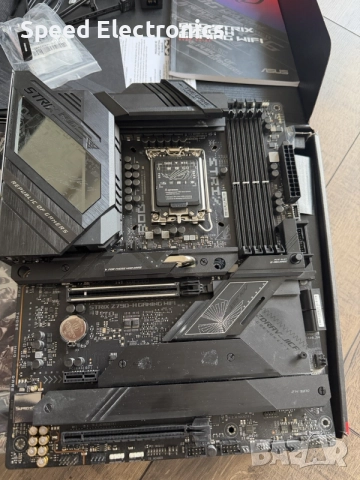

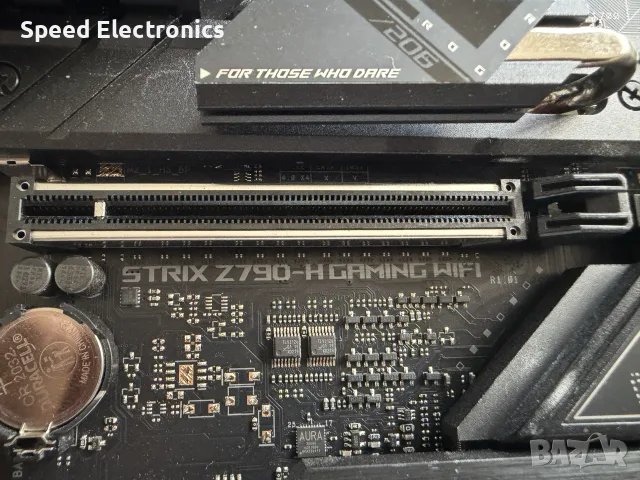

ROG STRIX Z790-H GAMING WIFI → Обява 55675478

Дънната платка дефектира след опит за ъпдейт на биоса !

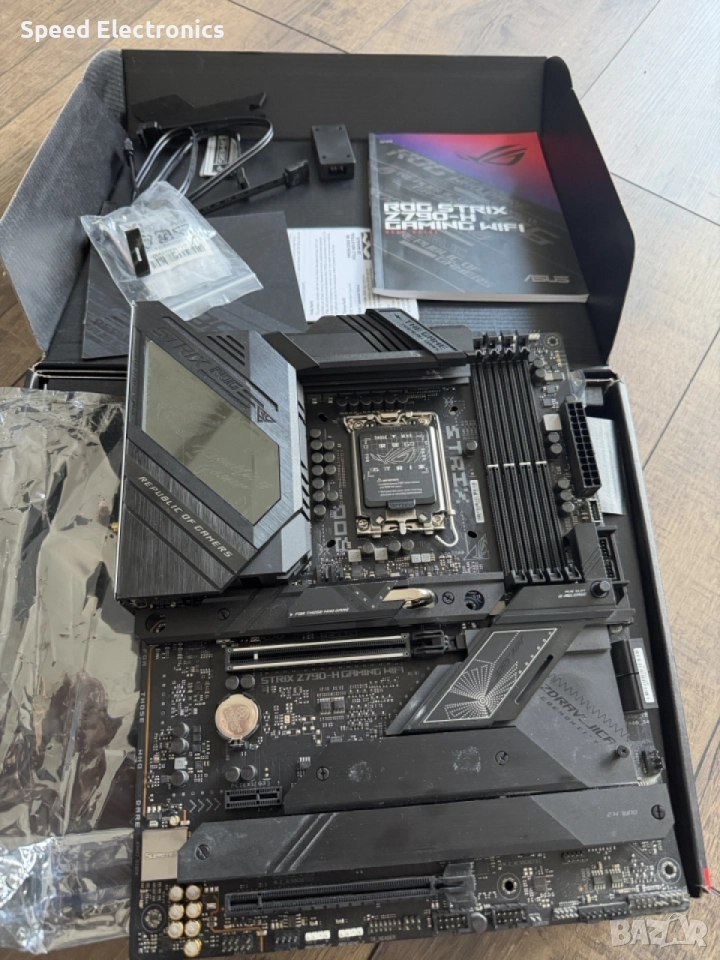

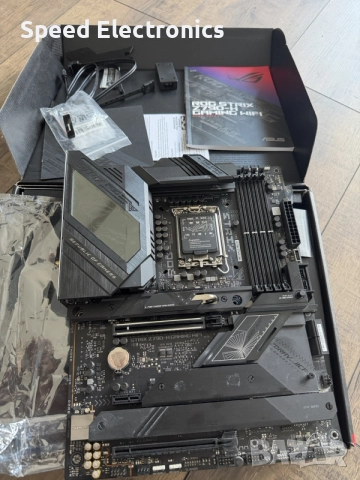

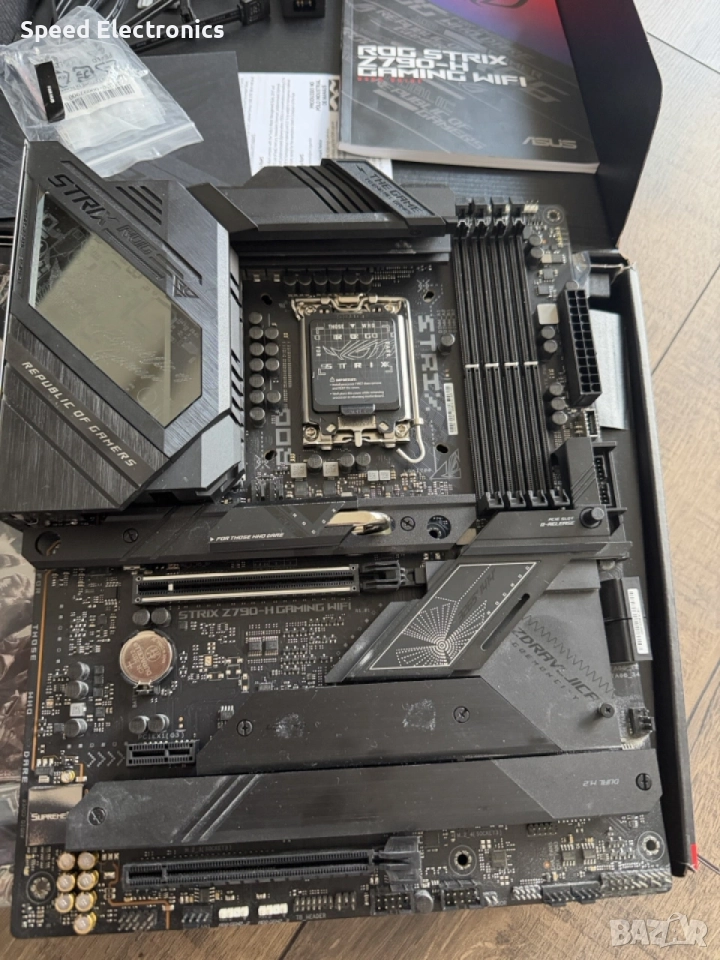

След включване към захранването започва да свети ргб осветлението, но вентилаторите не стартират. Пълен комплект, без антената!

В много добро състоямие, не са правени опити за ремонт!

Intel
®

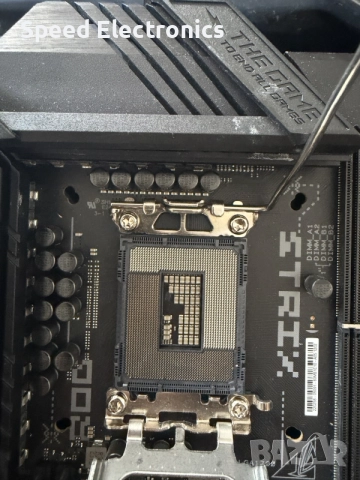

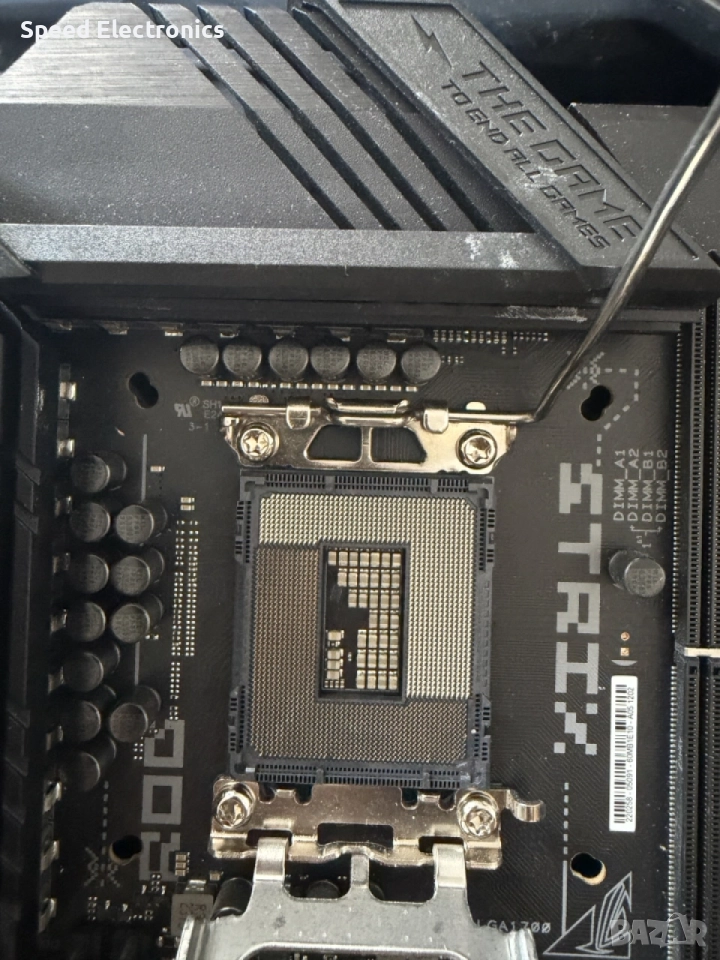

Socket LGA1700 for Intel
®

Core™ 14th & 13th Gen Processors, Intel
®

Core™ 12th Gen, Pentium
®

Gold and Celeron
®

Processors*
Supports Intel
®

Turbo Boost Technology 2.0 and Intel
®

Turbo Boost Max Technology 3.0**
* Refer to
www.asus.com
for CPU support list.
** Intel
®

Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel
®

Socket LGA1700 for 13th Gen Intel
®

Core™ & 12th Gen Intel
®

Core™, Pentium
®
Gold and Celeron
®

Processors*
Supports Intel
®

Turbo Boost Technology 2.0 and Intel
®

Turbo Boost Max Technology 3.0**
* Refer to
www.asus.com
for CPU support list.
** Intel
®

Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel
®

Z790 Chipset

Memory
4 x DIMM, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel
®
Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
https://www.asus.com/support/

** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics
1 x DisplayPort**
1 x HDMI
®

port***
* Graphics specifications may vary between CPU types. Please refer to
www.intel.com
for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

1 x DisplayPort**
1 x HDMI
®

port***
* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

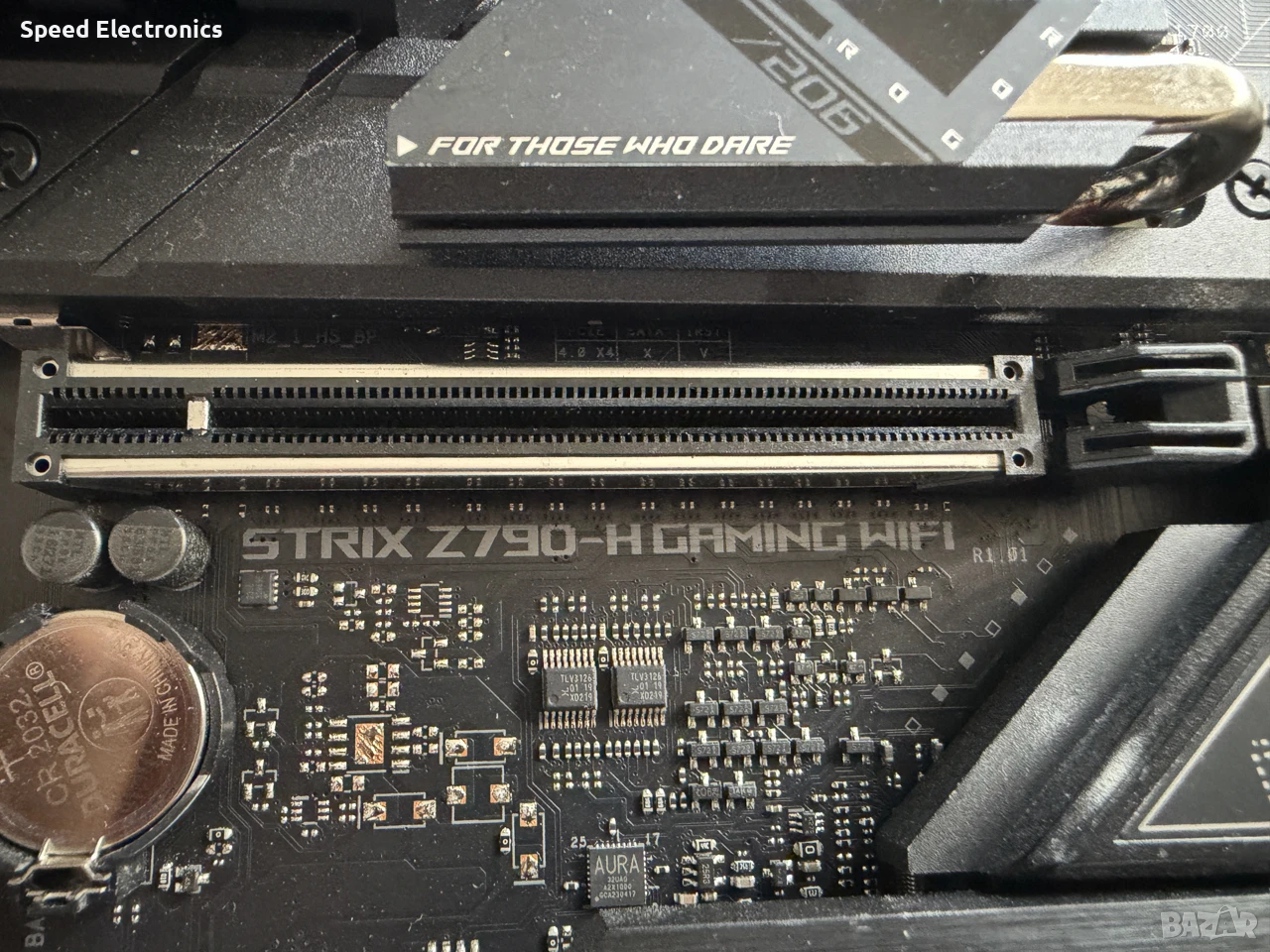

Expansion Slots
Intel
®

13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel
®

Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table
on the support site (
https://www.asus.com/support/FAQ/1037507/
).
** To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/
for the list of supported peripherals.

Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel
®

13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel
®

Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel
®

Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet
1 x Intel
®

2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth
®

v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C
®

)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C
®

)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)1 x USB 3.2 Gen 2x2 connector (supports USB Type-C
®

)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback*Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover*Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

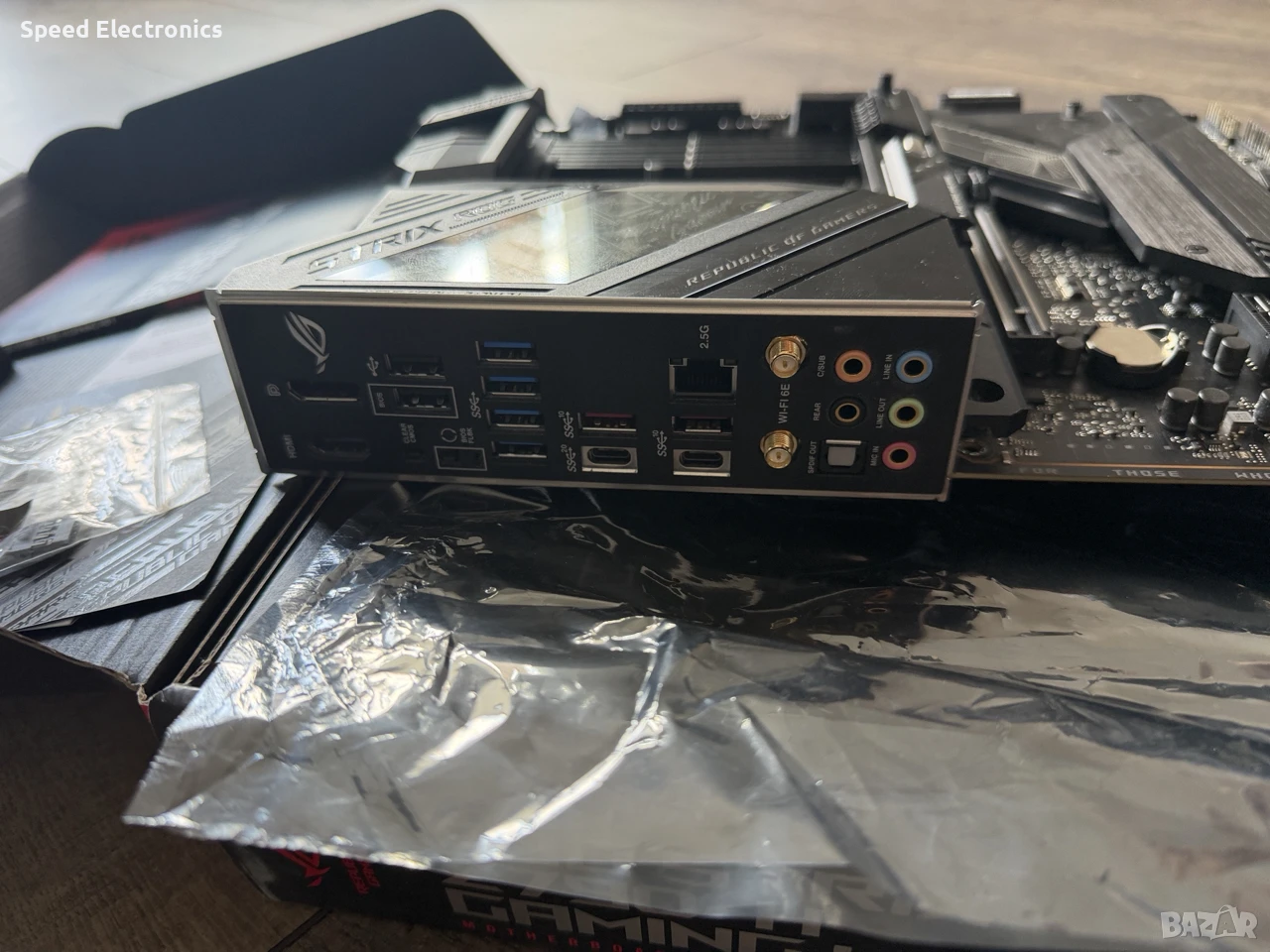

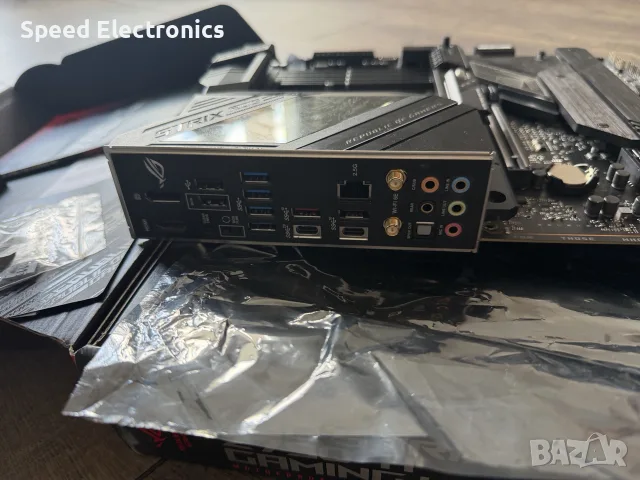

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C
®

)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C
®

)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI
®

port
1 x Wi-Fi Module
1 x Intel
®

2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C
®

)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features
Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headers

Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS
®
Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
- System Information
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 backplate Q-Latch package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card2 x M.2 Rubber Packages1 x M.2 backplate Rubber PackageDocumentation1 x User guide

Operating System
Windows
®

11, Windows
®

10 64-bit

Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
