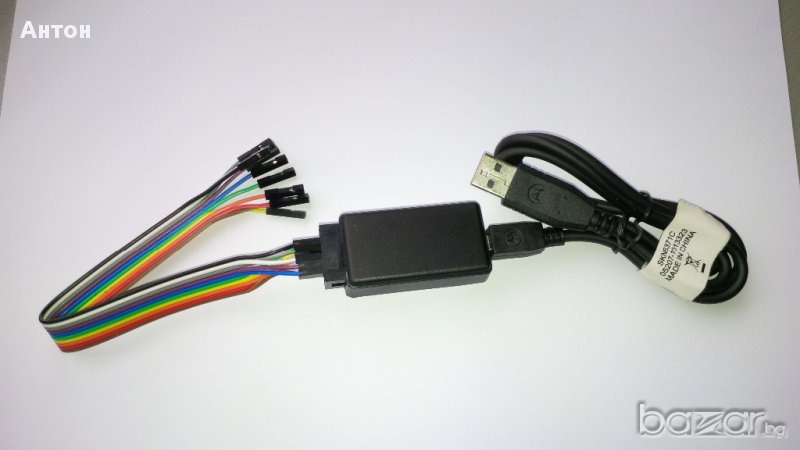

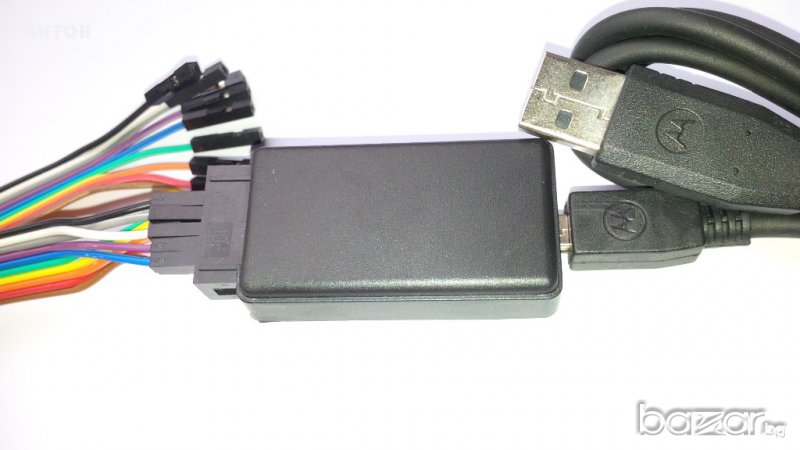

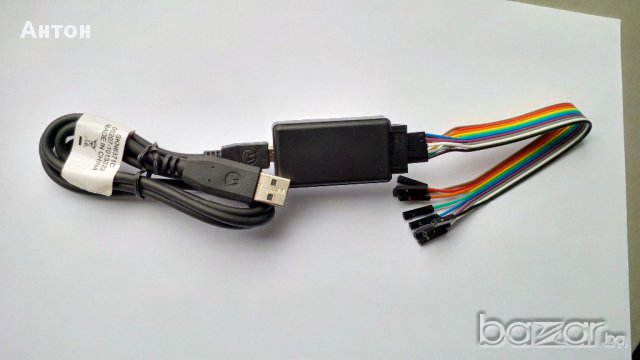

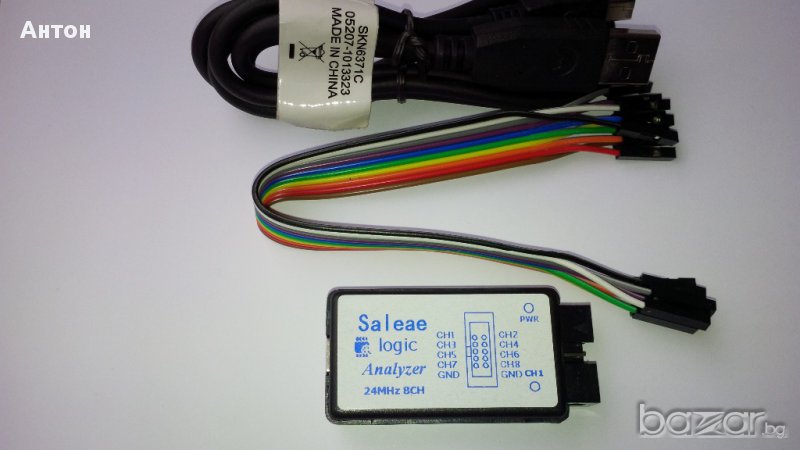

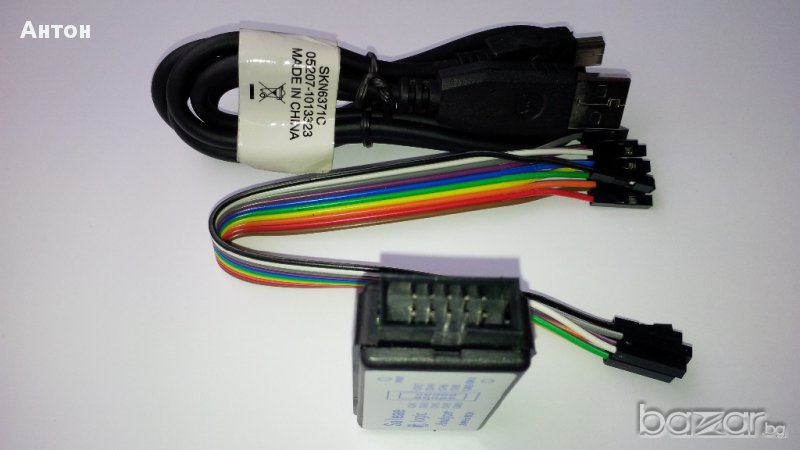

USB логически анализатор
Параметри:
Входно съпротивление: 100 кОм
Sampling rate: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

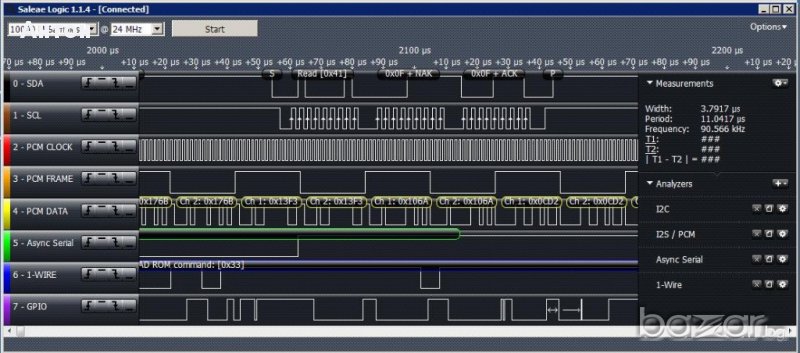

Софтуера е безплатен, работи с по-старите версии до 1.1.20 и може да се свали от тук :
https://support.saleae.com/logic-software/legacy-software/older-software-releases#1.1.20-download
Logic Analyzer Parameter:

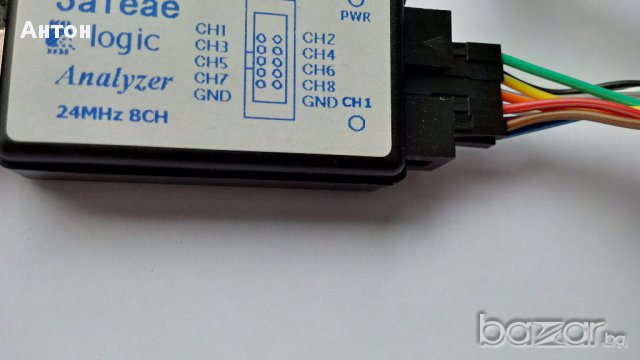

2.Logical light indication: a small light indicate CHO electrical level;
5.Sampling rate can be seted as below:
24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
6. Data upload real time,the max of depth of collection is 10T,far from practical need.
analyser high input resistance and impedance analyzer
