Продавам оригинален LED панел 1366x768 за Lenovo, Acer, Toshiba и др. → Обява 19104610

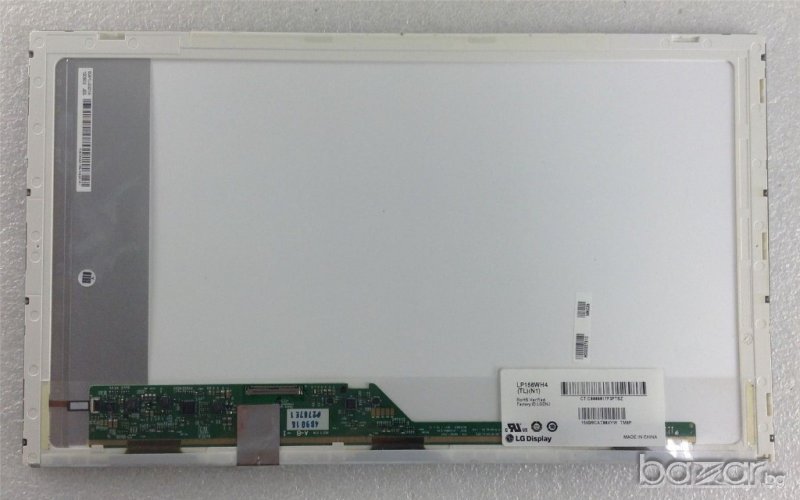

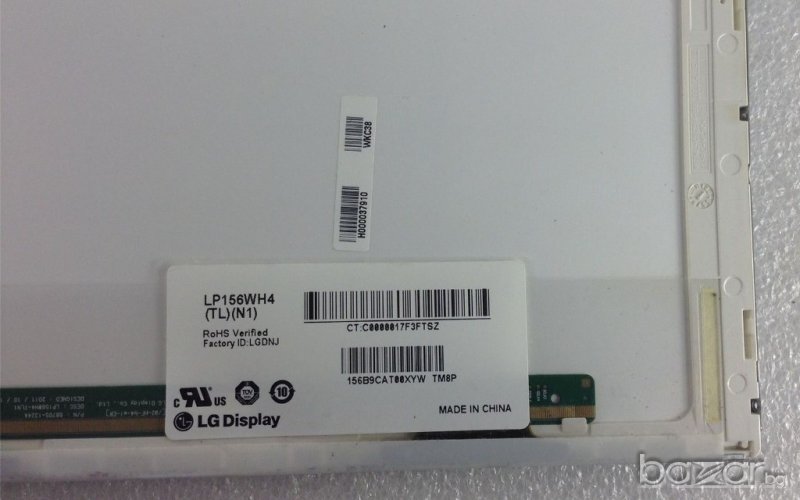

Продавам оригинален LED панел дисплей 1366x768, LG Display Screen LP156WH4 (TL) (N1). Свален е от лаптоп Lenovo, но е съвместим и с всички други марки и модели лаптопи със същия тип дисплей с 40-pin букса.

130 лв.

0888686070

Technical Specifications

Panel Model: LP156WH4-TLN1

Panel Brand: LG Display

Descrition: a-Si TFT-LCD ,15.6 inch, 1366×768

Panel Type: a-Si TFT-LCD

Model Alias: LP156WH4 (TL)(N1)

Operating Temperature: 0 ~ 50 °C

Storage Temperature: -20 ~ 60 °C

Remarks: Lenovo P/N : 0A66660, FRU P/N : 04W3340

Dot Resolution: 1366(RGB)×768 (WXGA)

Pixel Configuration: RGB Vertical Stripe

Pixel Density: 100 PPI

Aspect Ratio: 16:9 (H:V)

Form Factor: Flat Rectangle Display

Dot Pitch: 0.084×0.252 mm (H×V)

Pixel Pitch: 0.252×0.252 mm (H×V)

Weight: 420g (Max.)

Surface: Glare (Haze 0%)

Active Area: 344.232×193.536 mm (H×V)

Bezel Area: 350.0×197.1 mm (H×V)

Outline Dimension: 359.3×209.5 mm (H×V)

Outline Depth: 5.5 (Max.) mm

Shape Style: Wedge (PCBA Bent, Depth ≥5.2mm)

Holes & Brackets: Side mounting holes (8-M2) on left, right bezel

Type: Landscape

Display Mode: TN, Normally White, Transmissive

Brightness: 220 cd/m² (Typ.)

Contrast Ratio: 500 : 1 (Typ.) (Transmissive)

Display Color: 262K (6-bit)

Color Gamut: 60% NTSC (CIE1931)

Response Time: 16 (Typ.)(Tr+Td)

Viewing Angle: 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction: 6 o'clock

White color Chromaticity: Wx:0.313; Wy:0.329

White Variation: 1.25/1.67 (Max.)(5/13 points)

Sunlight Readable: Vertical Frequency

Vertical Frequency: 60Hz

Reverse Scan: No

Total Power Consumption: 4.3W (Typ.)

Lamp Position: Edge light type

Lamp Type: WLED

Lamp Amount: 4 strings

Lamp Shape: 4 strings

Interface Type: Included in panel signal interface

Lamp Driver Board: 3.6/3.9W (Typ./Max.)

Signal Category: LVDS

Signal Class: LVDS (1 ch, 6-bit)

Input Voltage for Panel: 3.3V (Typ.)

Input Current for Panel: 220/255mA (Typ./Max.)

Panel Power Consumption: 0.7/0.8W (Typ./Max.)

Interface Type: Connector

Signal Interface: LS Mtron - GT05Q-40S-H10-MN

Pitch: 0.5 mm

Pin: 40 pins
