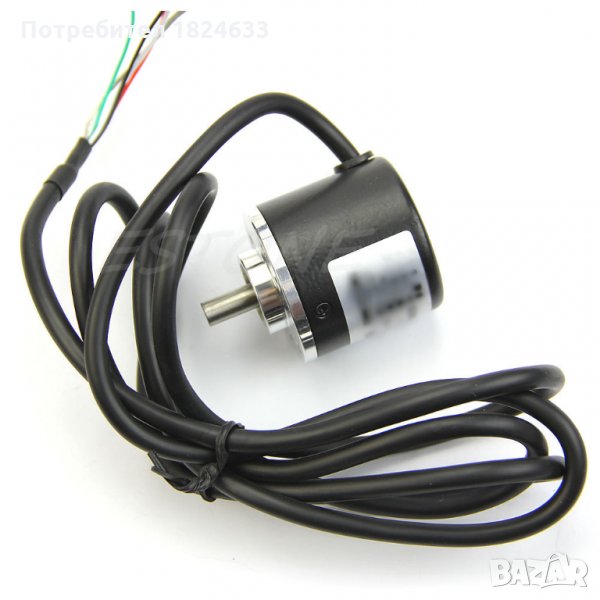

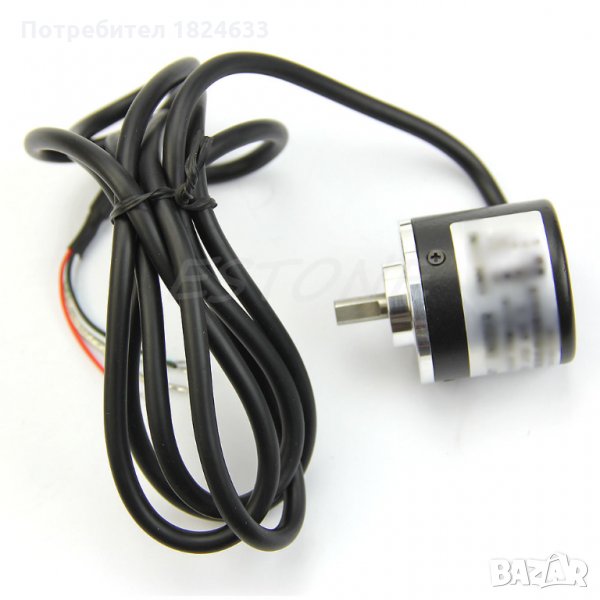

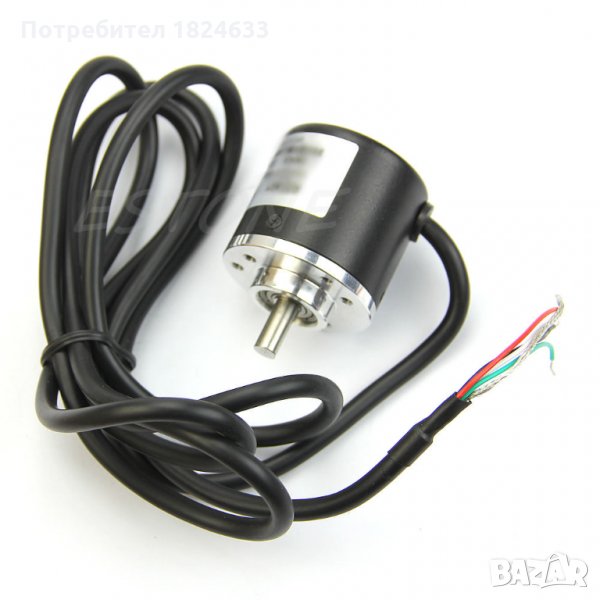

Енкодер ъглов, електронен потенциометър, въртящ, цифров, АВ
360 импулса при пълно завъртане Захранване: 5-24VDC
има 10 бройки
https://youtu.be/-xNIQF7qoJo
360 p/r (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1440 pulses)
Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51"
Size: 38*35.5mm/1.49*1.39"
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
