Продавам дънна платка Gigabyte GA-G41M-Combo DDR2/3 Xeon ready → Обява 27040998

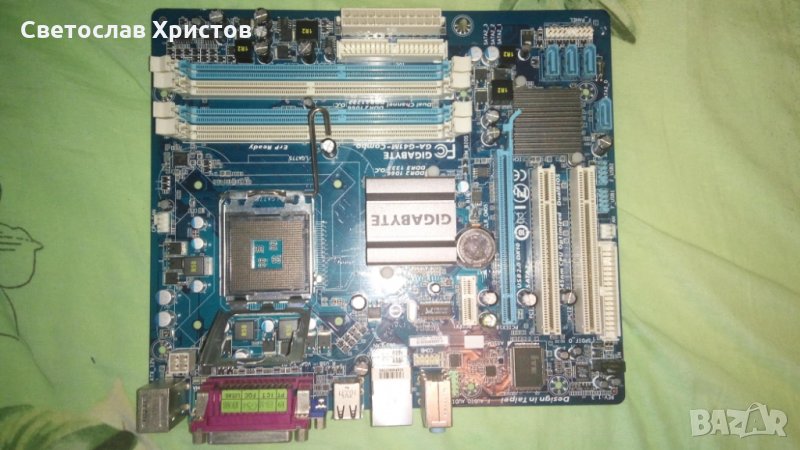

Продавам дънна платка Gigabyte GA-G41M-Combo DDR2/3 Xeon ready

Дъното е работещо и в перфектно състояние.

Поддържа процесори - цялата гама двуядрени и четириядрени процесори с.775, както и xeon от 3xxx/54хх сериите на шина до 1333MHz.

Поддържа до 8GB DDR2 1066/800/667

Поддържа до 8GB DDR3 1333/1066/800

Поддържа FSB 1333/1066/800MHz

Front Side Bus

1333/1066/800 MHz FSB

Chipset

North Bridge: Intel® G41 Chipset

South Bridge: Intel® ICH7

Memory

DDR3:

2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory

Dual channel memory architecture

Support for DDR3 1333(O.C.)/1066/800 MHz memory modules

DDR2:

2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory

Dual channel memory architecture

Support for DDR2 1066(O.C.)/800/667 MHz memory modules

(Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics

North Bridge:

1 x D-Sub port

Audio

VIA VT1708S codec

High Definition Audio

2/4/5.1-channel

Support for S/PDIF Out

Support for CD In

LAN

1 x Atheros AR8151 chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

South Bridge:

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718F chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

South Bridge:

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x clearing CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x D-Sub port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE IT8718F

H/W Monitoring

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU fan speed control (Note 2)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune (Note 3)

Support for Easy Energy Saver (Note 4)

Support for SMART Recovery

Support for Auto Green

Support for ON/OFF Charge

Support for Q-Share

Form Factor

Micro ATX Form Factor; 24.4cm x 21.0cm
