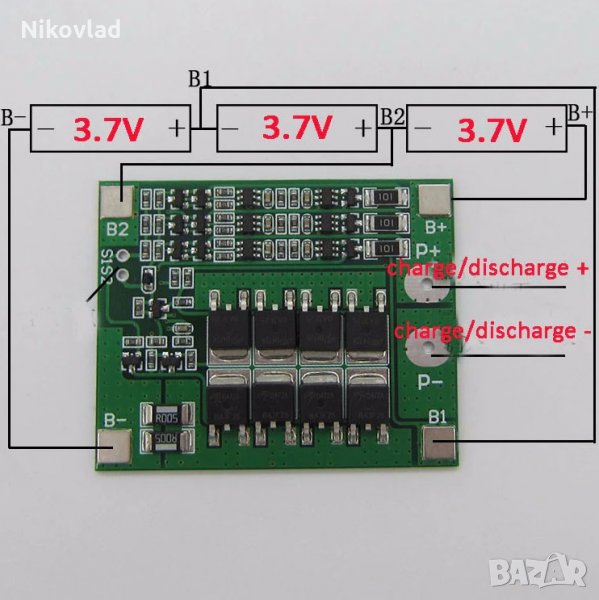

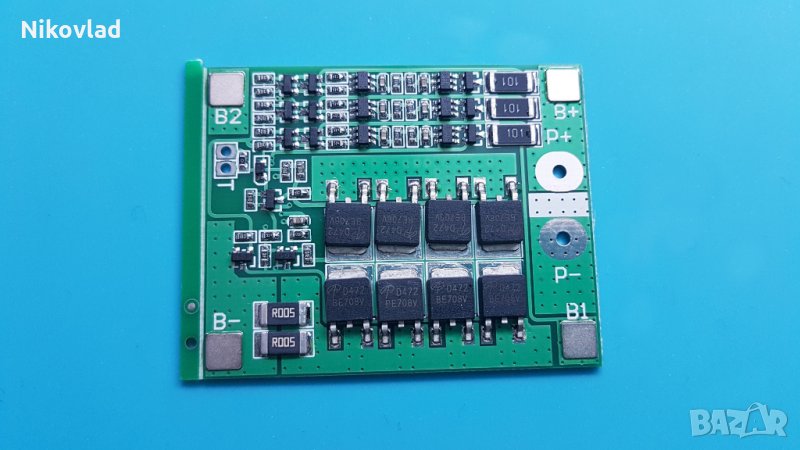

25A 3S Li-ion with Balance Battery Protection Board
Features:
- High-accuracy voltage detection circuit;
- Terminal of the charger using high voltage device;
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
- MOS transistor can control the battery charge and discharge;
- low standby current consumption.
- Over Charge voltage:4.25-4.35v±0.05v.
- Over Discharge voltage: 2.3-3.0v±0.05v.
- Max Working current:25A.
- Max peak current:35-40A.
- Working temperature:-40---+50.
- Storage Temperature:-40-- +80.
- Small current:50uA.
- Life cycle:more then 30000 hours.
- Resistance:Less than 100mΩ.
- Short Cut:Protectable,Charge can repair.
- Size:56*45*4.0mm.
