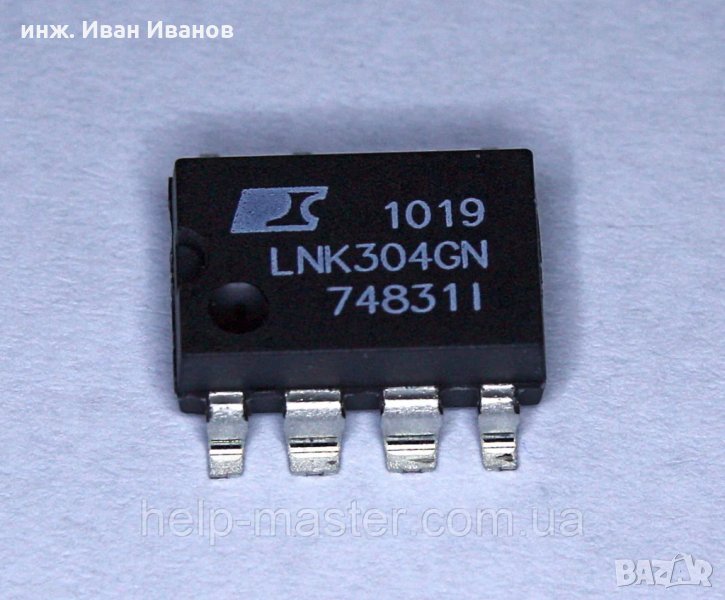

LNK304GN SMD драйвер 700V, 66kHz LinkSwitch-TN Family
Доставка
Лично предаване; Купувача

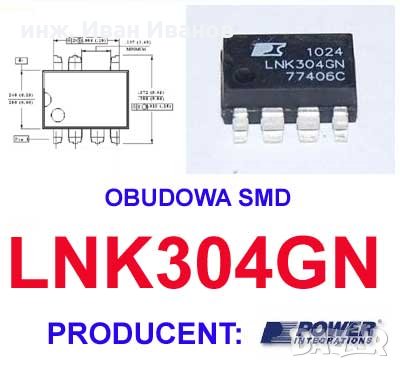

LNK304GN SMD LinkSwitch-TN Family
Производител: Power Integrations - USA
• Lowest cost and component count buck converter solution
• Fully integrated auto-restart for short-circuit and open loop fault protection – saves external component costs
• LNK304 uses a simplified controller without auto-restart for very low system cost
• 66 kHz operation with accurate current limit – allows low cost off-the-shelf 1 mH inductor for up to 120 mA output current
• Tight tolerances and negligible temperature variation
• High breakdown voltage of 700 V provides excellent input surge withstand
• Frequency jittering dramatically reduces EMI (~10 dB)
• Minimizes EMI filter cost
• High thermal shutdown temperature (+135 °C minimum)
This device is specifically designed to replace linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360 mA output current range. It integrates a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry.
Цени за количества от:
1-9 броя 3.00 лв
10+ броя 2.80 лв
Наличност : > 100 броя
Истински качествени американски чипове, а не измислици от Aliexpress
За София може лично предаване, а за страната изпращам по Еконт от офис до офис за минимизиране на транспортните разходи.
