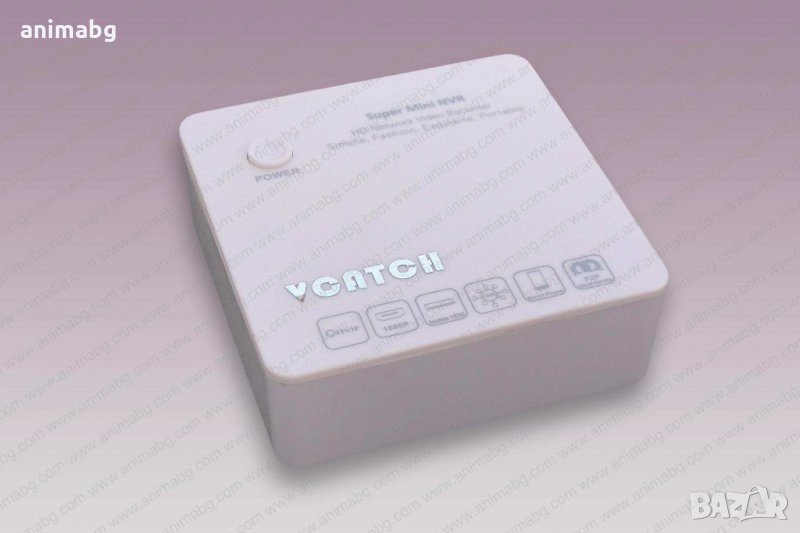

ANIMABG 8 канален мини NVR (за IP камери)
гр. Шумен Наблюдавай

Публикувана/обновена на 11 септември в 14:42 ч.

Състояние
Ново
Доставка
Купувача
ЗА ПОВЕЧЕ ИНФОРМАЦИЯ И ОЩЕ ИНТЕРЕСНИ СТОКИ МОЛЯ ПОСЕТЕТЕ НАШИЯ САЙТ

Всички цени са с включено ДДС.
При нужда издаваме данъчни фактури.
Разполагаме с голяма стокова наличност.

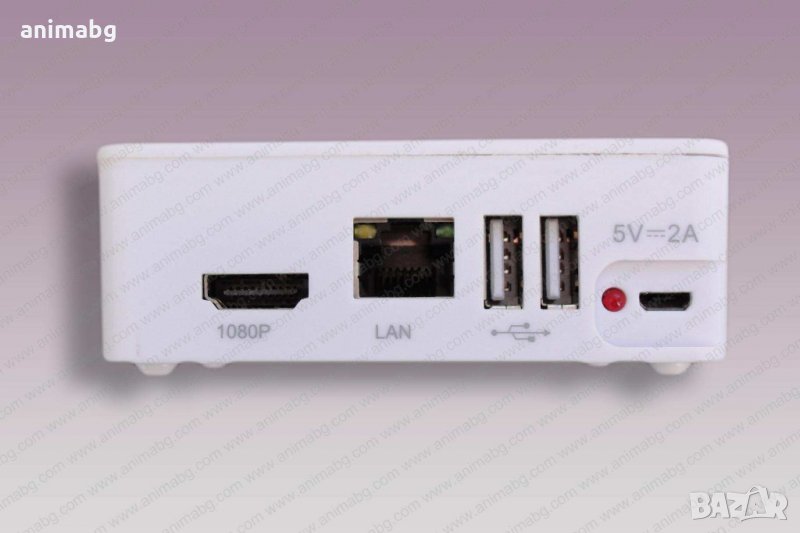

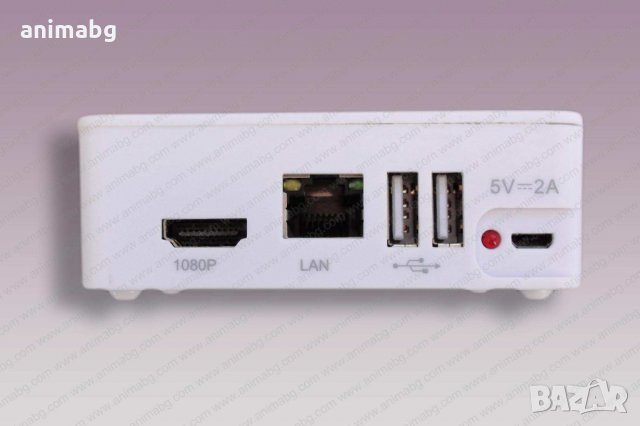

За да свържете повече от една IP камери с NVR-a трябва към RJ45 порта да свържете рутер или хъб.
Към USB портовете можете да свържете мишка, клавиатура и флаш памет.

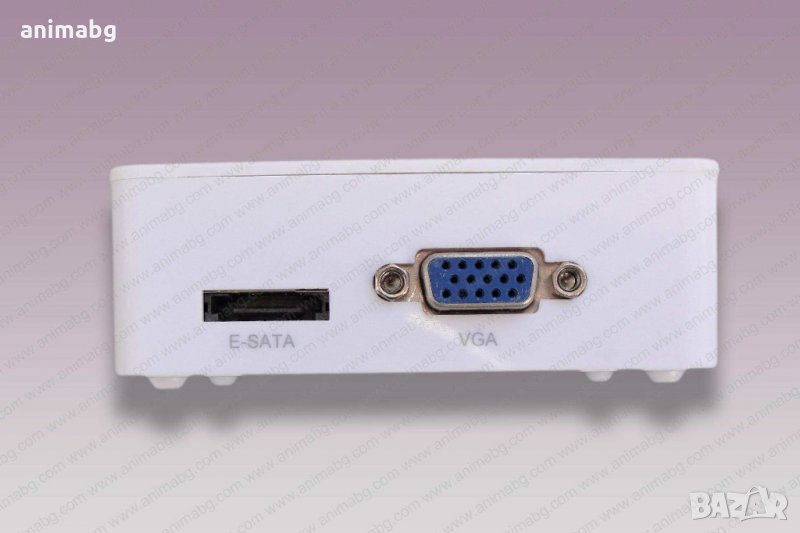

За да може да записва е необходимо към eSATA порта да се свържи хард диск.
Устройството работи с линукс базирана операционна система.
Изходи за монитор HDMI и VGA.

Features:

Support P2P Cloud Service

Can connect IP camera, IP speed dome camera and DVS

Support Onvif protocol

Compatible with main brand IP cameras: AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA etc.

Support megapixel HD network video preview, storage and playback

Click any area and zoom in or zoom out on the image by mouse

Support digital zooming under preview and playback modes

Support search, playback and backup by event

Support 8CH playback simultaneously

Specification:

Channel Number: 8CH

Operating System: Embedded LINUX operating system

Image Code Control: Image code quality adjustable, variable bitstream and constant bitstream optional

Dual Stream: Each channel can set main stream and sub stream

Video Standard: 1080P(1920×1080)30fps/ 960P/(1280×960)/ 720P(1280×720)30fps

Monitoring Image Quality: 1080P(1920×1080)/ 960P(1280×960)/ 720P(1280×720)

Image Motion Detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)

Recording Playback Quality: 8ch 720P/960P Model: 4ch simultaneously Playback, 8ch 1080P Model: 1ch 1080P Playback

Region Cover: Every channel can set 4 cover regions (IPC Support)

Recording Mode: Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)

Backup Way: Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

Operation Way: Mouse

Local Login: User name and password

Recording Storage: Local HDD

External Ports:

Video Input(Model Optional):

① 8×(1280*720)+sub[640*360]+1Ref. +4Play 8ch 1MP IP camera

③ 8×(1280*960)+sub[640*480]+4Ref. +1Play 8ch 1.3MP IP camera

② 8×(1920*1080)+sub[640*480]+2Ref. +1Play 8ch 2MP IP camera

③ 8×(720*576)+sub[352*288]+2Ref. +8Play 8ch 0.4MP IP camera

Audio Input: 8ch network audio input

Video Output: 1ch VGA+1ch HDMI

Network Port: 1 RJ45,10M/100M self-adaptive LAN port

USB Port: 2* USB 2.0

Wireless Port: NOT Support

HDD: Mobile HDD/ E-SATA/ U Disk

Mobile Surveillance: Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply: 5V 2A

Power Consumption: ≤10W (without HDD)

Working Temperature: -10℃~+55℃

Working Humidity: 10%-90%

Size: about 88x88x32mm

Installation Way: Desktop Installation

1-Preview channel can be switched to other channel randomly without changing the MAC, which is convenient for the project construction;
2-The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
3-The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
4-Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5-The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
6-Recording backup can be accurate to second. Any time period of backup is available;
7-The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
8-Standard resolution which can be adjusted according to the display device in order to get the best image quality;
9-Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.

NOTICE:

1) Tested HDD model supported by this NVR:

(1) Seagate Backup Plus 1TB 2.5” USB3.0 mobile HDD: STBU1000300

(2) Seagate Expansion 1TB 2.5” USB3.0 mobile HDD: STBX1000301

(3) Seagate Expansion 2TB 3.5” USB3.0 external HDD: STBV2000300

(4) Western Digital Elements 1TB 2.5” USB3.0 mobile HDD: WDBUZG0010BBK

2) If you are using this NVR with our IP cameras, please choose i13 protocol. It's more compatible.

3) This NVR does NOT support Wifi or 3G any more.

4) This NVR doesn't include a remote controller or HDD(hard drive disk) by default.

If you have any questions. Please feel free to contact us.

Package included:

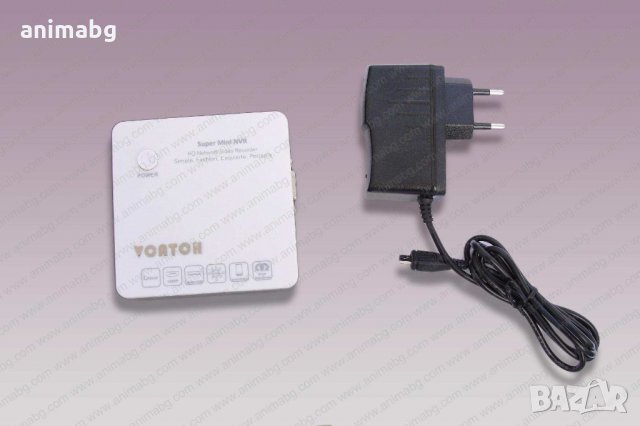

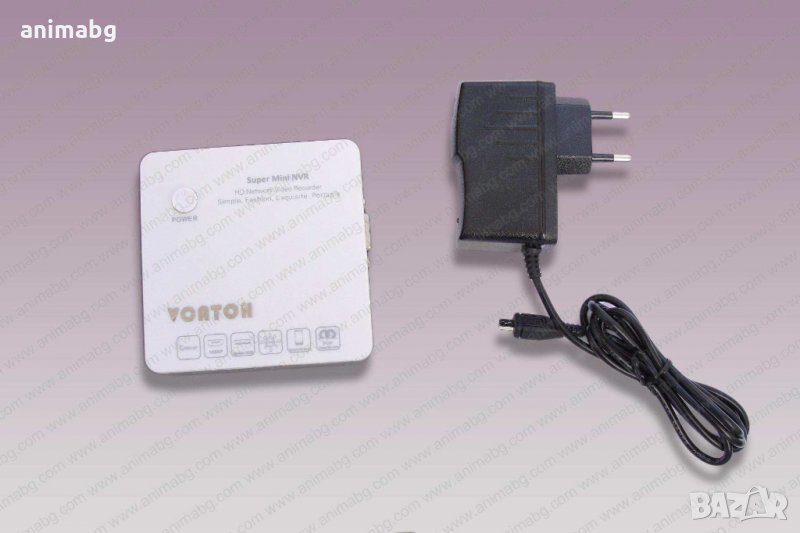

1x 8 Channel Mini CCTV NVR

1x 5V 2A Power Adapter
