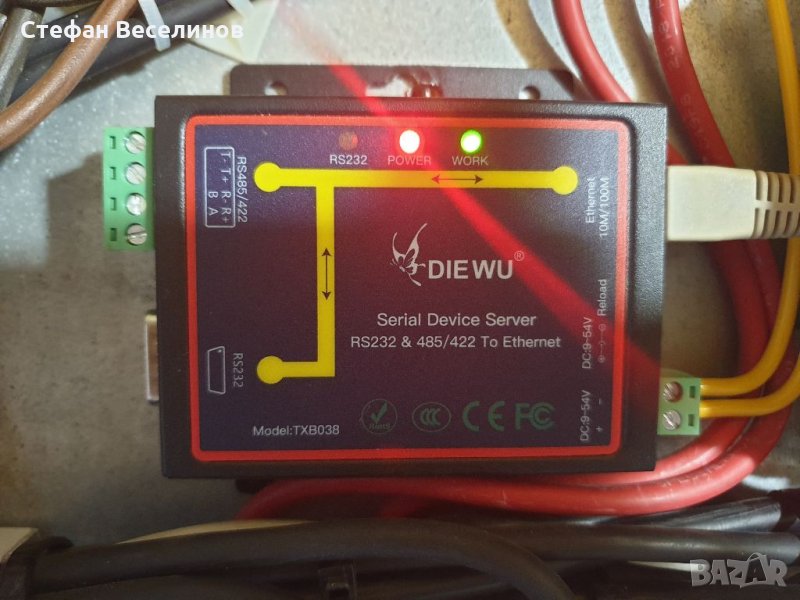

RJ45 to RS232 +RS485 Industrial Modbus/TCP/RTU/UDP Serial RS232 RS485 RS422 to Ethernet Device
Server
Model number:TXB038Port number:1 port 10/100M Auto MDI-MDIX RJ45,1port RS485 1port RS232Interface: compatible with RS232 RS422 and RS485 standard
Support Windows XP/WIN7/WIN8/WIN10
Standard:IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az
Network media:10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data rate:10/100M
Forwarding rate:10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator:Link/Act, Power, TX/RX
Baud rate:300bps~230400bps
Operation modes:TCP Server, TCP Client,UDP
Power Input:DC5V
Power Consumption:Max1.5W
Environment:
Operating Temperature: -10 ℃-55 ℃
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40℃-85℃
Relative Humidity: 5%-90%(non-condensing
