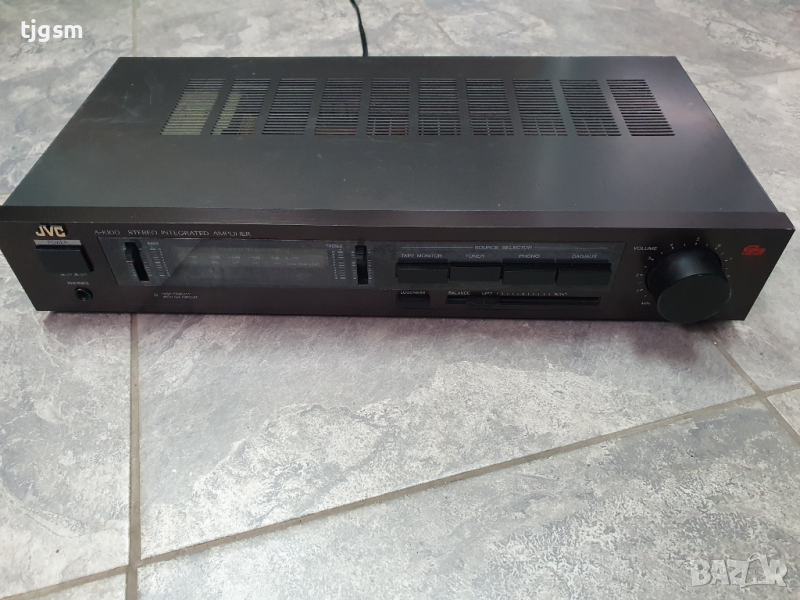

Усилвател JVC A-K100 Stereo Integrated Amplifier GM Circuit
JVC A-K100 Stereo Integrated Amplifier GM Circuit
made in japan
Specifications
Output Power:
25 watts per channel, min. RMS, both channels driven, into 8 Ω from 40 Hz to 20 kHz with no more than 0,5% T.H.D.
27 watts per channel, min. RMS, both channels driven, into 8 Ω at 1 kHz with no more than 0,7% T.H.D.
23 watts per channel, min. RMS, both channels driven, into 8 Ω at1 kHz with no more than 0,08% T.H.D.
Total Harmonic Distortion:0,5% at rated output from 40 Hz to 20 kHz, 8 ohms
Power Bandwidth: 10 Hz - 30 kHz ('66 IHF both channels driven, 8 Ω , 0,5% T.H.D.)
Frequency Response: 10 Hz - 30 kHz =1 dB, -3 dB (8 Ω )
Tone Controls:
Bass : 100 Hz ±8 dB
Treble : 10 kHz ±8 dB
Input Sensitivity/Impedance
Phono : 2,5 mV/47 k Ω
Tuner, Video, Aux, Tape: 160 mV/40 k Ω
Phono Equalizer Deviation: ±1,0 dB (40 Hz - 15 kHz)
Phono Overload : 100 mV (1 kHz)
Signal-to-Noise Ratio:
Phono : 70 dB ('66 IHF)
Tuner, Video, Aux, Tape : 95 dB ('66 IHF)
Loudness Control" =5 dB at 100 H
Power Supply : AC 110/120/220/240 V 50/60 Hz
Power Consumption: 75 watts
Dimensions (W x H x D): 435 x 77 x 248 mm (17-1/8" x 3" x 9-3/4")
Weight: 3,7 kg (8,2 lbs)
уникална машинка
Не ме устройват бартери!
