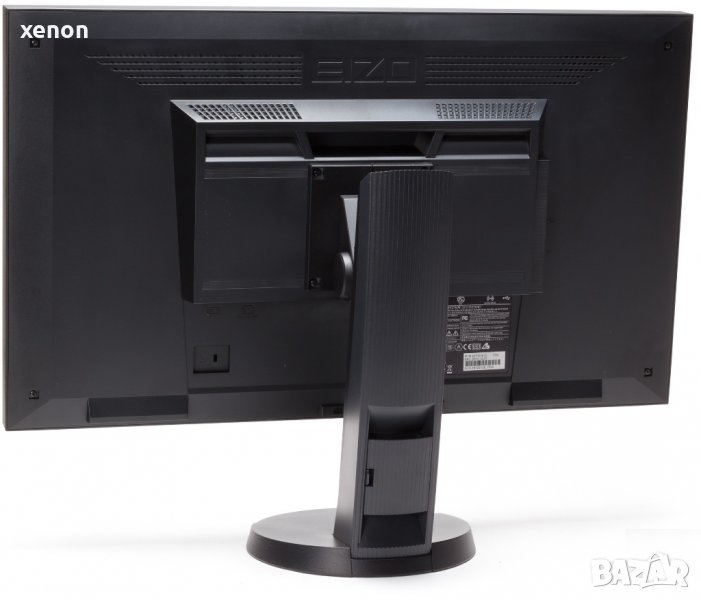

With FlexStand
Panel Type: - IPS
Backlight LED
Size: - 27" / 68 cm (684 mm diagonal)
Native Resolution: 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V). 596.7 x 335.6 mm
Pixel Pitch. 0.233 x 0.233 mm
Display Colors. 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical). 300 cd/m2
Contrast Ratio (typical). 1000:1
Response Time (typical). 6 ms (Gray-to-gray)
Video Signals

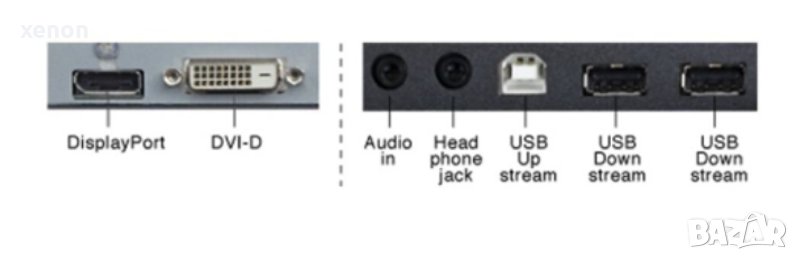

Input Terminals:
DisplayPort x 1
DVI-D 24 pin x 1 (with HDCP)
Digital Scanning Frequency (H / V)
31 - 89 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz, WQHD SL: 29 - 31 Hz)
Function
1 port for up stream
2-port USB hub
Input Terminals
3.5 mm stereo jack
Output Terminals
3.5 mm headphone jack
Sound Adjustment
Volume, Power Save, Source (DisplayPort)
Power Requirements
AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Maximum Power Consumption
67 W
Typical Power Consumption
24 W
Power Save Mode
Less than 0.5 W
Power Management
Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM), Off Timer
Preset Modes
FineContrast (Paper, Movie, sRGB, User1, User2)
OSD Languages
English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others
Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Dimensions (Landscape, W x H x D)
640 x 404.5 - 554.5 x 245 mm
Dimensions (Without Stand, W x H x D)
640 x 379 x 65 mm
Net Weight
9.9 kg / 21.8 lbs
Net Weight (Without Stand)
7.3 kg / 16.1 lbs

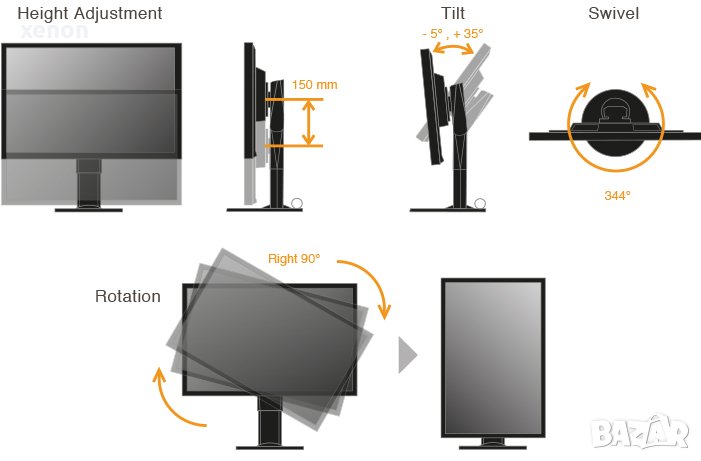

Height Adjustment Range
150 mm
Hole Spacing (VESA Standard)
100 x 100 mm
Environmental Requirements
Operating Temperature
5 - 35 °C
Operating Humidity (R.H., non condensing)
20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.)
TCO Displays 6.0
, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
AC power cord, signal cables (DVI-D - DVI-D[dual link supported]), DisplayPort - DisplayPort), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
