Beresford TC-7533 Hi-Fi DAC & Headphone Amplifier → Обява 39945125

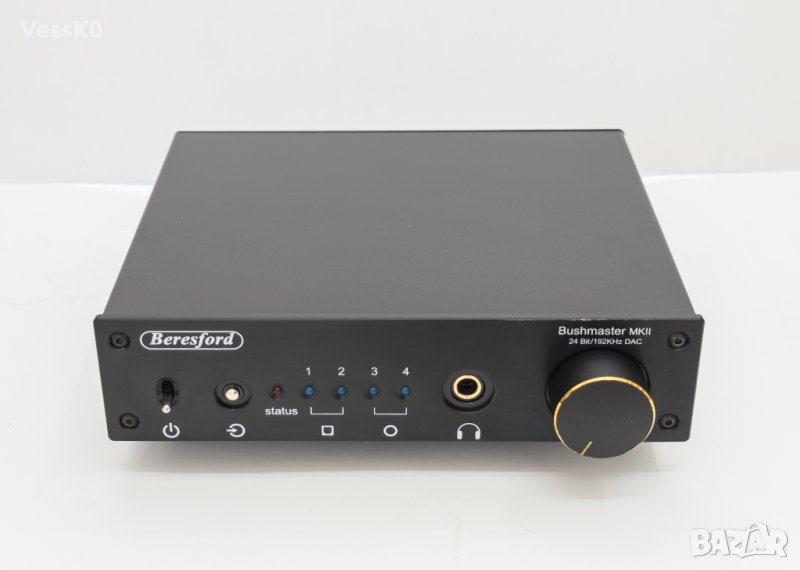

Beresford TC-7533 Hi-Fi DAC & Headphone Amplifier
гр. София, Овча купел 1 Наблюдавай

Публикувана/обновена на 21 септември в 01:26 ч.

Състояние
Използвано
Доставка
Лично предаване; Купувача

Устройството е в отлично състояние с оригиналното си захранване.

Характеристики:

  • 4 Digital Inputs (S/P-DIF - 2 optical, 2 coaxial)
  • 1 Analogue Outputs (Cinch - fixed)
  • Headphone Amplifier (6,3-mm-Jack) with Volume Control: 12 to 600 Ohm, 700mW
  • Frequency Response: 20 Hz to 20 kHz
  • Signal-to-Noise Ratio: > 103 dB
  • Channel Separation: > 100 dB @ 1 kHz
  • Total Harmonic Distortion: < 0,0015 % @ 1kHz
  • Resolution: up to 24 bit
  • Sample Rate: 28 to 192 kHz
  • Burr-Brown Converters
  • LED Indicator for chosen Input
  • Colour LED for On-/Off-Switch
  • Direct Current Sink: Device can be used worldwide
  • Gold-plated Connectors
  • Solid, Black Metal Case
  • CE certified
  • Valuable Switching Power Supply (12 Volts DC) included
  • Dimensions: 180 mm × 140 mm × 50 mm

DC Linearizer Low Noise Filter

External DC power supplies are a known source of RF noise. Our own unique DC Linearizer circuit transforms almost all of that RF noise into a clean DC voltage. The result is then fed to a Low Drop Out regulator circuit. We employ separate regulators for the supply of power to the TOSLINK and coax input circuit, digital and analogue signal processing circuit, and the headphone amplifier circuit. The result is an analogue sound with firmer and deeper bass, more detailed midrange, and crystal clear treble.

High accuracy crystal controlled receiver chip for low jitter.

Many agree that a low jitter ability heavily influences the performance of a DAC. The Bushmaster uses a crystal-controlled receiver with one of the lowest jitter performances possible from a receiver chip. At 50ps few other DACs can match or surpass the Bushmaster in terms of jitter rejection.

Simple Analogue Filter Circuit.

There has been much debate as to how much damage is done to the audio signal by the various digital and analogue filtering networks that are found in a DAC design, and whether filters contribute to grainy high frequencies. The technology used in the Beresford Bushmaster relies instead on a simple HF analogue filter that operates outside any feedback circuit and outside the audio spectrum. This makes the Bushmaster less prone to anti-aliasing filter residues and noise and produces a far cleaner and more detailed treble response.

Asynchronous SPDIF to I2S signal transfer

In order to correct timing and data speed transfer errors the TC-7533 uses a asynchronous buffer with a length of 1024 bits to take care of time period related errors.

Direct Coupled Analogue Output Stage

There are no opamps, muting circuits, or capacitors between the DAC chip and the output sockets to affect the accuracy of the audio signal. This allows the Bushmaster to operate down to 1Hz. The Bushmaster is therefore also suitable for DVD audio applications, which can go down to 5Hz or lower.

High Current Class A-B headphone circuit

The Bushmaster headphone amplifier circuit is designed to drive even the latest high-end headphones and reproduce the musical detail that these headphones are capable of. A generous signal headroom overhead, low noise circuitry, and high output current ability are key factors that make the headphone output on the Bushmaster a major talking point with existing owners.

LED OFF during music playback function


The Bushmaster MKII has a LED OFF function that can be set to operate when there is music playing. So that way, you can ensure that no LED noises can bleed into the sound.

12 Volt battery operation option.

Due to the highly efficient design and low energy requirement placed on the power supply, the Bushmaster is capable of operating from a 12 Volt battery

Type: Digital to Analogue Converter
