Висококачествен Бутиков линеен миксер ART MX 821 - 8 канала → Обява 40382474
Висококачествен Бутиков линеен миксер ART MX 821 - 8 канала
Състояние
Използвано
Доставка
Купувача
Висококачествен Бутиков линеен миксер ART MX 821 - 8 канала
Цена ->330лв
Art Pro Audio MX821S Eight Channel Mic/Line Mixer with Stereo
Outputs: A versatile, solid mixer with eight independent channels
that accept a balanced XLR or unbalanced 1/4" signal.
Outputs: A versatile, solid mixer with eight independent channels
that accept a balanced XLR or unbalanced 1/4" signal.
Overview

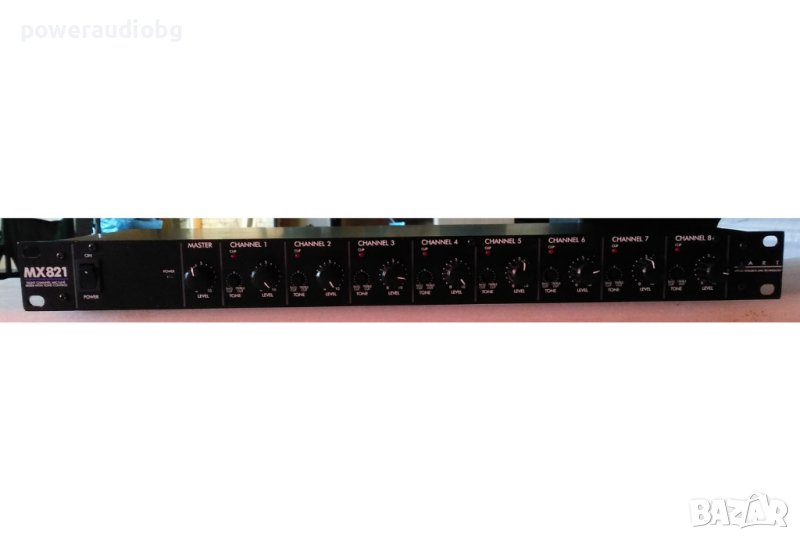

The ART MX821S is a versatile rack mount mixer combining eight
independent input channels into a stereo line-level output. Each
input channel accepts a balanced XLR microphone input or unbalanced
1/4-inch TS line-level signal and provides independent level and
pan controls.
independent input channels into a stereo line-level output. Each
input channel accepts a balanced XLR microphone input or unbalanced
1/4-inch TS line-level signal and provides independent level and
pan controls.

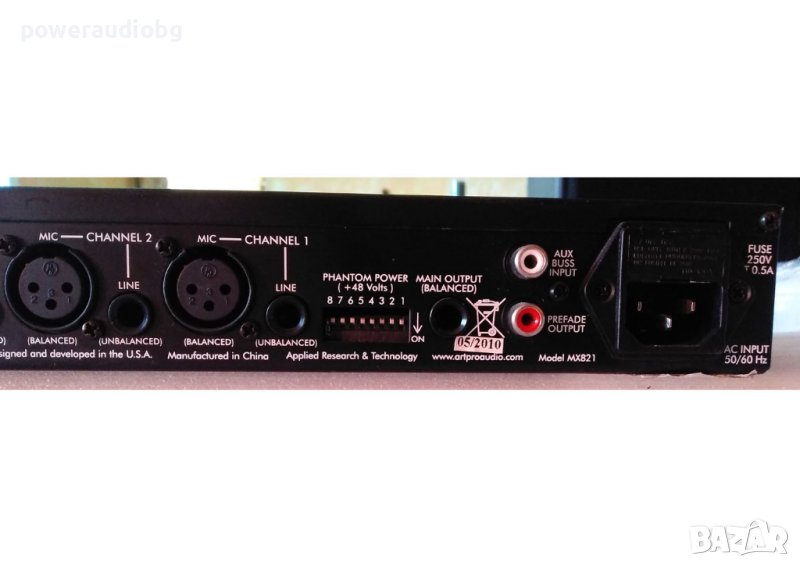

+48 Volt phantom power may be independently selected on each
microphone input. A master level control adjusts the signal output
to the low-impedance balanced 1/4-inch TRS jacks.
Prefade output (not affected by the master level control) and
Aux Bus input RCA jacks allow patching of multiple units when more
channels are needed.
The ART MX821S may be used on stage, in the studio, or for
permanent install applications including conference rooms,
corporate boardrooms, churches, restaurants, small clubs, health
clubs and more. A built-in power supply and single high 19-inch
rack mount format allows for easy installation and reliable
long-term operation.
Key Features
- Eight input channels with individual level and pan
controls - Pan controls place each input mono signal anywhere in the
output stereo image - Balanced microphone XLR or unbalanced 1/4-inch TS inputs on
each channel - Full +48V low noise phantom power switchable for each
microphone input - Balanced left and right 1/4-inch TRS main output jacks with
master level control - Prefade Output jacks and Aux Bus Input jacks allow units to be
chained to provide extra inputs - Each line input jack may be individually converted to a direct
line output by means of internal jumpers - Rugged 1U rack-mount steel chassis with built-in power
supply - Perfect for stage, studio and permanent installations
Specifications
- Input Connections: XLR female balanced (Mic, channels 1-8),
1/4-inch TS unbalanced (Line, channels 1-8) - RCA unbalanced: (Aux Bus In, Left and Right)
- Output Connections: 1/4-inch TRS balanced (Main Outputs, Left
and Right) - RCA unbalanced: (Prefade Out, Left and Right)
- Input Impedance: 2k Ω (Mic), 20k Ω (Line), 51k Ω (Aux Bus
In) - Output Impedance: 200 Ω (Main Outputs, balanced), 100 Ω
(Prefade Out) - Frequency Response: 20 Hz - 20 kHz (+0, -1 dB) (CH 1-8 in,
M - Total Harmonic Distortion: <0.01% @ 1 kHz, typical
- Phase Response: All connections are phase coherent
- Signal to Noise Ratio: >99dB typical (Ref 0dBu)
- CMRR: >43 dB typical
- Maximum Input Level: -4 dBu (Mic), +22 dBu (Line)
- Maximum Output Level: +24 dBu (balanced), +18 dBu
(unbalanced) - Maximum Gain: 54 dB (Mic), 29 dB (Line)
- Phantom Power: Switch Selectable, +48V DC (regulated and
filtered), 7 mA current limiting per leg - Power Requirements: USA: 95-125 VAC, 50-60 Hz, <15W
- Dimensions: 1.75″ x 19″ x 6″ (4.5cm x 48.3cm x 15.2cm)
- Weight: 6.3 lbs (2.9 kg)
A great unit for any rack, offering independent controls of each
channel as well as a master control.
