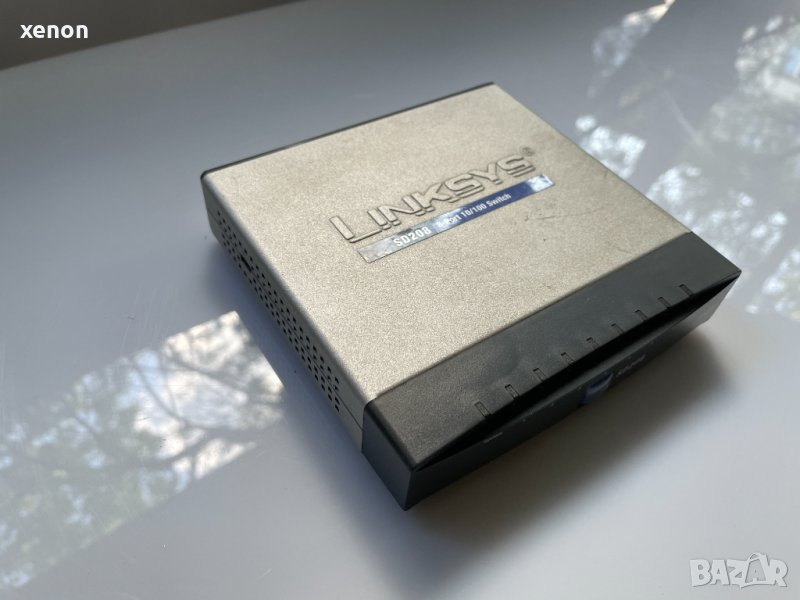

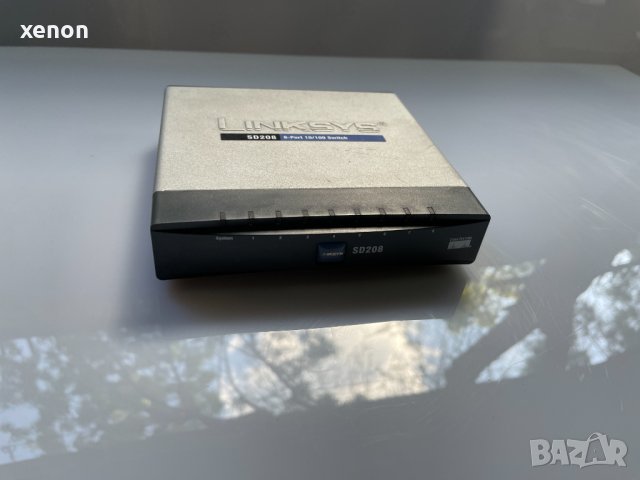

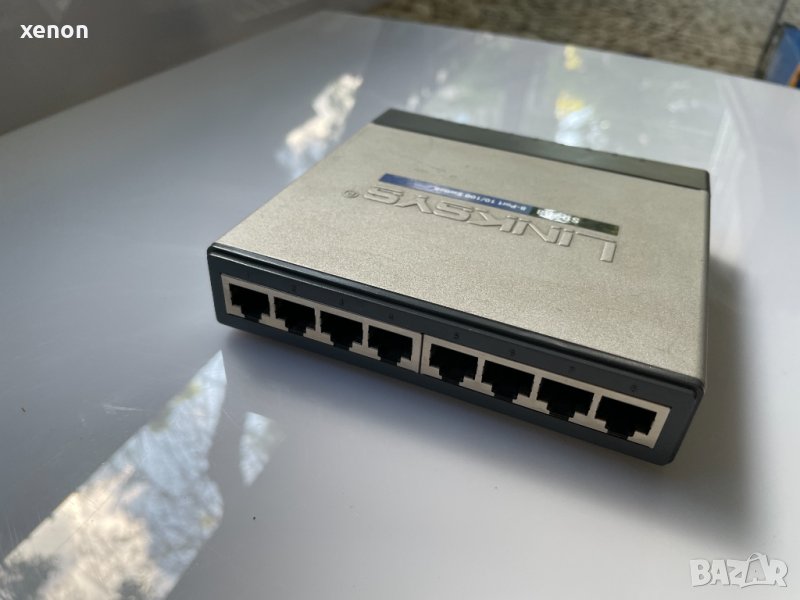

Linksys (Cisco) SD208 8-Port 10/100 Switch → Обява 40605124

Specifications




The following table lists the specifications for the SD205, SD208, and




SD216 10/100 switches.




Item Specification




Model SD205, SD208, SD216




Standards IEEE 802.3, IEEE 802.3u




Ports • SD205: 5 RJ-45 10/100 Mbps ports




• SD208: 8 RJ-45 10/100 Mbps ports




• SD216: 16 RJ-45 10/100 Mbps ports




Cabling Type Cat5 Ethernet




LEDs • SD205: System, Port Status 1—5




• SD208: System, Port Status 1—8




• SD216: System, Port Status 1—16




Security Feature Security Slot




Dimensions (WxHxD) • SD205: 3.66 in. x 1.18 in. x 3.54 in.




(93 mm x 30 mm x 90 mm)




• SD208: 5.12 in. x 1.12 in. x 5.11 in.




(130 mm x 28.5 mm x 129.58 mm)




• SD216: 5.12 in. x 1.57 in. x 5.11 in.




(130 mm x 38.5 mm x 129.58 mm)




Unit Weight • SD205: 8 oz. (0.23 kg)




• SD208: 15 oz. (0.43 kg)




• SD216: 19 oz. (0.54 kg)




Power • SD205/SD208: 100-240 VAC 50/60 Hz, 0.5 A




• SD216: 100-240 VAC 50/60 Hz, 1 A




Certification FCC Class B, CE




Operating Temperature 32 to 104°F (0 to 40°C)




Storage Temperature -40 to 158°F (-40 to 70°C)




Operating Humidity 20 to 95%, noncondensing




Storage Humidity 5 to 90%, noncondensing
