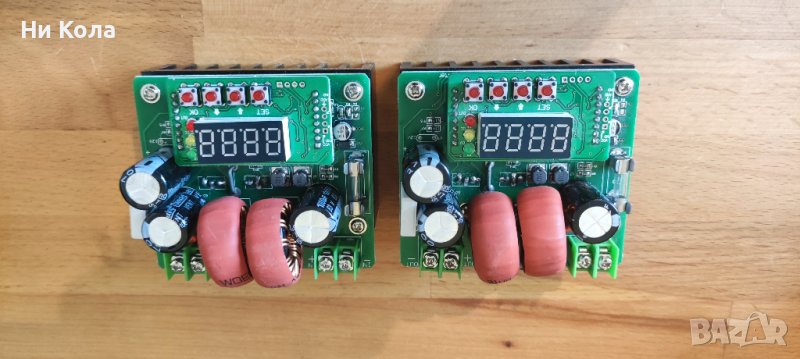

Digital Display DC Boost Module 400W Constant Voltage Constant Current BST400W Adjustable Boost
Доставка
Лично предаване; Купувача
импулсно захранване повишаващо
Цената е за брой
CNC digital display module DC-DC DC boost module 400W constant voltage constant current
Description:
The new digital control boost module
adopts advanced microprocessor control, abandoning the traditional
potentiometer adjustment mode, the voltage and current are precisely
adjusted by the button, can be constant voltage, constant current
output, with working status indicator, real-time view of output voltage,
Current size and working condition.
Features and advantages:
Using advanced microprocessor, the button precisely adjusts the output voltage and current.
The use of high-quality power devices,
combined with the CV and CC loops formed by peripheral precision op
amps, greatly improves the performance of the module.
It adopts two 1mm double wire wound
high current inductors. The input adopts one 1000uF/63V electrolytic
capacitor, and the output uses two 470uF/100V electrolytic capacitors.
The output voltage quality is very good.
4-bit high-brightness digital tube can
display the output voltage and current in real time. It can be switched
manually or automatically.
Input voltage: 6V~40V
Input current: 15A (max)
Output voltage: 8V~80V
Output current: 0~9.99A
Voltage and current resolution: 0.01V, 0.01A
Output power: 400W (max) Effective power P = Input voltage V * 10A
Note: This point requires special
explanation. The nominal 400W refers to the maximum power of the module
under certain operating conditions. Under different input voltages, the
maximum output power is reduced by the input maximum current limit. such
as:
Input voltage is 12V: maximum output power P=12V*10A=120W
Input voltage is 24V: maximum output power P=24V*10A=240W
Input voltage is 40V: maximum output power P=40V*10A=400W
Conversion efficiency: up to 95% (input voltage, current and output voltage, current affects conversion efficiency)
Short circuit protection: 15A fuse

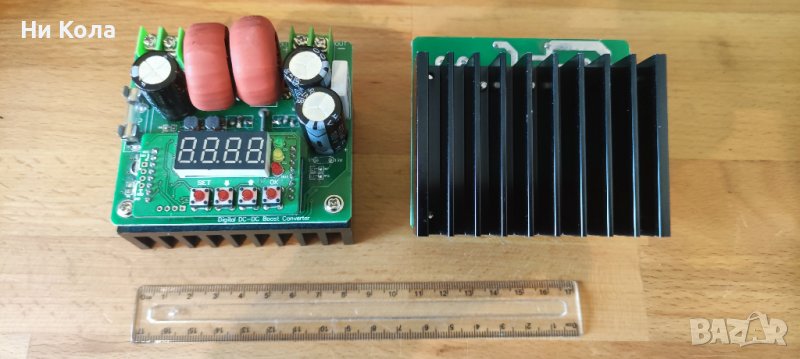

Dimensions (mm): 86 (length) * 75 (width) * 63 (height)
Weight: 295g
