Захранващ блок 110 Волта

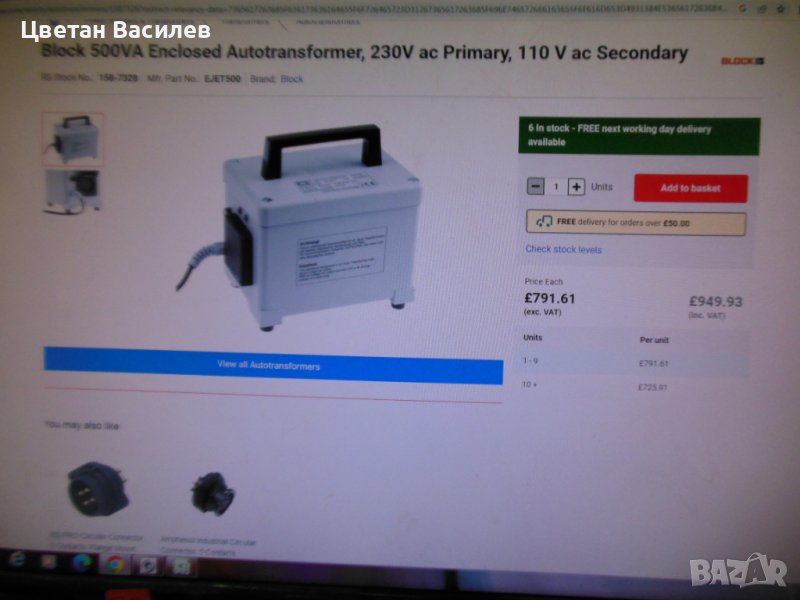

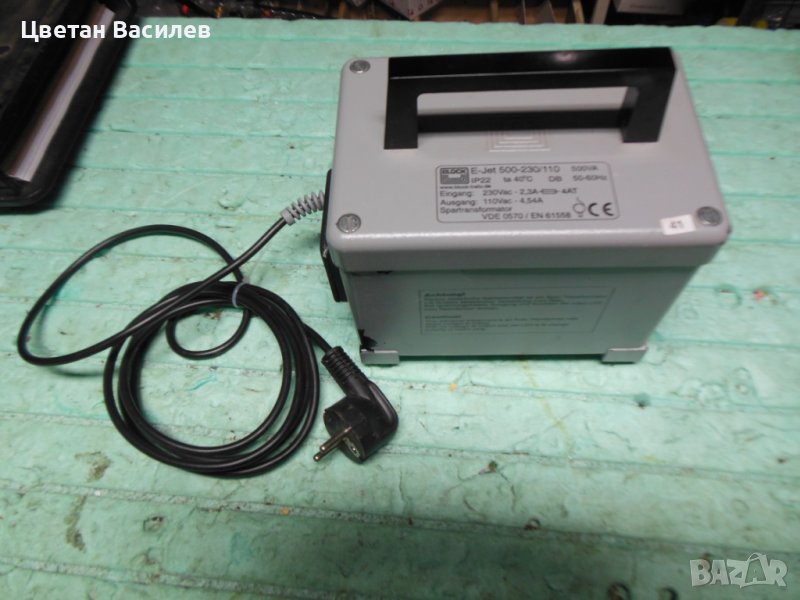

Block 500VA Enclosed Autotransformer, 230V ac Primary, 110 V ac Secondary

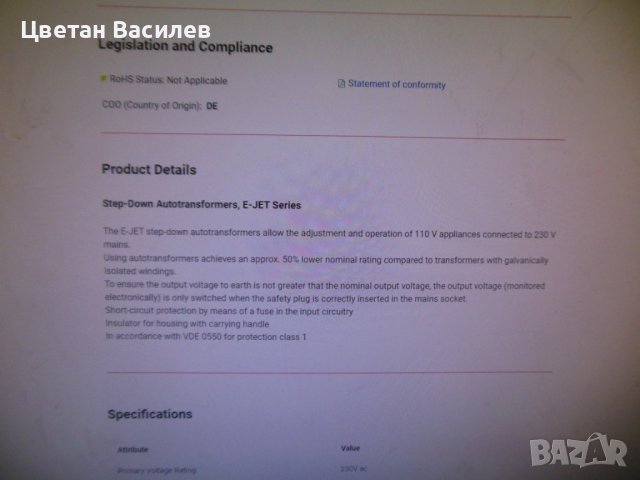

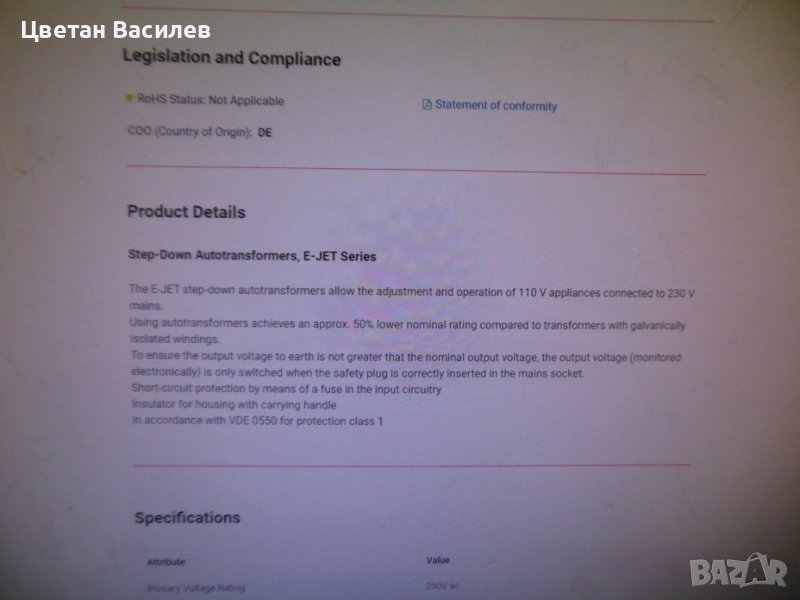

Step-Down Autotransformers, E-JET Series
The E-JET step-down autotransformers allow the adjustment and operation of 110 V appliances connected to 230 V mains.
Using autotransformers achieves an approx. 50% lower nominal rating compared to transformers with galvanically isolated windings.
To ensure the output voltage to earth is not greater that the nominal output voltage, the output voltage (monitored electronically) is only switched when the safety plug is correctly inserted in the mains socket.
Short-circuit protection by means of a fuse in the input circuitry
Insulator for housing with carrying handle
In accordance with VDE 0550 for protection class 1

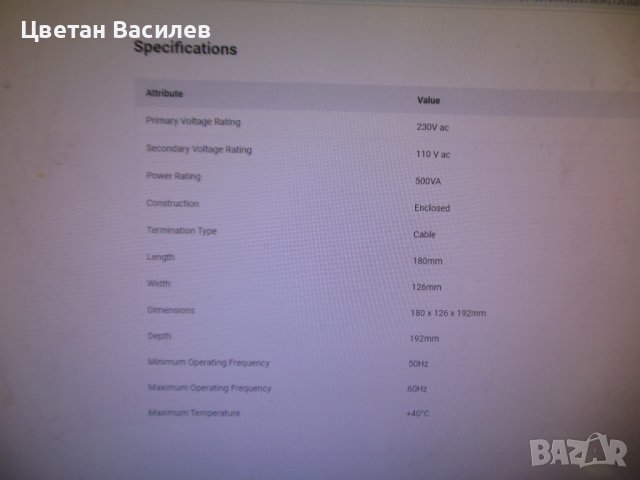

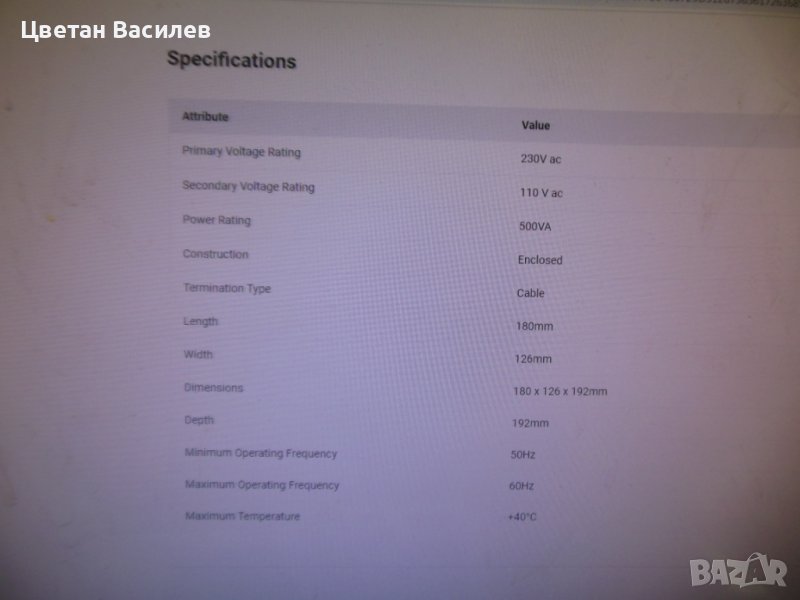

Specifications
Attribute
Value
Primary Voltage Rating
230V ac
Secondary Voltage Rating
110 V ac
Power Rating
500VA
Construction
Enclosed
Termination Type
Cable
Length
180mm
Width
126mm
Dimensions
180 x 126 x 192mm
Depth
192mm
Minimum Operating Frequency
50Hz
Maximum Operating Frequency
60Hz
Maximum Temperature
+40°C
