SANSUI 800 Solid State Stereo AM/FM Tuner Amplifier (1968-1971) → Обява 41313713

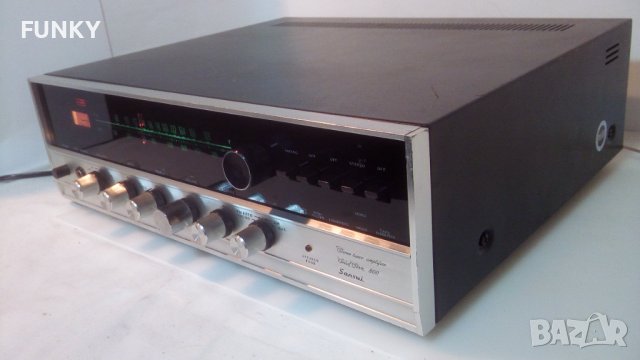

SANSUI 800 Solid State Stereo AM/FM Tuner Amplifier (1968-1971)
Състояние
Използвано
Доставка
Купувача
SANSUI 800 Solid State Stereo AM/FM Tuner Amplifier (1968-1971)

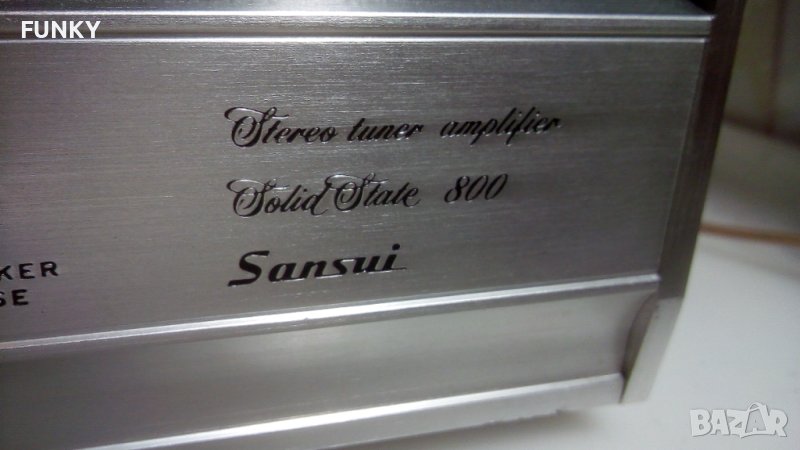

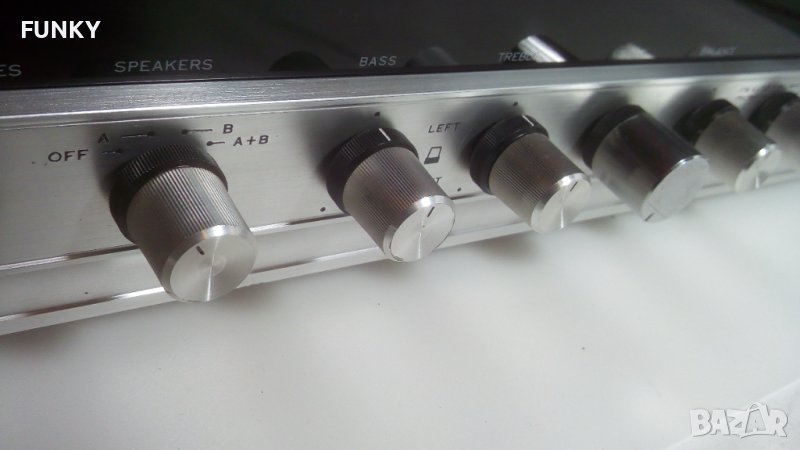

Отлично техн.състояние и видно от снимките визуално.
SPECIFICATIONS:
Solid State Stereo AM/FM Tuner Amplifier (1968-71)
Specifications
Tuning range: FM, MW
Power output: 22 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 30kHz
Total harmonic distortion: 0.8%
Damping factor: 60
Input sensitivity: 2.2mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MM), 70dB (line)
Channel separation: 50dB (MM), 50dB (line)
Output: 150mV (line), 25mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 400 x 115 x 333mm
Weight: 10.2kg
Year: 1968
-----------------------------------------------------------------------------------------------------------------------
Type Solid-state tuner amplifier
Amplifier Unit
Effective power
Music Power (IHF) : 70W ± 1 db (4 Ω)
58W ± 1 db (8 Ω)
Effective power : 28W/28W ± 1 db (4 Ω)
22W/22W ± 1 db (8 Ω)
Total harmonic distortion factor 1.0% or Less (Rated Output)
Intermodulation distortion factor (60 hz : 7 khz = 4 : 1) Not more than 1.0%
Power Band With (IHF) 20 Hz ~ 35 kHz (8 Ω)
Frequency characteristic Power Amplifier Part : 15 Hz ~ 50 kHz ± 1 dB
AUX : 20 Hz ~ 30 kHz ± 1.5 dB
Channel separation Phono, AUX : 50 dB or more (rated output, 1 kHz)
Hum and Noise (IHF) Phono, AUX : 70 dB or more
Input Sensitivity (Rated Output, 1 kHz) Phono : 2.2 mV ± 3 dB
AUX, Tape Mon (PIN), Tape Recorder (DIN) : 150 mv ± 3 db
Recorded output Tape Rec (PIN) : 150 mv ± 3 db
Tape Recorder (DIN) : 25 mV ± 3 dB
Output impedance 4 Ω ~ 16 Ω
Damping factor 60 (8 Ω)
Equalizer Phono : RIAA NF Type
Tone control Bass : ± 10 dB (50 Hz)
Treble : ± 10 dB (10 kHz)
Loudness control 50 Hz : + 8 dB, 10 kHz : + 5 dB (Volume-30dB)
High filter 10 kHz, -10dB

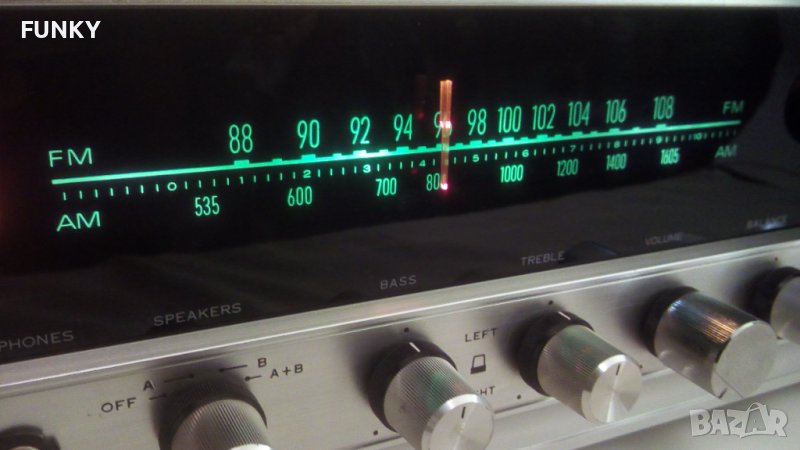

FM Tuner Section
Receiving frequency 76 MHz to 90 MHz
Sensitivity 2 μ V ± 3 dB (20 dB quieting)
2.8 μ V ± 3 dB (IHF)
Total harmonic distortion factor Less than 1% (60 dB input, 100% mod)
Signal-to-noise ratio 50 dB or More (60 dB input)
Selectivity 45 dB or more
Image フレクェンシー rejection 45 dB or more
IF Rejection 55 dB or more
Channel separation 35 dB or more
Spurious response 50 dB or more
Unwanted broadening 34 dB or more
Receiving frequency 535 to 1,605 kHz
Sensitivity 22 μ V ± 3 dB (1 MHz)
Image ratio 40 dB or More (1 MHz)
IF Rejection 45 dB or more
Selectivity 20 dB or more
Power supply voltage 220 VAC, 50Hz/60Hz
Power consumption 110 VA (max)
External dimensions Width 402x Height 116x Depth 333 mm
Weight 10.5kg
Преглеждания: 1 326
Другите търсят също
Цена:
888 лв
