RS PRO RS 135 Multi Function Calibrator → Обява 41848718

For all current loop repair, calibration and maintenance needs RS PRO presents an easy to use solution. This loop calibrator offers grade precision for temperature measurement and calibration accuracy with a wide measurement range. Source and measure current loops simultaneously. Featuring a clear and easy to read LCD screen, this product is also user friendly and ergonomic with soft touch buttons, built in stand and easy to use settings.

Applications include calibration of 4∼20 mA panel meters, LED brightness testing and temperature calibration of instruments or panel meters for 11 types of thermocouples.

• Source 4∼20 mA, 0∼24 mA with 1 μA resolution (1 KΩ load, 24 V loop supply), basic accuracy 0.025%

• Source 0∼24.000 V with 1 mV resolution

• Source frequency 1∼20000 Hz square wave with programmable duty cycle (1∼99%)

• Auto step and auto ramp for sourcing mA, V

• Easy fixed 25% up and down, or programmable percentage (1∼99%) increase and decrease (mAV)

• Measure DC mA with loop power (24 V output)

• Measure DC V

• Measure Temperature (°C, °F) of 11 types of thermocouples (K, J, E, T, R, S, N, L, U, B and C)

• Calibrator grade precision temperature measurement with 0.1°C & 0.1°F resolution

• Detection of thermocouples disconnection

• Warning for overload, output open (mA) or short (V)

• Short circuit protection for output

• Battery power indication (%) when turn on the calibrator

• Battery or electrical power supply

моля

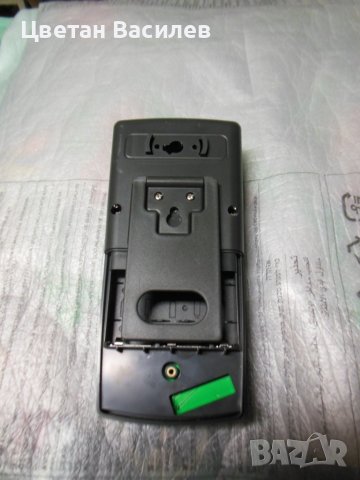

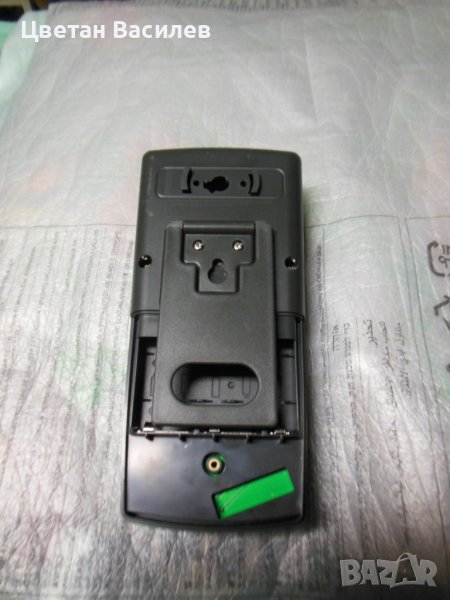

обърнете внимание че капака на батериите липсва

това не пречи на работата на уреда

затова е намалена цената
