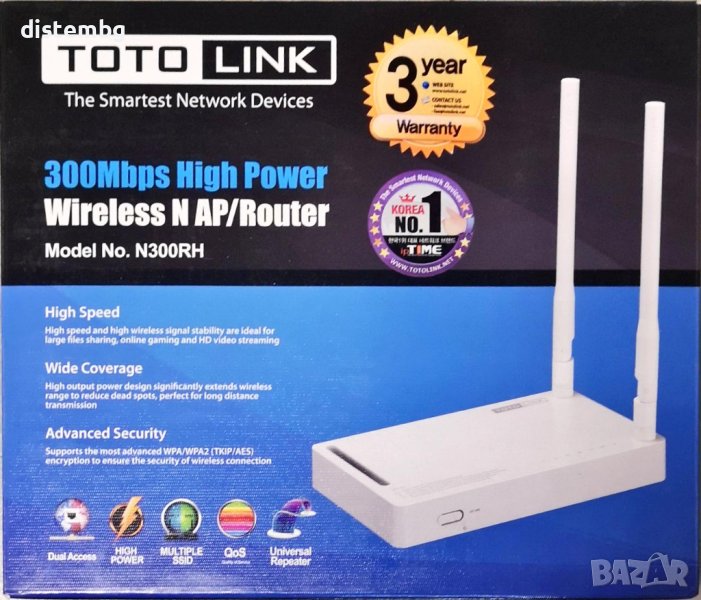

Рутър Totolink N300RH
HARDWARE FEATURES
Interface
4*10/100Mbps LAN Ports
1*10/100Mbps WAN Port
Power Supply
12V DC/1A
Antenna
2*11dBi detachable antennas
Passive PoE
WAN Port & the LAN Port beside the WAN Port Supported
Button
RST/WPS Button
LED Indicators
1*Power, 1*CPU, 1*Wireless, 1*WAN, 4*LAN
Dimensions (L x W x H)
7.1 x 4.2 x 1.0 in. (180 x 106 x 24.5 mm)
WIRELESS FEATURES
Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency
2.4~2.4835GHz
Data Rate
802.11n: Up to 300Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to11Mbps (dynamic)
EIRP
< 20dBm (For countries using CE standard)
< 27dBm (For countries using FCC standard)
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity
270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
SOFTWARE FEATURES
Operation Mode
Wireless ISP Client Router
Wireless Client
Repeater(Range Extender)
Router
Bridge with AP
Client
Network
VLAN, IPv6
WAN Type
DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP (dual access)
Wireless Functions
Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
Schedule
Reboot Schedule, Wireless Schedule
Firewall
MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
Management
Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control, SSH Server
