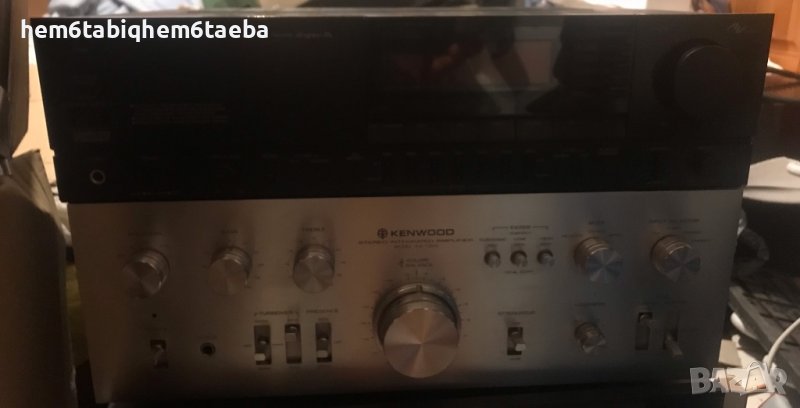

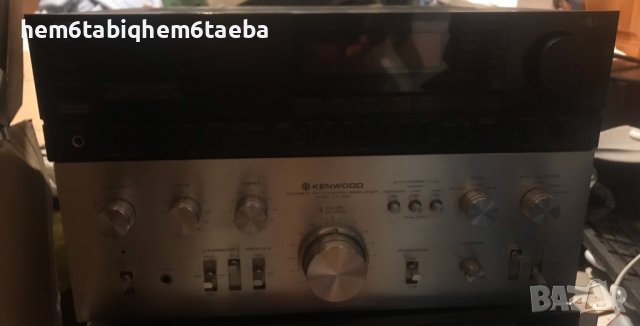

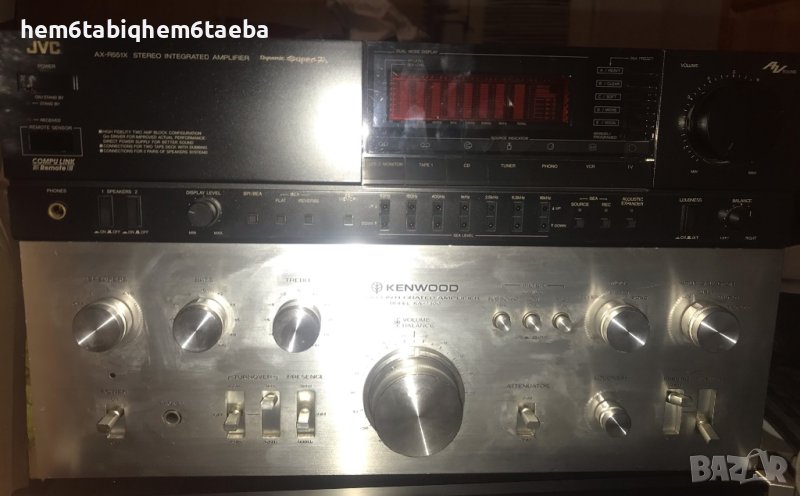

KENWOOD KA 7300 - топ модел усилвател от старата школа → Обява 43022154

General

• Manufacturer:

  Kenwood



• Model: KA-7300

• Year of manufacture: 1975 - 1978

• Made in: Japan

• Color: silver

• Type: Analog

• Remote control: -

• Power consumption: 450 W

• Dimensions (WxHxD): 430 x 149 x 376 mm

• Weight: 14 Kg

• Original price approx.: 65000 Yen (Japan, 1975), 330 US-$, 1150 DM

  • Option D-7 handles: 60 DM / pair


Connections

• Number of inputs:

  • Input sensitivity:

  • Phono 1 MM: 2.5mV, 50 kOhm, 260 mV max.

  • Phono 2 MM: 2.5mV, 50 kOhm, max. 260 mV


Tuner: 150mV, 50 kOhm

• • AUX: 150mV, 50 kOhm

  • Tape Play A, B: 150mV, 50 kOhm

  • Main In:

• Number of Outputs:

  • Outputs:

  • Tape Rec: 150mV, 100 Ohm

  • DIN: 30mV, 80 kOhm

  • Pre-Out:

  • Headphones:

  • Connectors for 3 pairs of speakers


Technical Data

• Continuous power (at THD)

  • 8 Ohm: 2x65W (RMS, 20Hz...20Khz, 0.08% THD), 2x 70W (8 Ohm, 1Khz)

  • 4 Ohm: 2x85W

• Dynamic power

  • 8 Ohm:

  • 4 Ohm: 250W

• Total harmonic distortion: 0.1% THD at 8 Ohm

• Attenuation factor: 50 at 8 Ohm

• Frequency response: 20 - 40000 Hz

• Power bandwidth: 5 - 60000 Hz

• Signal to noise ratio:

  • Phono 1,2: 76dB (MM)

  • Tuner: 90dB


AUX: 90dB Tape Play: 90dB

• Tone control

  • Bass:

    • 150Hz : ± 5dB at 100Hz

    • 400Hz : ± 7.5dB at 100Hz

  • Treble:

    • 3Khz : ± 7.5dB at 10Khz

    • 6Khz : ± 5dB at 20Khz

• Loudness: Level1: +3dB at 50Hz, Level2: +6dB at 50Hz, Level3: +10dB at 50Hz

• High Filter: +12dB/oct. at 8kHz

• Low Filter: +12dB/oct. at 40Hz

• Low Filter (Subsonic): +12dB/oct. at 18Hz

• Presence :

  • +6dB at 800Hz

  • +6dB at 3Khz


Attenuator: 0 dB, - 20 dB

Special Features

• Loudness 3-stage

• Pre- and power amplifier separable

• Mono / Stereo switch
