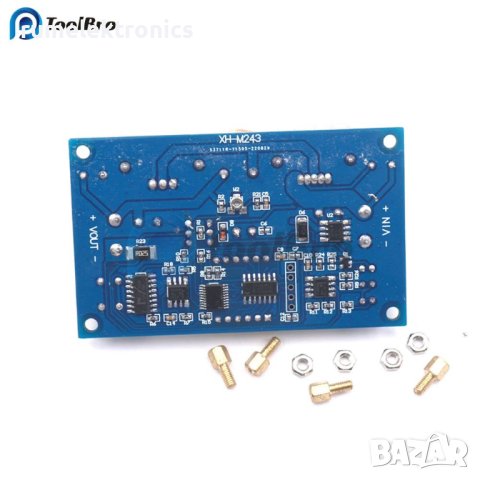

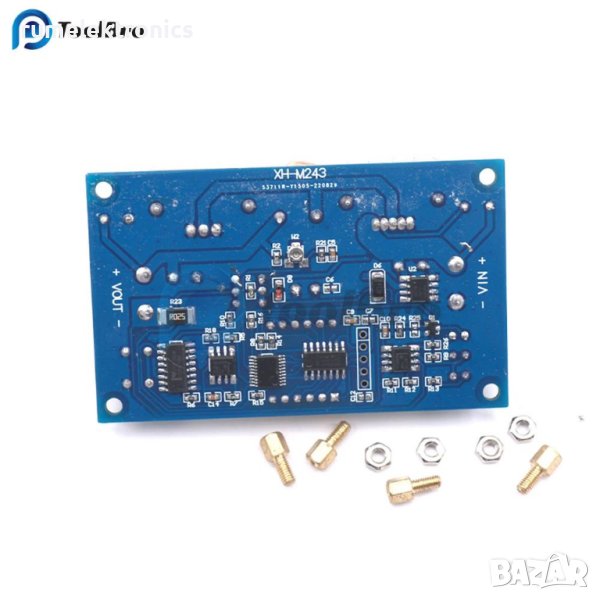

DC DC 8A за зареждане на батерии с цифров дисплей XH-M243
Constant
voltage constant current digital display module composed of XL4016 chip
as the core, the output voltage and current can be switched display,
and the output voltage and current can be adjusted continuously.
Constant current status: red blue light on
Constant pressure: blue light on
Fully charged: green light on
Chip:XL4016
Input Voltage :DC 8-40V
Output Voltage :DC 1.25-36V
Output Current :Max 8A
Output Power :180w
Switching frequency:180KHZ
Conversion efficiency:85%~95%
Short circuit protection:Yes
Size:84*51*33mm
Weight:68g
