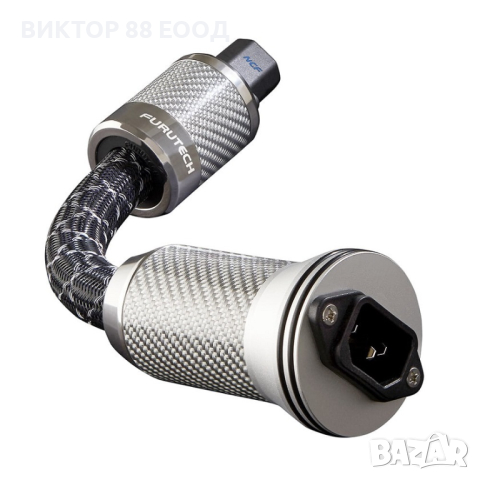

Hi-Fi Audio Power Filter - №4 → Обява 43805211

Предлагаме за продажба

For connection between power cables and power distributors or power cables and components. Eliminate and prevent radiated AC noise

Fitted with top-of-the-line Nano-sized Crystalline Piezo Ceramic gold-plated α Alpha nonmagnetic FI-50R NCF connector

AC-1501R EMI-filtering IEC, gold-plated α Alpha nonmagnetic copper alloy conductors

AC-1501R EMI filter features a parallel circuit with in-line coil and condenser, reducing noise at 1MHz by 10dB and at 10MHz by more than 30dB

Floating Field Damper Earth/Ground Jumper System US Patent

Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion

α Alpha conductor shield for protection against radiated noise

RoHS-compliant audio grade flexible PVC sheath improves vibration isolation

Special audio grade PE Insulation contributes to reduced capacitance

Incorporating special passive GC-303 EMI filtering material

Filter held in housing with resonance damping Piezo epoxy

Cable Specifications: 62 strand α Alpha OCC conductor・

0.127mm x 7 x 3 cores, 3.8mm diameter

Inner Sheath: RoHS compliant audio grade flexible PVC incorporating carbon powder

Insulation: Special audio grade PE Red/White/Green 5.2mm diameter

Shield: 0.12mm diameter α Alpha Conductor wire braid

Sheath: RoHS-compliant audio grade flexible PVC Purple red 18.0mm diameter

Jacket: Nylon yarn braid approx. diameter 18.8mm

Cable length 30 cm
