Visaton BG 30 NG
Доставка
Лично предаване; Купувача

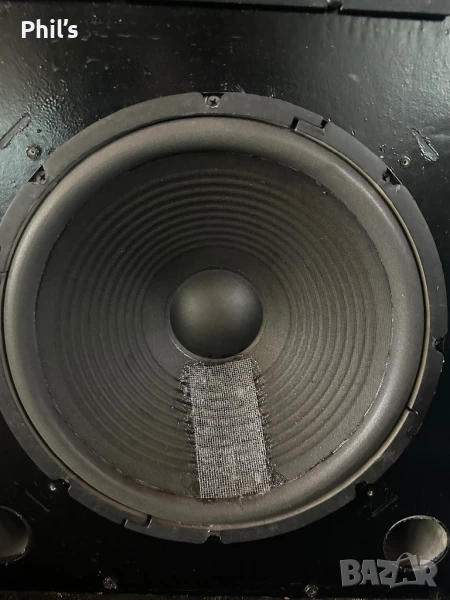

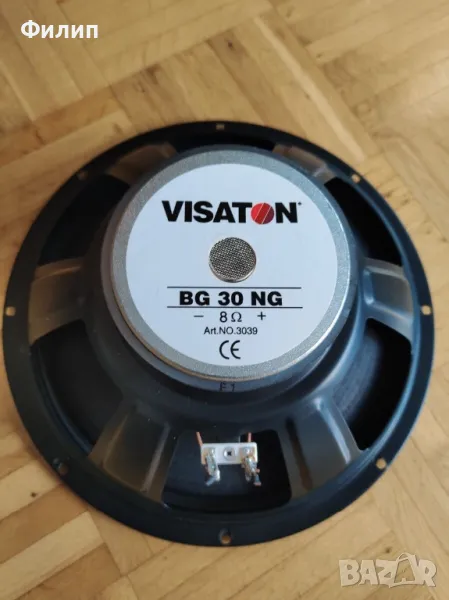

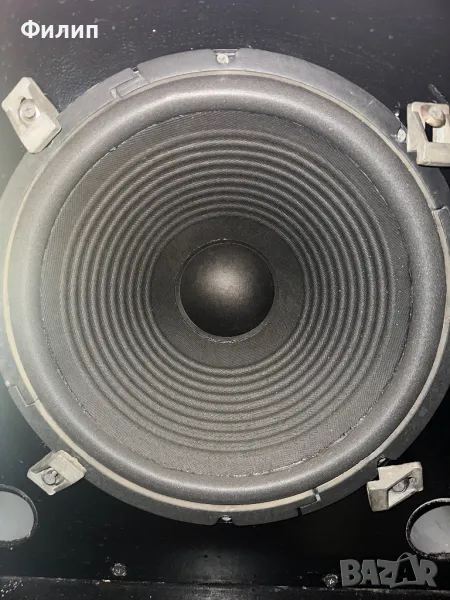

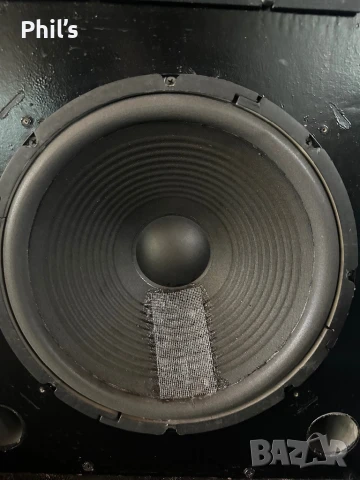

Продавам два броя басови говорители Visaton bg 30 ng 12” 8ohm
AMPLITUDE & IMPEDANCE FREQUENCY
Rated power 150 Watt
Maximum power 250 Watt
Nominal impedance 8 Ohm
Frequency response fu-5000 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 95 dB (1W/1m)
Excursion limit 14 mm
Resonance frequency fs 50 Hz
Magnetic induction 1.1 Tesla
Magnetic flux 1400 µWb
Height of front pole-plate 8 mm
Voice coil diameter 5 cm
Height of winding 1.4 cm
Cutout diameter 28 cm
Net weight 3 kg
D.C. resistance Rdc 6.5 Ohm
Mechanical Q factor Qms 3.13
Electrical Q factor Qes 0.7
Total Q factor Qts 0.58
Equivalent volume Vas 89 l
Effective piston area Sd 511 cm2
Dynamically moved mass Mms 40 g
Force factor Bxl 10.8 T · m
Inductance of the voice coil L 1.6 mH
