рядък и напълно функционален и обслужен модел
- Number of Transistors
- Semiconductors present.
- Main principle
- Audio-Amplification
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org

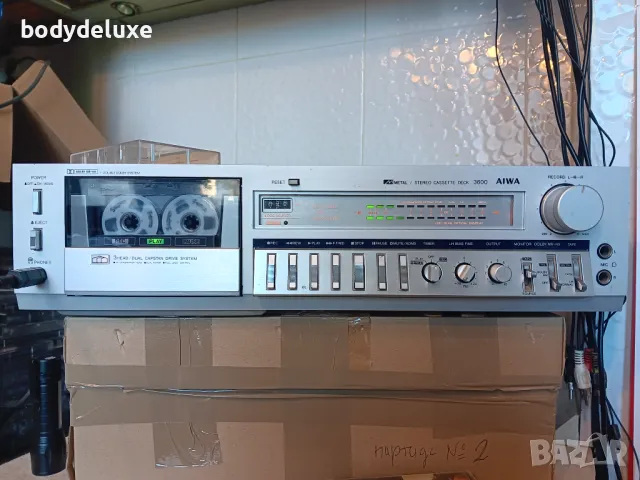

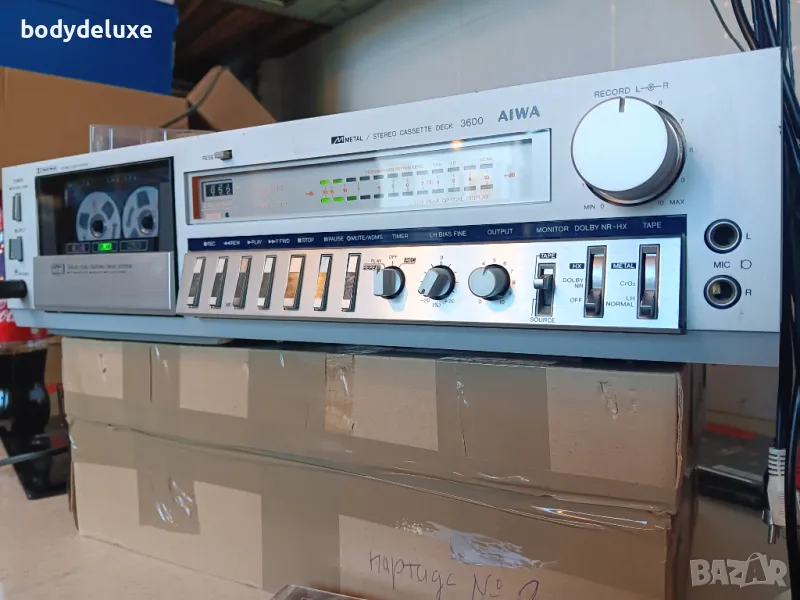

- Model: Stereo Cassette Deck AD-3600 - Aiwa Co. Ltd.; Tokyo
- Dimensions (WHD)
- 420 x 109 x 285 mm / 16.5 x 4.3 x 11.2 inch
- Notes
Frontloading 3-Head Stereo Cassette Deck with Dolby B, Double Dolby NR Circuits, MPX Filter, Dolby HX Pro and Metal Tape Capability.
3-Digit Mechanical Counter, Digital Peak-Reading Meters.
Bias Fine Tune.
ADMS (Automatic Demagnetizing System).
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s

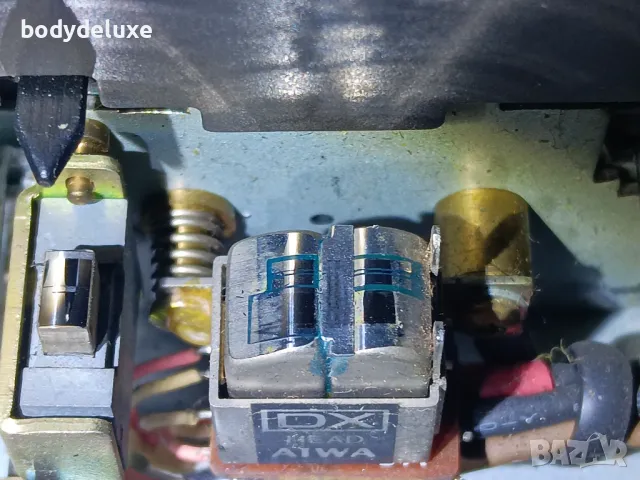

Heads: 1 x combination record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, HX
Frequency Response: 20Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 68dB (dolby B)
Wow and Flutter: 0.029%
Input: 50mV (line), 0.3mV (mic)
Output: 0.55V (line)
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Price in first year of sale
- 460.00 $
