SONY ST-JX2L аналогов тунер → Обява 48305325
SONY ST-JX2L аналогов тунер
Състояние
Използвано
Доставка
Лично предаване; Купувача
работи отлично
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM Stereo / FM-AM Tuner ST-JX2L - Sony Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 55 x 310 mm / 16.9 x 2.2 x 12.2 inch
- Notes

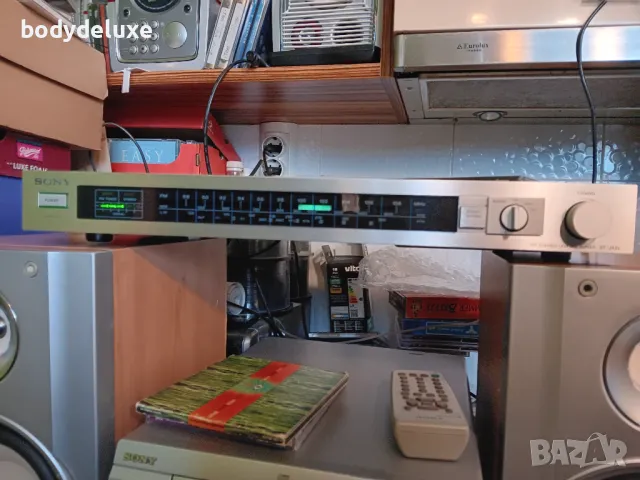

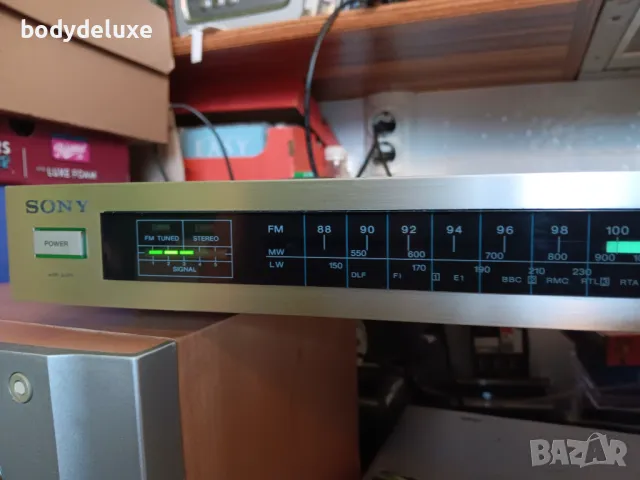

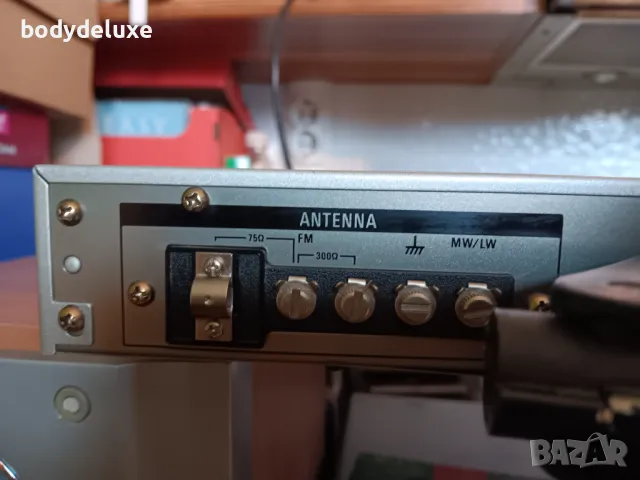

A hi-fi AM/FM stereo tuner with an analogue dial housed in a silver metal case. With a rotary tuning control, rotary Band switch (FM, MW, LW), 5 LED signal strength indicators, FM Tuned and Stereo indicators and a Stereo/Muting press button switch. On the rear, an adjustable AM ferrite rod antenna, terminals for AM and FM antennae and RCA phono line output sockets.
SpecificationSystemFM stereo, FM/AM superheterodyne tunerFM TUNER SECTIONTuning Range87.5MHz - 108MHzAntenna Terminals300Ω balanced, 75Ω unbalancedSensitivity at 46dB quieting(at 40kHz deviation)17.3dBf, 4µV (mono),38.3dBf, 45µV (stereo)Usable Sensitivity10.3dBf, 1.8µV (IHF)1.7µV (S/N 26dB, 40kHz deviation)Signal/Noise Ratio78dB (mono), 72dB (stereo)Harmonic Distortion (40kHz deviation)0.15% (mono), 0.25% (stereo) at 1kHzIM Distortion (40kHz deviation)0.15% (mono), 0.25% (stereo)Separation (at 1kHz)45dBFrequency Response40Hz - 12.5kHz ±0.5dB30Hz - 15kHz +0.5dB,-2dBSelectivity at 300kHz55dBCapture Ratio1.0dBAM Suppression Ratio54dBImage Response Ratio50dBIF Response Ratio90dBSpurious Response Ratio70dBMuting Thresholdapprox. 25.2dBf, 10µVOutput Level/Impedance750mV/1kΩ at 75kHz deviationMW/LW TUNER SECTIONTuning RangeMW: 522kHz - 1,602kHzLW: 150kHz - 350kHzAntennabuilt-in antenna, external antenna terminalUsable Sensitivitybuilt-in antennaMW: 200µV/m (at 1,000kHz)LW: 300µV/m (at 230kHz)external antenna terminalMW: 100µV (at 1,000kHz)LW: 100µV (at 230kHz)Signal/Noise Ratio54dBHarmonic Distortion0.3%Selectivity35dB (9kHz)Versions/Power RequirementsAEP model / 220V AC 50/60HzUK model / 240V AC 50/60HzPower Consumption: 12 W
Bereiche: FM: 87.5 - 108 MHz, MW: 522 - 1602 kHz, LW: 150 to 350 kHzKeramische ZF-FilterSchalter Stereo/Muting: Stellung Stereo aktiviert auch muting.zu Verstärker SONY TA-AX29 Transistors, 4 ICs, 15 Diodes.
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Mentioned in
- -- Original prospect or advert (1982 Sony Hi-Fi catalogue)
- Literature/Schematics (1)
- - - Manufacturers Literature (Sony Service manual for the ST-JX2L dated 1981)
