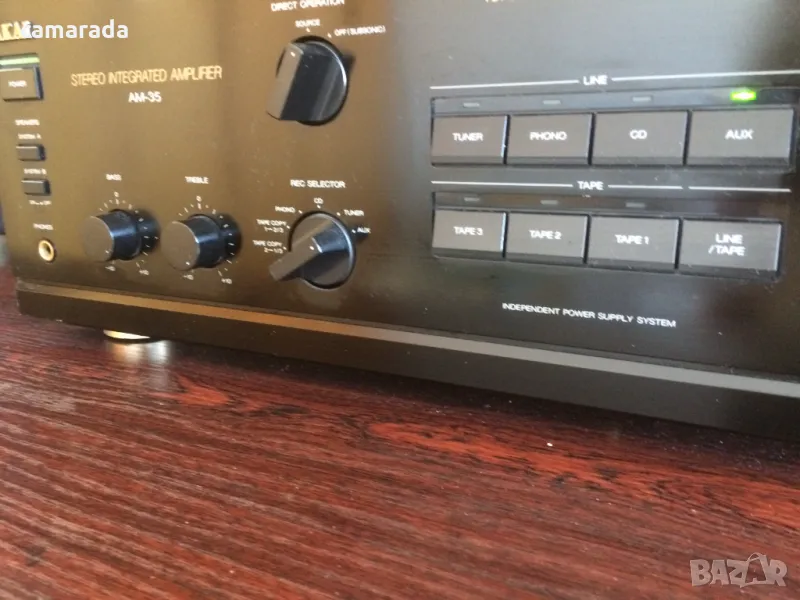

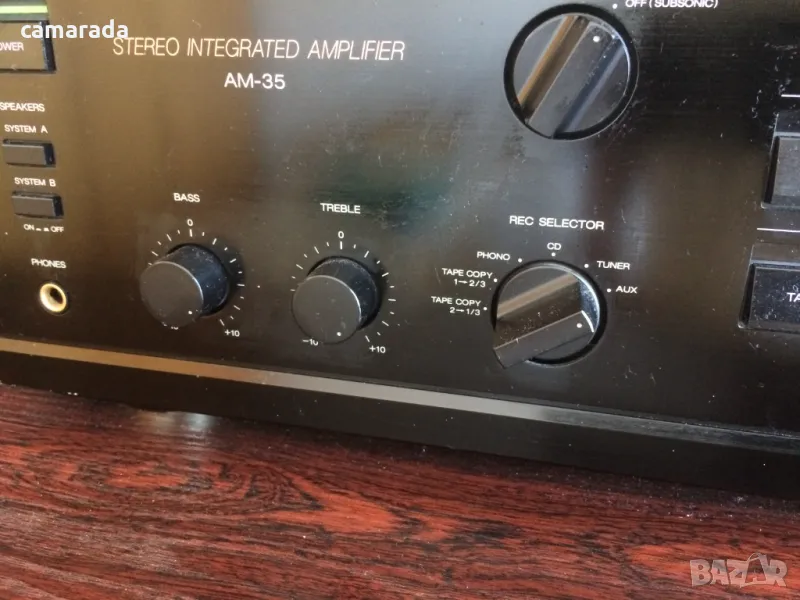

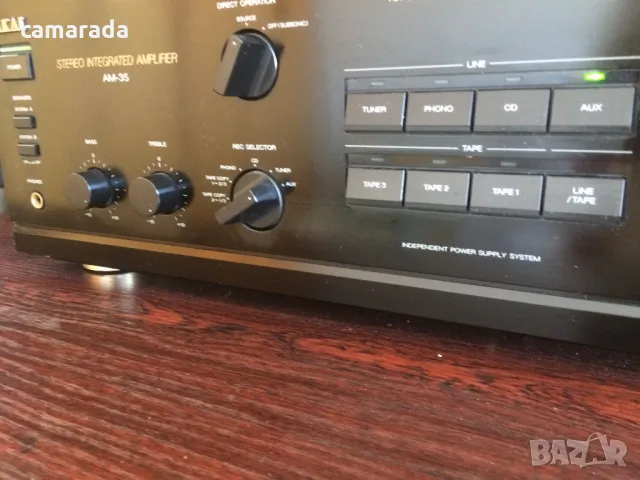

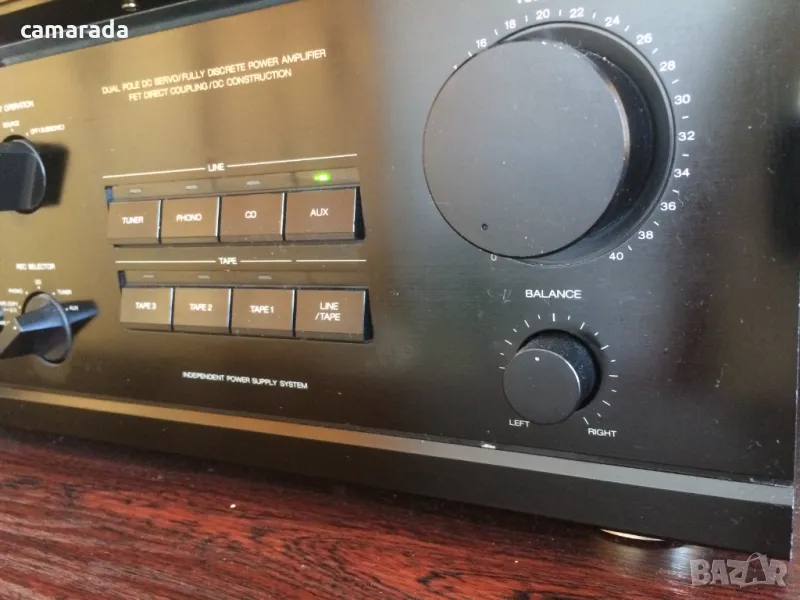

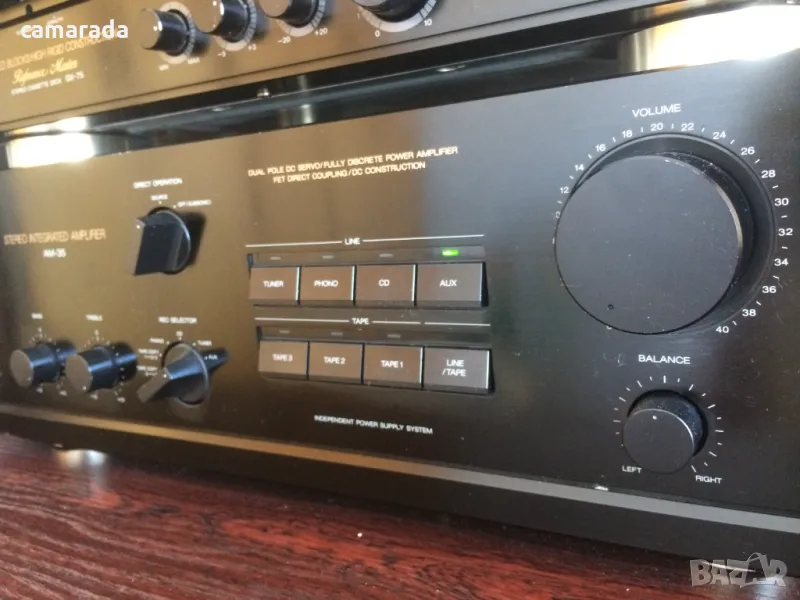

Integrated Amplifier Akai AM-35
Manufacturer:
Akai
- Model: AM-35
- Type: Integrated amplifier
- Years of manufacture: 1990 - 1992
- Made in: Japan
- Colors: Black, Silver
- Remote control: no
- Power consumption: 500 W max.
- Dimensions: 425 x 156 x 370 mm (WxHxD)
- Weight: 9.6 kg
- Original price approx.: 599 DM
Connections
Number of inputs:
- 3x Line In: 150 mV / 47 kOhm
3x Tape 1x Phono MM: 2,5 mV / 47 kOhm
Number of outputs:
- 3x Tape Out: 150 mV / 1 kOhm
- Headphones (6,3mm jack)
- 2 pairs of speakers
Technical Data
phono: 84 dB
- Stereo channel separation: 60 dB ( at 1 kHz), 50 dB (at 10 kHz).
Tone control:
Treble: ±8 dB (10 kHz)
- Loudness:
- High Filter:
- Low Filter (Subsonic): yes
- Mute:
- Direct/Line-Straight: yes
- Special Features
- Overload protection for loudspeakers
