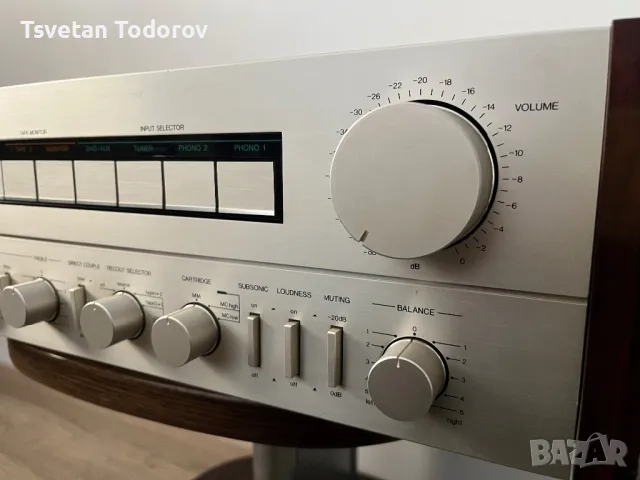

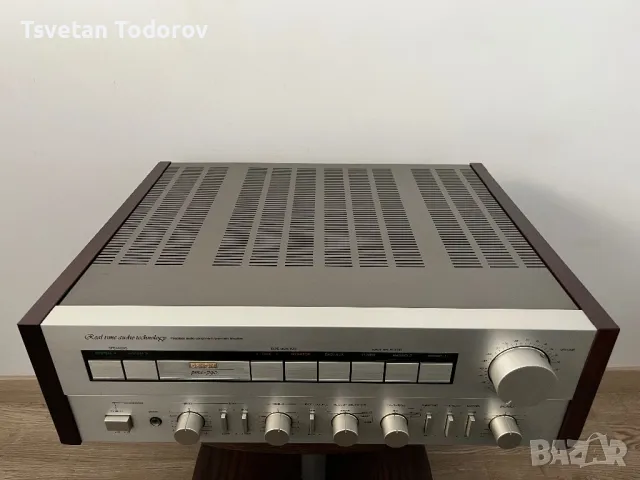

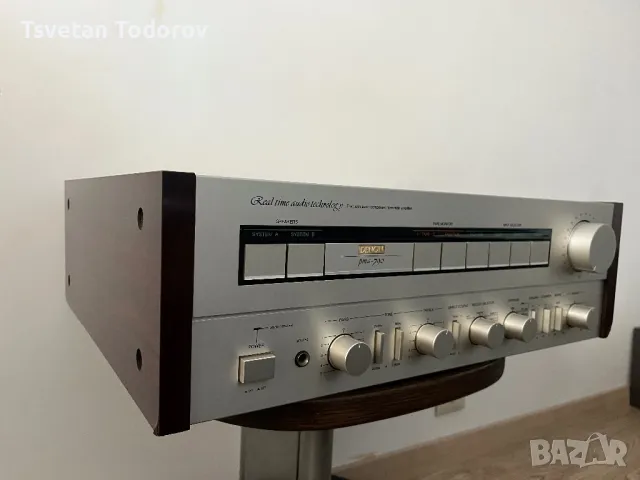

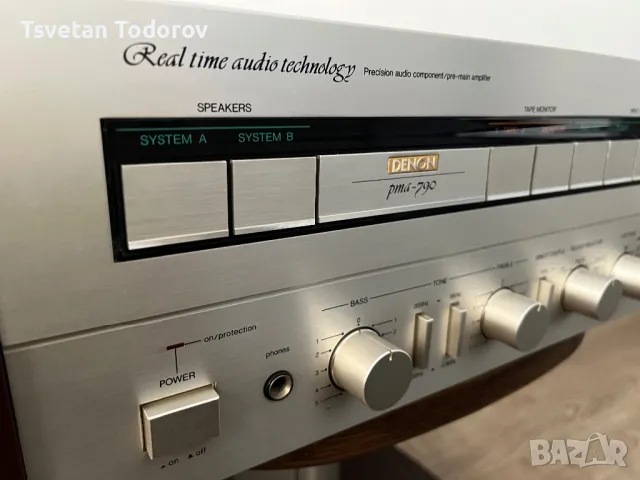

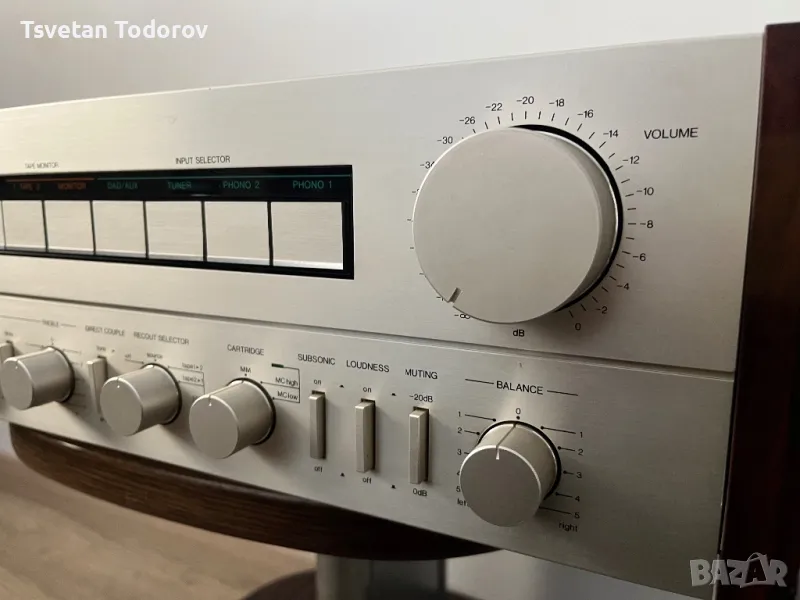

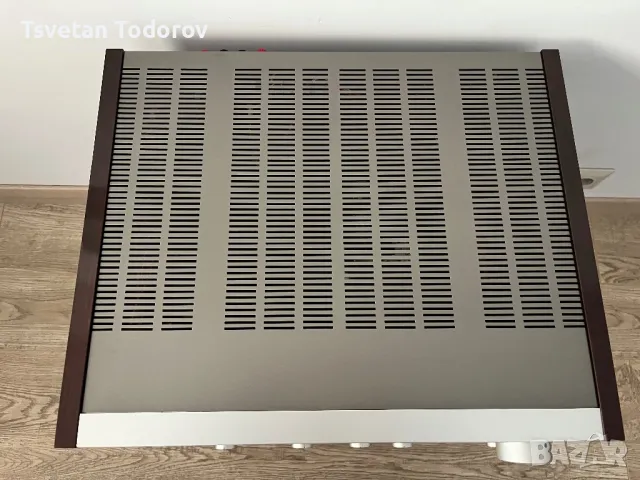

DENON PMA-790 → Обява 49411156

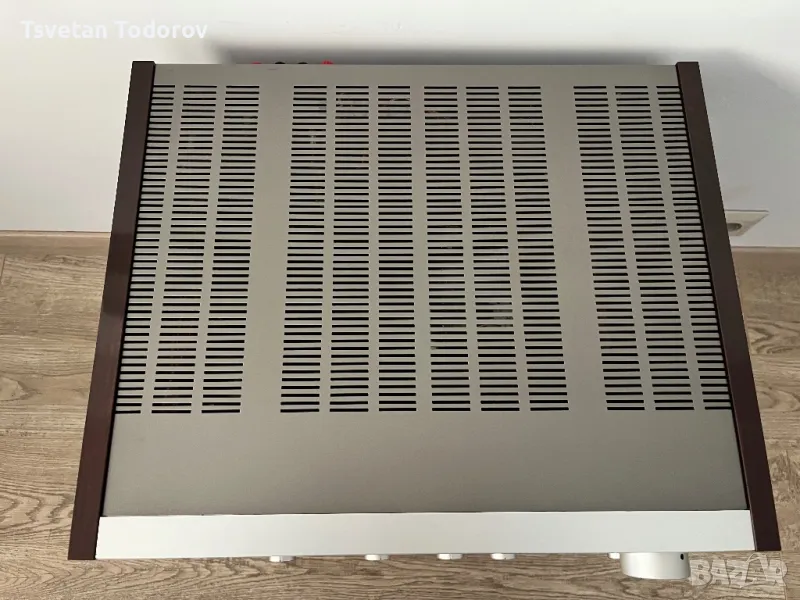

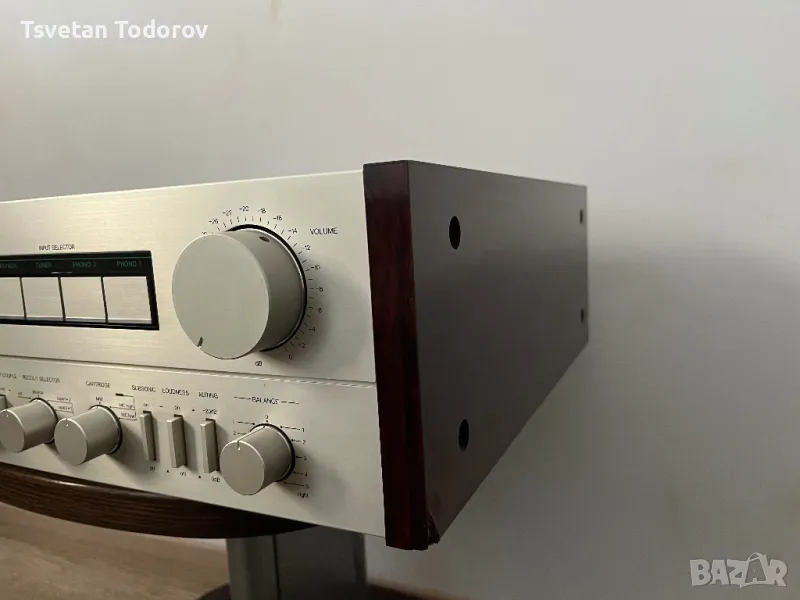

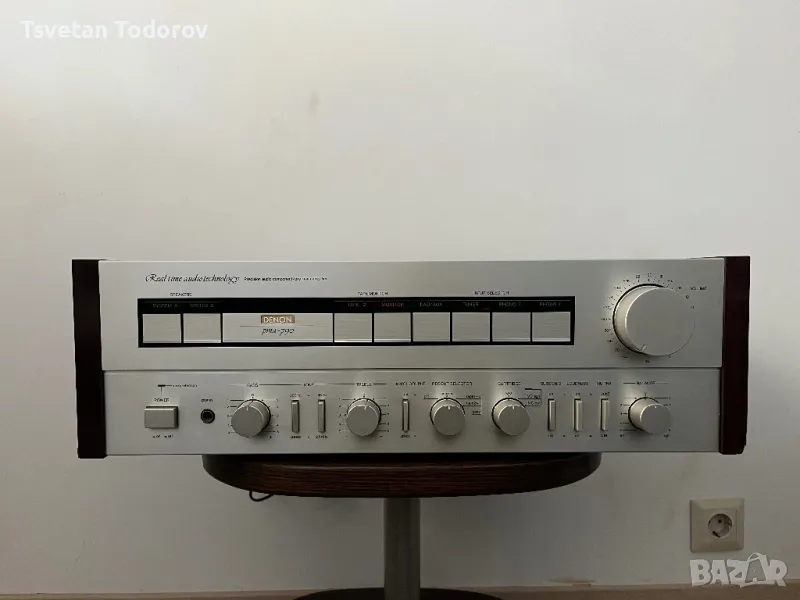

DENON PMA-790
Състояние
Използвано
Доставка
Купувача
Rating
Type Pre-main amplifier
Power Amplifier Unit
Circuit system Non-feedback 0 db power amplifier system
Rated output (both channel drive
Sine wave continuous output, 20 Hz to 20 kHz) 240W + 240W (4 Ω)
200W + 200W (6 Ω)
150W + 150W (8 Ω)
Input Sensitivity / Impedance 150mV/47k Ω
Total harmonic distortion factor 0.002% or Less (20 Hz to 20 kHz, Rated Output -3dB)
Intermodulation distortion factor (60 hz : 7 khz = 4 : 1) 0.0015% or Less (at Rated Output Equivalent Amplitude Output)
TIM distortion factor Below the measurement limit
Slew rate ± 350 V / μ s or more
Output Bandwidth (IHF, both channel drives) 5 Hz ~ 80 kHz (THD 0.015%)
Frequency response (at 1W output) 1 Hz ~ 300 kHz + 0 -3dB
Output Impedance (1 kHz) 0.1 Ω
Output terminal Speaker AORb : 4 Ω ~ 16 Ω
Speaker A + B : 8 Ω ~ 16 Ω
Headphone : 590mW/8 Ω
Preamplifier Section
Circuit system Wide-band equalizer system
Input Sensitivity / Impedance Phono MM : 2.5mV/47k Ω
Phono MC high : 0.25mV/100 Ω
Phono MC low : 0.125mV/100 Ω
Tuner, DAD/Aux, Tape : 150mV/47k Ω
Maximum Output / Rated Output 12V/150mV
RIAA Deviation (MC/MM) 20 Hz to 100 kHz ± 0.2 dB
Total Harmonic Distortion Factor (at 1 khz, 8 v output) Not more than 0.001%
SN ratio (IHF-A, input short circuit) Phono MM : 90 dB at 2.5 mV input
Phono MC : 75 dB at 0.25 mV input
Tuner, DAD/Aux, Tape : 110 dB at 150 mV input
Tone control Bass : ± 8 dB (50Hz/100Hz)
Treble : ± 8 dB (10kHz/20kHz)
Subsonic filter 18 Hz, 6dB/oct.
Muting -20dB
Loudness property Low frequency : + 7 dB (100 Hz)
High frequency : + 6 dB (10 kHz)
Pwer 100 VAC, 50Hz/60Hz
Power consumption (Electrical Appliance and Material Control Law) 380W
External Dimensions (including legs, knobs, terminals) Width 506x Height 168x Depth 451 mm
Weight 20kg
Type Pre-main amplifier
Power Amplifier Unit
Circuit system Non-feedback 0 db power amplifier system
Rated output (both channel drive
Sine wave continuous output, 20 Hz to 20 kHz) 240W + 240W (4 Ω)
200W + 200W (6 Ω)
150W + 150W (8 Ω)
Input Sensitivity / Impedance 150mV/47k Ω
Total harmonic distortion factor 0.002% or Less (20 Hz to 20 kHz, Rated Output -3dB)
Intermodulation distortion factor (60 hz : 7 khz = 4 : 1) 0.0015% or Less (at Rated Output Equivalent Amplitude Output)
TIM distortion factor Below the measurement limit
Slew rate ± 350 V / μ s or more
Output Bandwidth (IHF, both channel drives) 5 Hz ~ 80 kHz (THD 0.015%)
Frequency response (at 1W output) 1 Hz ~ 300 kHz + 0 -3dB
Output Impedance (1 kHz) 0.1 Ω
Output terminal Speaker AORb : 4 Ω ~ 16 Ω
Speaker A + B : 8 Ω ~ 16 Ω
Headphone : 590mW/8 Ω
Preamplifier Section
Circuit system Wide-band equalizer system
Input Sensitivity / Impedance Phono MM : 2.5mV/47k Ω
Phono MC high : 0.25mV/100 Ω
Phono MC low : 0.125mV/100 Ω
Tuner, DAD/Aux, Tape : 150mV/47k Ω
Maximum Output / Rated Output 12V/150mV
RIAA Deviation (MC/MM) 20 Hz to 100 kHz ± 0.2 dB
Total Harmonic Distortion Factor (at 1 khz, 8 v output) Not more than 0.001%
SN ratio (IHF-A, input short circuit) Phono MM : 90 dB at 2.5 mV input
Phono MC : 75 dB at 0.25 mV input
Tuner, DAD/Aux, Tape : 110 dB at 150 mV input
Tone control Bass : ± 8 dB (50Hz/100Hz)
Treble : ± 8 dB (10kHz/20kHz)
Subsonic filter 18 Hz, 6dB/oct.
Muting -20dB
Loudness property Low frequency : + 7 dB (100 Hz)
High frequency : + 6 dB (10 kHz)
Pwer 100 VAC, 50Hz/60Hz
Power consumption (Electrical Appliance and Material Control Law) 380W
External Dimensions (including legs, knobs, terminals) Width 506x Height 168x Depth 451 mm
Weight 20kg
