YAMAHA DSP-AX1 → Обява 49587383

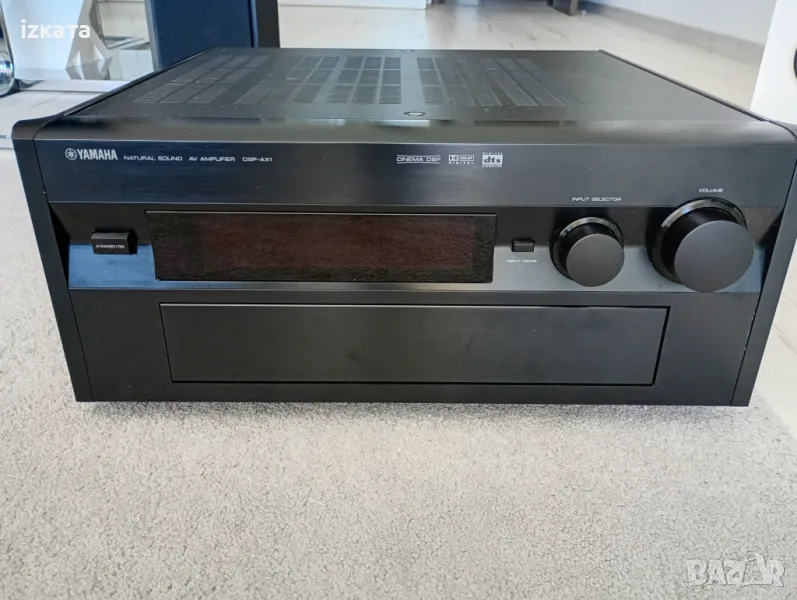

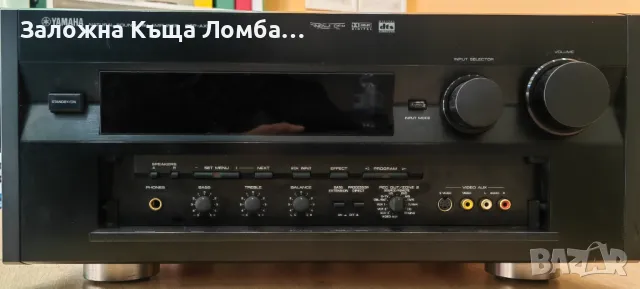

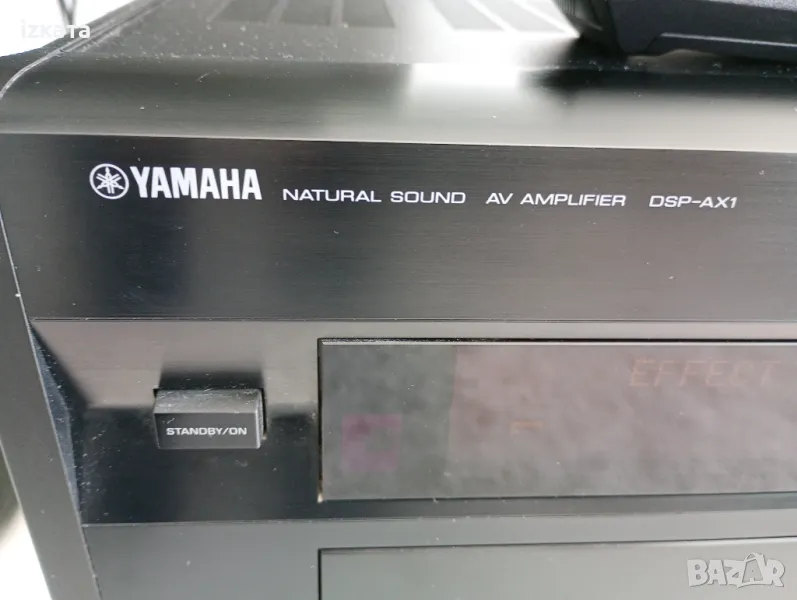

YAMAHA DSP-AX1
Състояние
Използвано
Доставка
Лично предаване

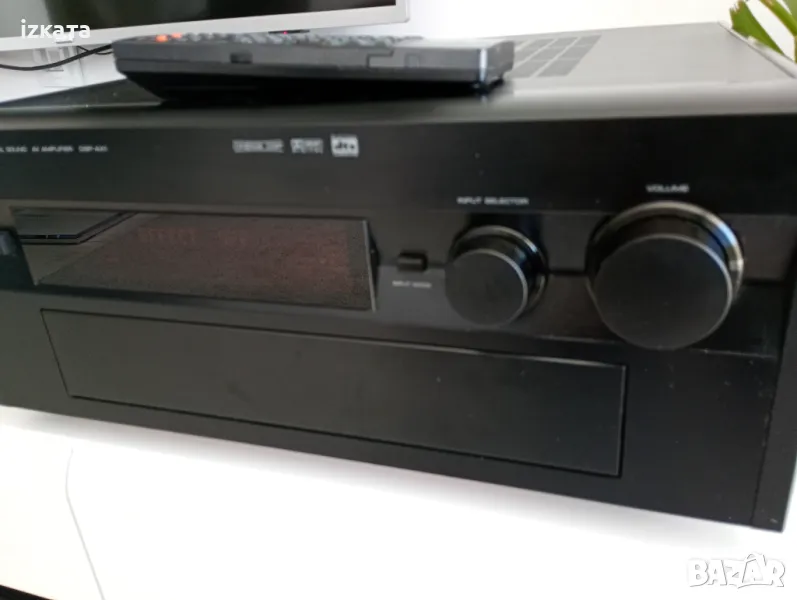

Перфектна работа,с оригинално дистанционно.
Model: DSP-AX 1
Type: A/V amplifier
Years of manufacture: 2000 - 2002
Made in: Japan
Color: Champagne, Black
Remote control: adaptive and programmable with illuminated buttons and input selection display
Power consumption: 550 W
Dimensions: 471 x 211 x 473 mm (WxHxD)
Weight: 28 kg
Original price approx.: 5'600 DM

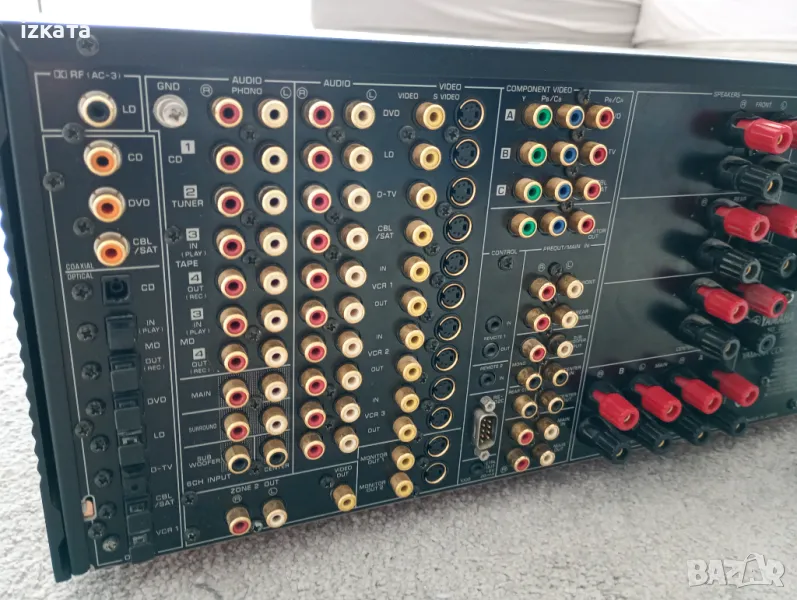

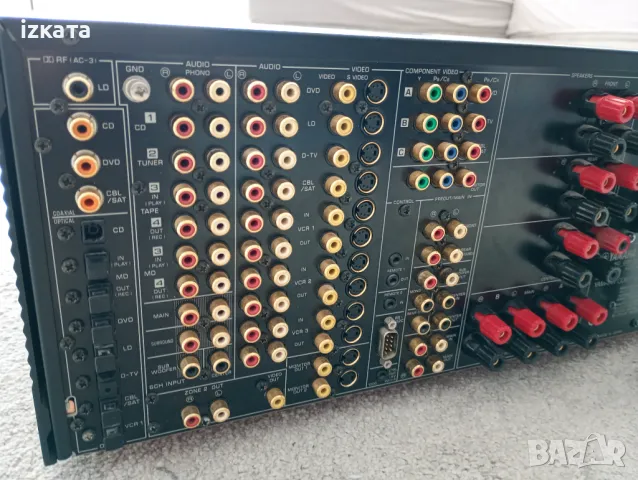

ConnectionsNumber of inputs: 12 pairs (audio)
Phono 2,5mV/47kOhm
CD, Tuner, Tape, MD, DVD, LD, D-TV, CBL/SAT, VCR 1,2,3, V-Aux 150mV/47kOhm
Dolby Digital RF (for Laserdisc)
3x Digital-Coaxial (freely assignable)
7x Digital-Optical (freely assignable)
6-channel analogue input 150mV/47kOhm
3x Component Video
10x Composite (Video)
10x S-Video

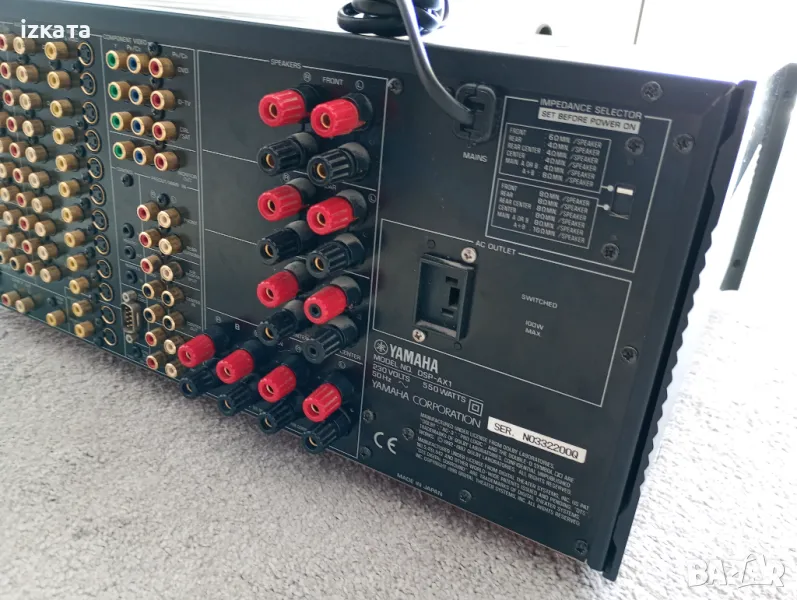

Number of outputs: 12 (audio + video)
Headphone 150mV/100Ohm
Main-Out 1V/1,2kOhm
8-channel analogue pre-outs
Mono/Split Subwoofer
1x multi-room
1x Digital-Optical
4x Analog-REC
1x Component
2x Composite (Video)
2x S-Video
RS-232C interface
Technical DataAudio
Channels: 8.2
DIN output power (4Ohm, 1kHz, 0.7% distortion)
Stereo: 2x 180W
Center: 180W
Rear: 2x 180W
Rear Center: 180W
Front Effect: 2x 60W
Output power (8Ohm, 20Hz to 20kHz, 0.015% distortion)
Stereo: 2x 110W
Center: 110W
Rear: 2x 110W
Rear Center: 110W
Front Effect: 2x 35W
Dynamic output power (IHF, stereo channels): 150/180/240/340W (8/6/4/2Ohm)
Output power according to IEC (stereo): 120W (8Ohm, 1kHz, 0.015% distortion)
Dynamic reserve: 1.3dB
44-bit processors (2x original Yamaha YSS-910)
Original Yamaha YSS-918 and YSS-908 for the different decoders
Burr-Brown 96KHz/24bit D/A converter (PCM-1704) for all 10 channels
Noise margin: 100dB
Circuit for linear damping factor
Attenuation factor: 200 (8Ohm, 20-20,000Hz)
Frequency response: 10-100,000Hz +0/-3 dB
Channel separation: 1kHz/70dB, 10kHz/60dB (at volume -30dB, terminated with 5.1kOhm).
Tone control:
Bass: +/- 10dB at 50Hz
Treble: +/- 10dB at 20Hz
Distortion factor: 0.005% or less
Bass extension: +6dB at 60Hz
Pure-Direct/Line-Straight
VideoTV standard: PAL
External voltage spacing: 50dB or more
Frequency response: 5Hz-10MHz -3dB
Max. Input level: 1.5V s-s
Sound FormatsDolby ProLogic, Dolby Digital-EX, DTS-ES
Special FeaturesSeparable pre- and power amplifiers

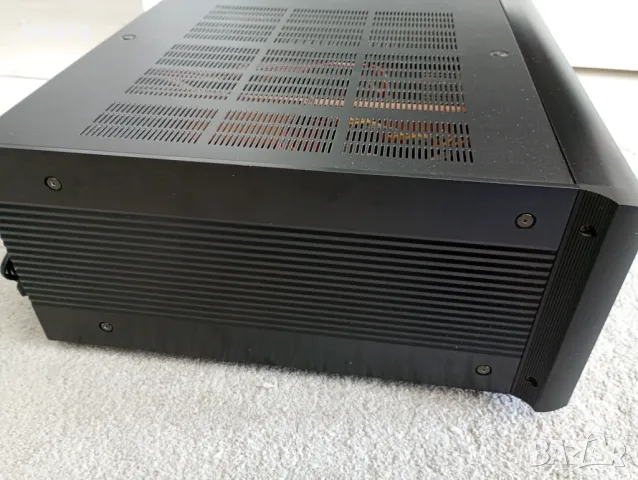

Massive resonance-free aluminum heat sinks
Copper coated bottom plate
Shielding of the DSP's
Cinema DSP's with 2 front effect channels to simulate room height
Center and rear center equalizers (5 bands: 100 Hz, 300 Hz, 1 kHz, 3 kHz and 10 kHz)
Equalizer consisting of one treble equalizer and one parametric equalizer each for four speaker groups:
Stereo and center speakers
effect speakers surround speakers
Rear center speakers
Low Frequency Test function (selectable by octave between 35-250Hz)
On-screen menu

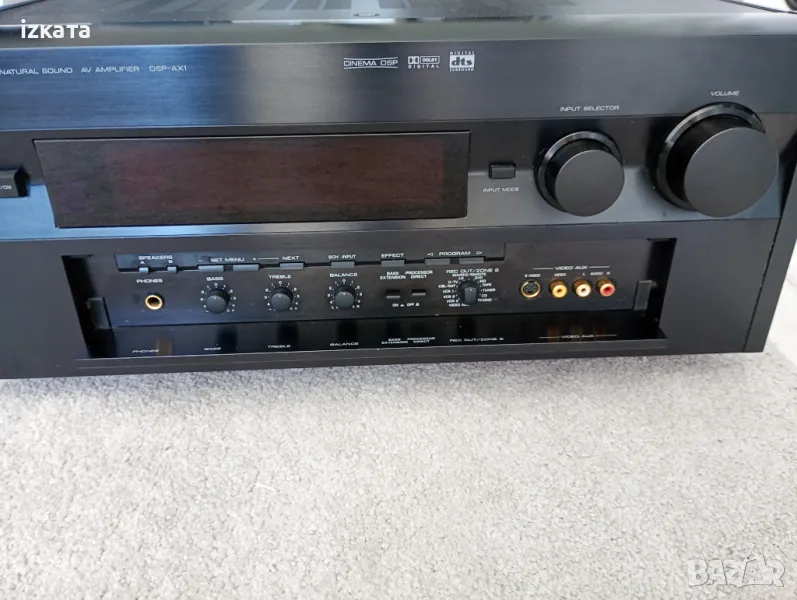

Oil-damped solid metal door
Model: DSP-AX 1
Type: A/V amplifier
Years of manufacture: 2000 - 2002
Made in: Japan
Color: Champagne, Black
Remote control: adaptive and programmable with illuminated buttons and input selection display
Power consumption: 550 W
Dimensions: 471 x 211 x 473 mm (WxHxD)
Weight: 28 kg
Original price approx.: 5'600 DM
ConnectionsNumber of inputs: 12 pairs (audio)
Phono 2,5mV/47kOhm
CD, Tuner, Tape, MD, DVD, LD, D-TV, CBL/SAT, VCR 1,2,3, V-Aux 150mV/47kOhm
Dolby Digital RF (for Laserdisc)
3x Digital-Coaxial (freely assignable)
7x Digital-Optical (freely assignable)
6-channel analogue input 150mV/47kOhm
3x Component Video
10x Composite (Video)
10x S-Video
Number of outputs: 12 (audio + video)
Headphone 150mV/100Ohm
Main-Out 1V/1,2kOhm
8-channel analogue pre-outs
Mono/Split Subwoofer
1x multi-room
1x Digital-Optical
4x Analog-REC
1x Component
2x Composite (Video)
2x S-Video
RS-232C interface
Technical DataAudio
Channels: 8.2
DIN output power (4Ohm, 1kHz, 0.7% distortion)
Stereo: 2x 180W
Center: 180W
Rear: 2x 180W
Rear Center: 180W
Front Effect: 2x 60W
Output power (8Ohm, 20Hz to 20kHz, 0.015% distortion)
Stereo: 2x 110W
Center: 110W
Rear: 2x 110W
Rear Center: 110W
Front Effect: 2x 35W
Dynamic output power (IHF, stereo channels): 150/180/240/340W (8/6/4/2Ohm)
Output power according to IEC (stereo): 120W (8Ohm, 1kHz, 0.015% distortion)
Dynamic reserve: 1.3dB
44-bit processors (2x original Yamaha YSS-910)
Original Yamaha YSS-918 and YSS-908 for the different decoders
Burr-Brown 96KHz/24bit D/A converter (PCM-1704) for all 10 channels
Noise margin: 100dB
Circuit for linear damping factor
Attenuation factor: 200 (8Ohm, 20-20,000Hz)
Frequency response: 10-100,000Hz +0/-3 dB
Channel separation: 1kHz/70dB, 10kHz/60dB (at volume -30dB, terminated with 5.1kOhm).
Tone control:
Bass: +/- 10dB at 50Hz
Treble: +/- 10dB at 20Hz
Distortion factor: 0.005% or less
Bass extension: +6dB at 60Hz
Pure-Direct/Line-Straight
VideoTV standard: PAL
External voltage spacing: 50dB or more
Frequency response: 5Hz-10MHz -3dB
Max. Input level: 1.5V s-s
Sound FormatsDolby ProLogic, Dolby Digital-EX, DTS-ES
Special FeaturesSeparable pre- and power amplifiers
Massive resonance-free aluminum heat sinks
Copper coated bottom plate
Shielding of the DSP's
Cinema DSP's with 2 front effect channels to simulate room height
Center and rear center equalizers (5 bands: 100 Hz, 300 Hz, 1 kHz, 3 kHz and 10 kHz)
Equalizer consisting of one treble equalizer and one parametric equalizer each for four speaker groups:
Stereo and center speakers
effect speakers surround speakers
Rear center speakers
Low Frequency Test function (selectable by octave between 35-250Hz)
On-screen menu
Oil-damped solid metal door
Преглеждания: 48
Другите търсят също
Популярни търсения:
★★★★★ yamaha
Цена:
800 лв
