Генератор 400 kVa Scania DSC 14 Reconditioned → Обява 50837565
Обявата не е активна!

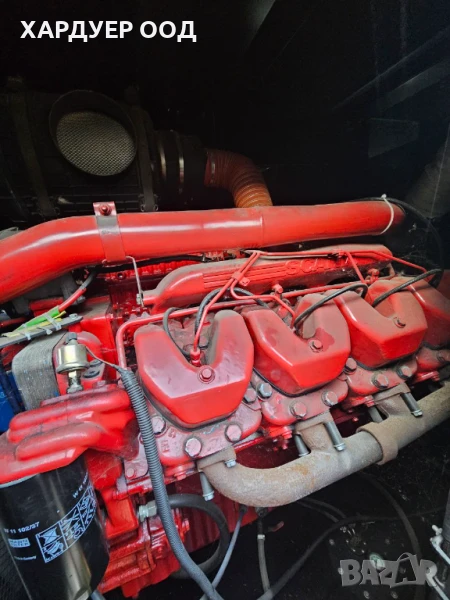

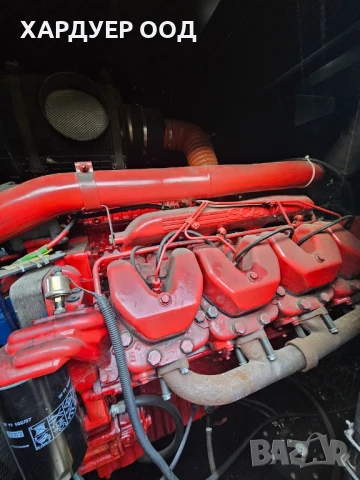

Генератор 400 kVa Scania DSC 14 Reconditioned, 17 000 €
гр. София, Гео Милев
Изтекла/Деактивирана на 01 декември 2025г. в 14:04 ч.
Състояние
Използвано
Доставка
Лично предаване; Купувача
Продава се дизелов генератор Scania 400 kVa - генератора е на около 50 часа работа. Като бонус получавате 30% гориво ( около 200 л. ) което е в него. Гаранцията е 6 месеца при правилен монтаж и експлоатация.Обаждания се приемат само в работни дни от 09:00 до 18:00 ч. През почивните дни, напишете съобщение, ще върнем отговор максимално бързо.
ENGINE SCANIA ISO: 8528-1
===
Engine model: DSC 14 Reconditioned
Number cylinders: 8, two valves each
Cylinder arrangement: V-type
Valves per cylinder: 2
Type diesel: 4 stroke
Injection system: Bosch Injection Pump
Speed governor: Electronic
Induction System: Turbocharged aftercooled air/air
Total displacement liter: 14,2
Block coolant heater 1,5kW: included
24V Battery and Automatic 220V-24V/5A charger: included
Mobile and very hot features protection: included
First oil and coolant filling: included
Fuel consumption at: Prime, l/h (g/kWh) at 1500rpm
100% load l/h (g/kWh): 100,6 (201,7)
80% load l/h (g/kWh): 85,2 (199,7)
50% load l/h (g/kWh): 60,5 (205,3)
LUBRICATION
===
Oil sump capacity: 30 L
Oil system capacity including filters: 35 L
Oil specification: ACEA E3/E5/E7
Oil consumption, % of fuel: < 0,2
SOUNDPROOF CANOPY 68dB
===
Dims. mm: 4000/1450/H-2
Tank: 600 L
COOLING SYSTEM
===
Type: liquid, cooling with air-blast radiator
Recommanded coolant: water + 50%paraflu 11
Coolant capacity L, (motor only): 67, ( 19,5)
Fan air flow: 6,8 m3/s
Shutdown switch setting, °C: 103
INTAKE SYSTEM
===
Air consumption at 100% of load m3/h (Kg/h): 1576 (1812)
Air intake restriction clean filter kPa (mbar): 2 (20)
Air intake restriction dirty filter kPa (mbar): 5 (50)
ALTERNATOR ( MECC ALTE ECO40-1S4B, 400V, 50 Hz, 1500rpm. )
===
Voltage: 400/230V (3phase)
Speed: 1.500 rpm
Frequency: 50 Hz.
Bearings: 1
Insulation : CLASS H
Rating : 400 kVA
Rated current: 635 A
Protection: IP 23
Voltage Gain: 10%
Deviation of short wave: 5%
Over-speed: 2.250 rpm
Efficience coс ф 0,8: 94 %
Efficience cos ф 1 : 95,3 %
Short circuit ratio: SCR 0.4
CONTROL AND PROTECTION
===
AMF auto start/stop controller BLU500 or similar
- Engine speed (rpm) optional.
- Oil pressure.(Bar)
- Engine temperature (ºC)
- Battery voltage (V)
- Battery charging alternator voltage.
- Preventive alarm service.
- Operating hour counter.
- 3-phase real measurement A, V, kW, kVA, cos ф, Hz
- 3-phase mains Volts L1-L2, L2-L3, L1-L3, Hz
GENSET STOPPAGE ALARMS:
- Low Oil pressure Engine
- High temperature.
- Failure to start.
- Faulty batteries.
- Emergency stop.
- over speed and Low speed.
- Low fuel level (contact)
- over frequency
- Low frequency.
- over load.
- over voltage and Low voltage
ELECTRICAL EQUIPMENT
===
Generator Circuit Breaker 3 pole: Automatic, magneto-thermal 630 A
Automatic Transfer Switch: 630 A
Voltage (negative to ground): 24 V
Starter motor DENSO: 7.8 kW
Starting batteries: 2x180 Ah /min 1000A
Alternator charge 90A: 28 V
Block coolant heater 50 °C: 1,5kW/230V
WARRANTY:
===
6 months
ENGINE SCANIA ISO: 8528-1
===
Engine model: DSC 14 Reconditioned
Number cylinders: 8, two valves each
Cylinder arrangement: V-type
Valves per cylinder: 2
Type diesel: 4 stroke
Injection system: Bosch Injection Pump
Speed governor: Electronic
Induction System: Turbocharged aftercooled air/air
Total displacement liter: 14,2
Block coolant heater 1,5kW: included
24V Battery and Automatic 220V-24V/5A charger: included
Mobile and very hot features protection: included
First oil and coolant filling: included
Fuel consumption at: Prime, l/h (g/kWh) at 1500rpm
100% load l/h (g/kWh): 100,6 (201,7)
80% load l/h (g/kWh): 85,2 (199,7)
50% load l/h (g/kWh): 60,5 (205,3)
LUBRICATION
===
Oil sump capacity: 30 L
Oil system capacity including filters: 35 L
Oil specification: ACEA E3/E5/E7
Oil consumption, % of fuel: < 0,2
SOUNDPROOF CANOPY 68dB
===
Dims. mm: 4000/1450/H-2
Tank: 600 L
COOLING SYSTEM
===
Type: liquid, cooling with air-blast radiator
Recommanded coolant: water + 50%paraflu 11
Coolant capacity L, (motor only): 67, ( 19,5)
Fan air flow: 6,8 m3/s
Shutdown switch setting, °C: 103
INTAKE SYSTEM
===
Air consumption at 100% of load m3/h (Kg/h): 1576 (1812)
Air intake restriction clean filter kPa (mbar): 2 (20)
Air intake restriction dirty filter kPa (mbar): 5 (50)
ALTERNATOR ( MECC ALTE ECO40-1S4B, 400V, 50 Hz, 1500rpm. )
===
Voltage: 400/230V (3phase)
Speed: 1.500 rpm
Frequency: 50 Hz.
Bearings: 1
Insulation : CLASS H
Rating : 400 kVA
Rated current: 635 A
Protection: IP 23
Voltage Gain: 10%
Deviation of short wave: 5%
Over-speed: 2.250 rpm
Efficience coс ф 0,8: 94 %
Efficience cos ф 1 : 95,3 %
Short circuit ratio: SCR 0.4
CONTROL AND PROTECTION
===
AMF auto start/stop controller BLU500 or similar
- Engine speed (rpm) optional.
- Oil pressure.(Bar)
- Engine temperature (ºC)
- Battery voltage (V)
- Battery charging alternator voltage.
- Preventive alarm service.
- Operating hour counter.
- 3-phase real measurement A, V, kW, kVA, cos ф, Hz
- 3-phase mains Volts L1-L2, L2-L3, L1-L3, Hz
GENSET STOPPAGE ALARMS:
- Low Oil pressure Engine
- High temperature.
- Failure to start.
- Faulty batteries.
- Emergency stop.
- over speed and Low speed.
- Low fuel level (contact)
- over frequency
- Low frequency.
- over load.
- over voltage and Low voltage
ELECTRICAL EQUIPMENT
===
Generator Circuit Breaker 3 pole: Automatic, magneto-thermal 630 A
Automatic Transfer Switch: 630 A
Voltage (negative to ground): 24 V
Starter motor DENSO: 7.8 kW
Starting batteries: 2x180 Ah /min 1000A
Alternator charge 90A: 28 V
Block coolant heater 50 °C: 1,5kW/230V
WARRANTY:
===
6 months
